Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Dome Lamp Bulb & Socket
    GM1946892Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Push the dome lamp bulb (1) into the dome lamp bulb socket (2).
  1. Install the dome lamp bulb (1) to the dome lamp bulb socket (2).

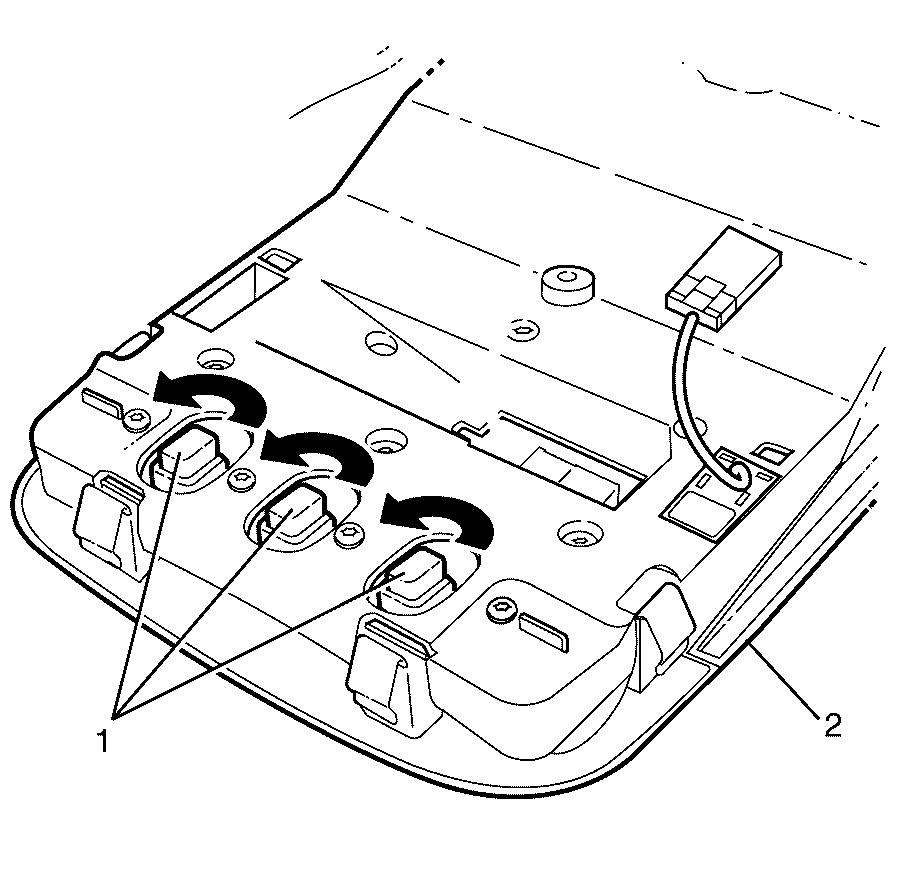

    2. Fig 2: Identifying Dome Lamp Bulb Socket & Assembly
    GM2133640Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Rotate the dome lamp bulb socket (1) clockwise to install.
  2. Install the dome lamp bulb socket (1) to the dome lamp assembly (2).
  3. Install the dome lamp assembly. Refer to Dome Lamp Replacement .
  4. Connect the battery ground cable. Refer to Battery Negative Cable Disconnection and Connection .
  5. Check all vehicle lamps for correct operation.
