Removal Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the battery ground cable. Refer to Battery Negative Cable Disconnection and Connection .
    2. CAUTION: Refer to Safety Glasses Caution .
    CAUTION: Refer to Vehicle Lifting Caution .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the air deflector from the front end of the vehicle. Refer to Front Air Deflector Replacement .

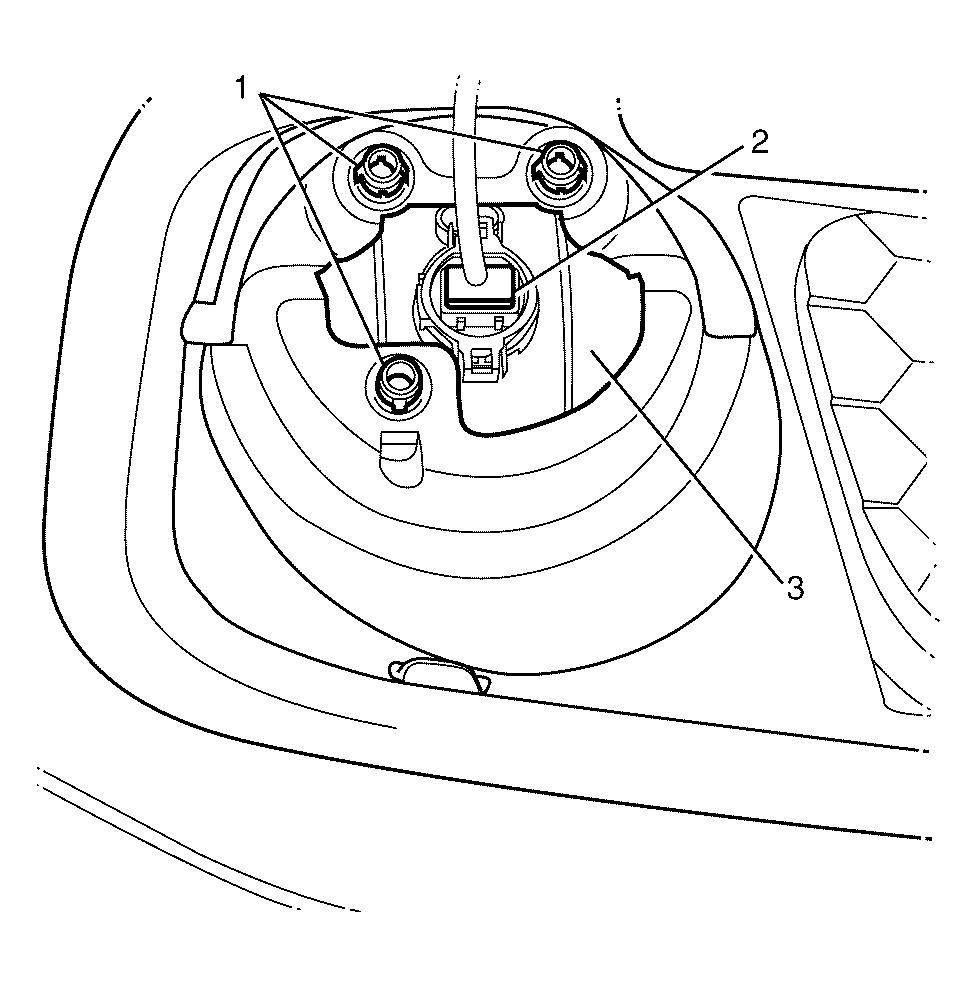

    4. Fig 1: Identifying Front Fog Lamp Assembly To Front Fascia Retaining Clips
    GM2040590Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the front fog lamp assembly electrical connector (2).
    5. IMPORTANT: Press the front fog lamp assembly to front fascia retaining clips (1) inward and push the front fog lamp assembly (3) forward to detach.
  5. Detach the front fog lamp assembly to front fascia retaining clips (1).

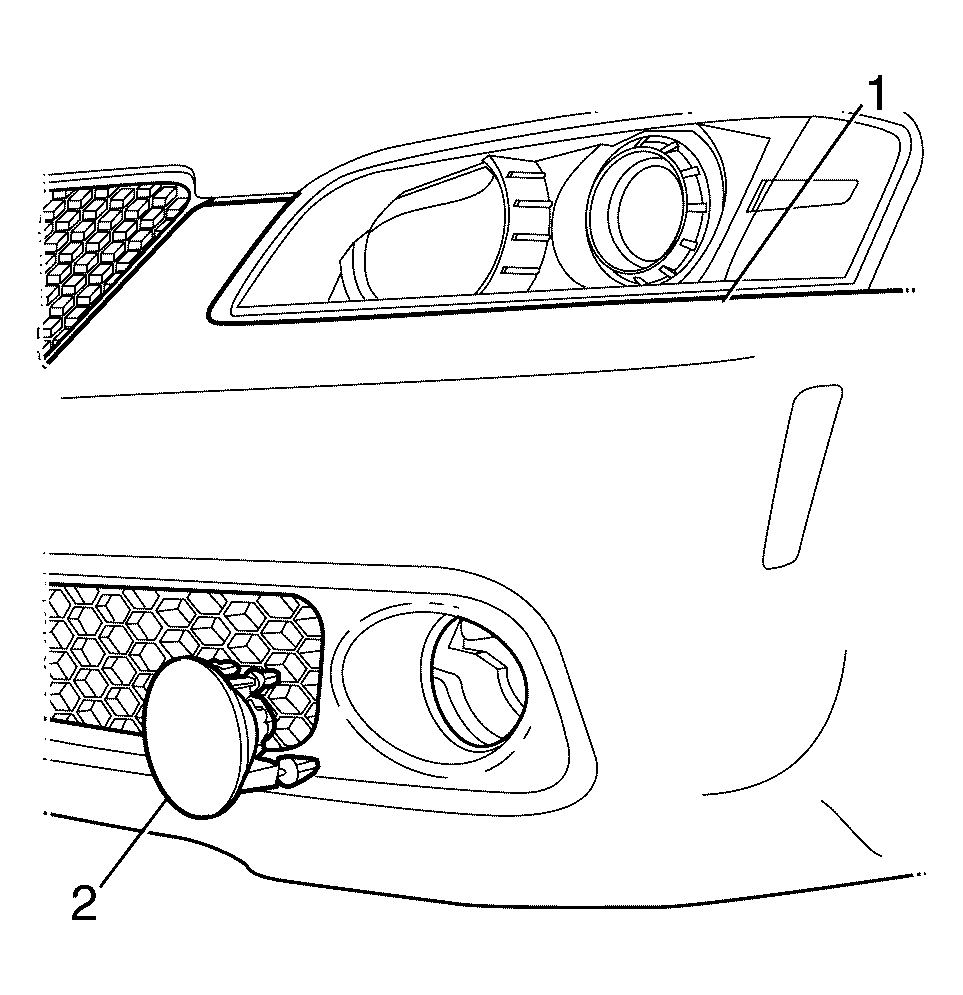

    6. Fig 2: Identifying Front Fog Lamp Assembly & Front Fascia
    GM2040591Courtesy of GENERAL MOTORS CORP.
  6. Remove the front fog lamp assembly (2) from the front fascia (1).
