Installation Procedure

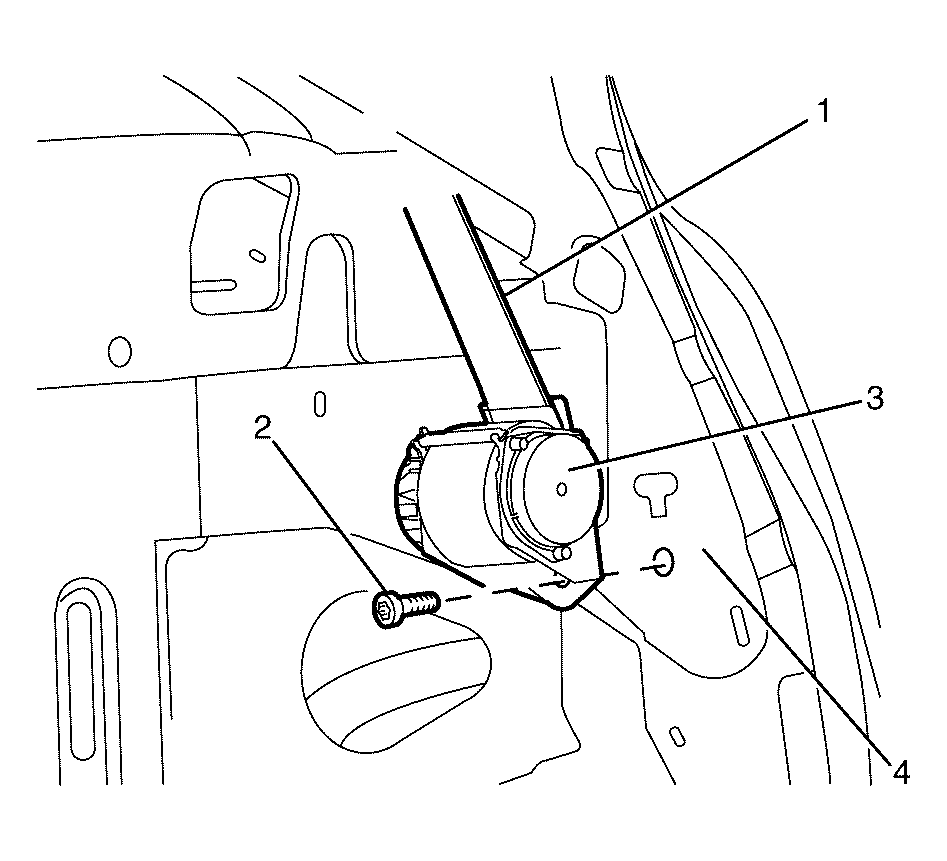

    Fig 1: View Of Rear Seat Belt Assembly
    GM2039780Courtesy of GENERAL MOTORS CORP.
    NOTE: Lower the seat belt retractor (3) at an angle of approximately 30 degrees to attach the seat belt retractor onto the body slot (4).
  1. Install the rear seat belt assembly (1).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the rear seat belt retractor to body retaining bolt (2) and tighten to 43 N.m (31 lb ft).

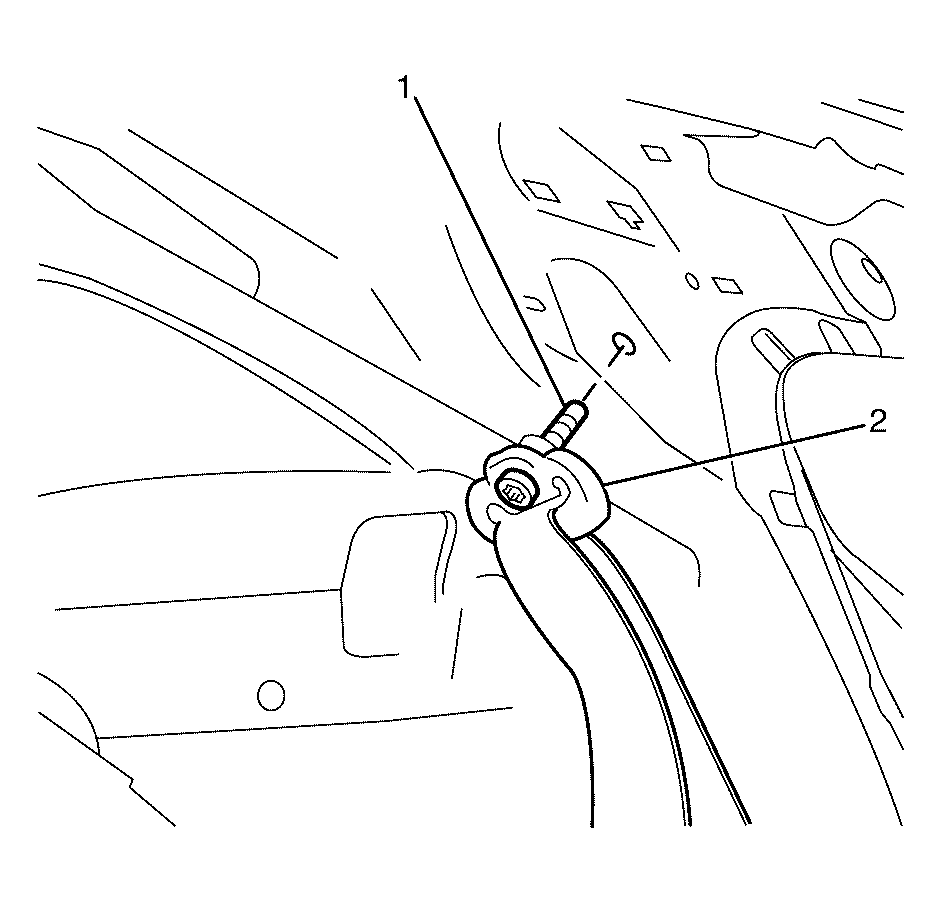

    3. Fig 2: Identifying Rear Seat Belt Guide Assembly
    GM2048215Courtesy of GENERAL MOTORS CORP.
  3. Install the rear seat belt guide assembly (2).
  4. Install the seat belt guide assembly to body retaining bolt (1) and tighten to 43 N.m (32 lb ft).
    5. Fig 3: Identifying Rear Seat Belt Lower Anchor
    GM2048216Courtesy of GENERAL MOTORS CORP.
  5. Install the rear seat belt lower anchor (2).
  6. Install the rear seat belt lower anchor to body retaining bolt (1) and tighten to 43 N.m (31 lb ft).
  7. Install the upper rear quarter trim panel. Refer to Quarter Upper Trim Panel Replacement .
  8. Install the rear seat back. Refer to Rear Seat Back Cushion Replacement .
  9. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement .
