Installation Procedure

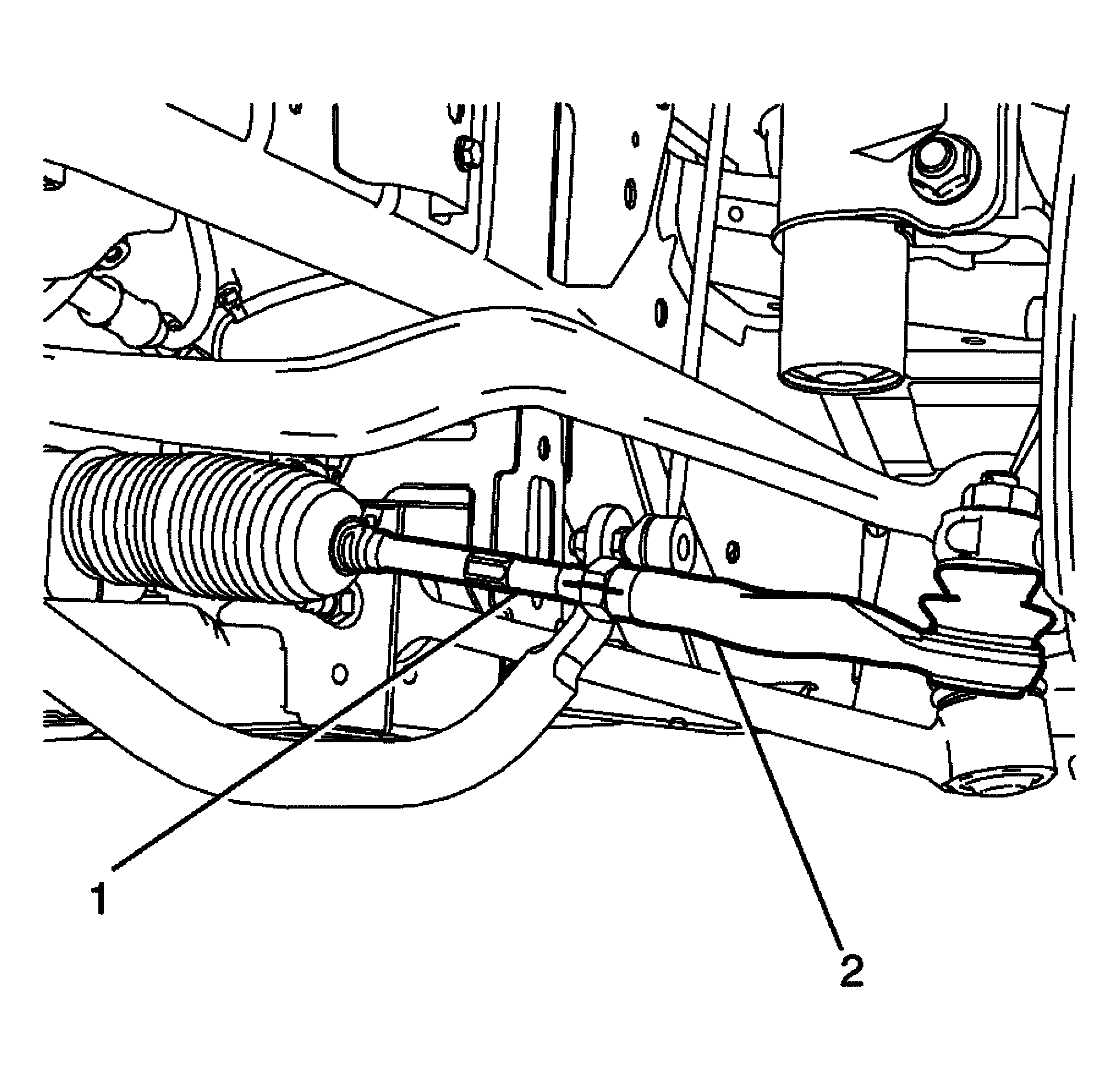

Fig 1: Identifying Tie Rod End & Steering Gear Assembly

Courtesy of GENERAL MOTORS CORP.

Install the tie rod end (2) to the steering gear assembly (1).

Fig 2: Identifying Tie Rod End & Lock Nut

Courtesy of GENERAL MOTORS CORP.

NOTE: To minimise the wheel alignment procedure the tie rod end (3) must be installed the distance (A) as was noted in the removal procedure.

NOTE: To minimise the wheel alignment procedure align the reference mark (6) on the tie rod end (3) and the reference mark (6) on the tie rod end lock nut (2).

NOTE: The tie rod end lock nut (2) is not to be fully tightened at this stage.

Connect the tie rod end (3) to the steering gear assembly (1)
Connect the tie rod end (3) to the steering knuckle (4).

CAUTION: Refer to Fastener Caution .

Install the NEW tie rod end to steering knuckle retaining nut (5) and tighten to 70 N.m (52 lb ft).
Install the front wheel. Refer to Tire and Wheel Removal and Installation Tire and Wheel Removal and Installation.
Lower the vehicle.
Bounce the vehicle several times to settle the suspension.
Check and adjust the wheel alignment. Refer to Wheel Alignment Measurement in Wheel Alignment.

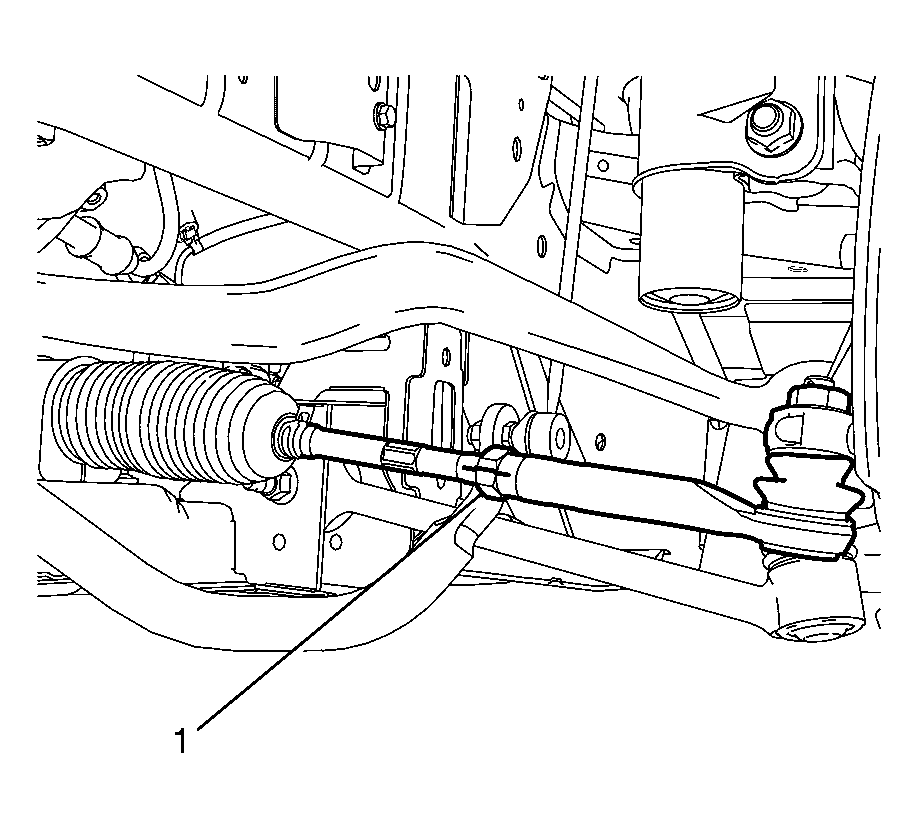

Fig 3: View Of Tie Rod End Lock Nut

Courtesy of GENERAL MOTORS CORP.

Tighten the tie rod end lock nut (1) to 50 N.m (37 lb ft).
