Antilock Brake System Schematics

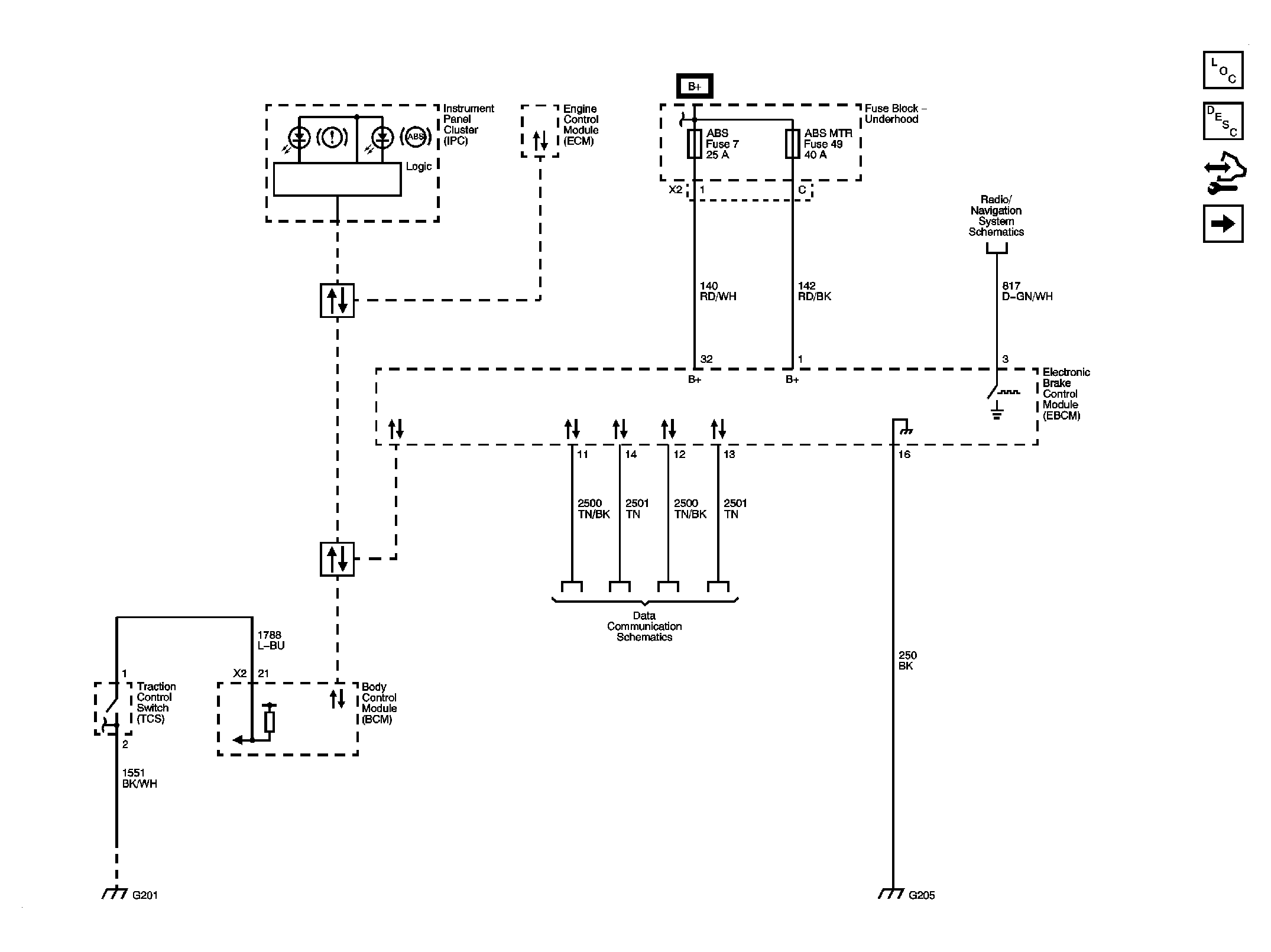

Fig 1: Serial Data, Traction Switch, and Instrument Panel Schematic

Courtesy of GENERAL MOTORS CORP.

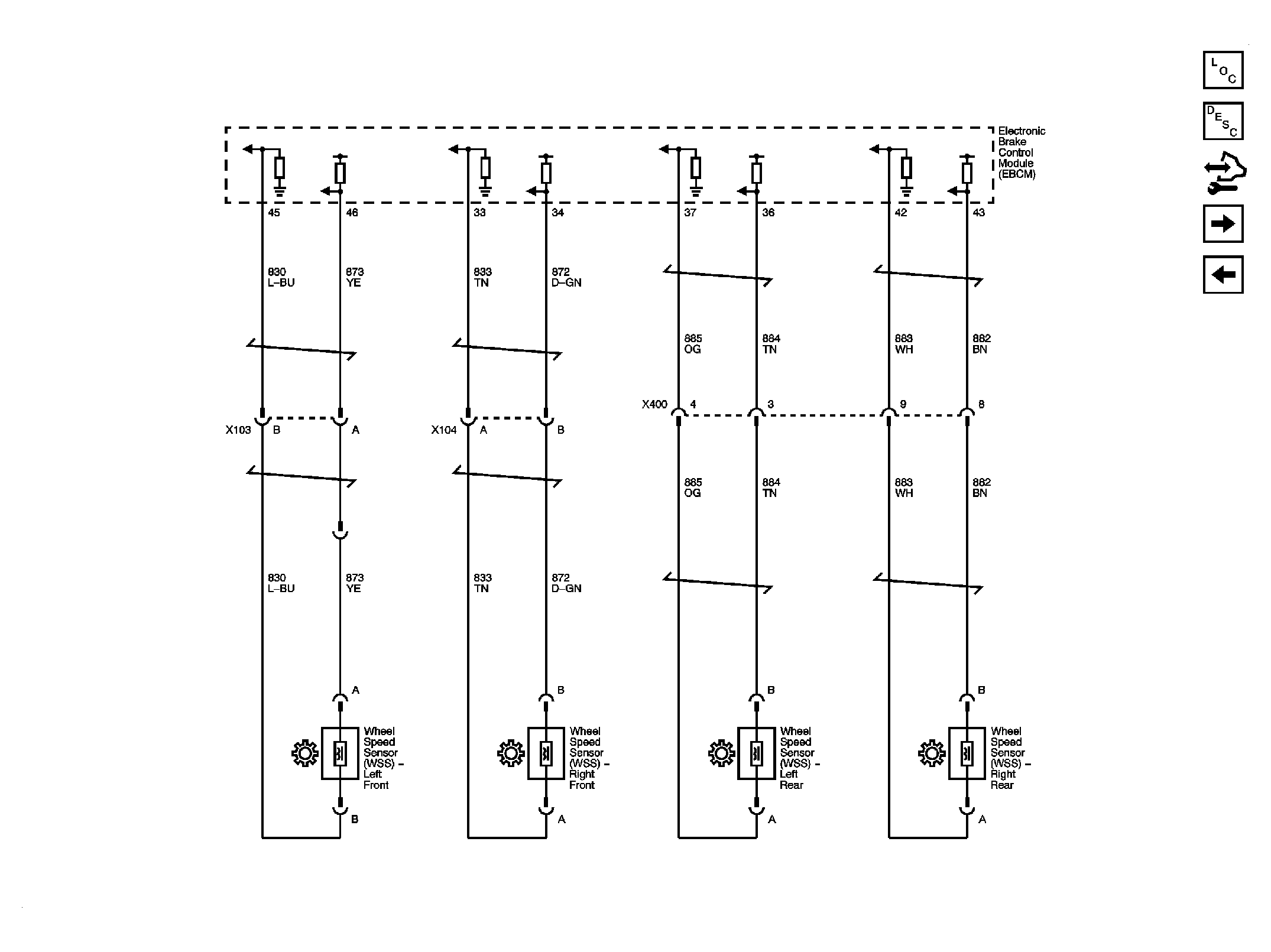

Fig 2: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Yaw Rate and Lateral Accelerometer Sensor Schematic (3.4L)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Yaw Rate and Lateral Accelerator Sensor and Steering Angle Sensor Schematic (3.6L)

Courtesy of GENERAL MOTORS CORP.
