Removal Procedure

  1. Remove the injector sight shield. Refer to Fuel Injector Sight Shield Replacement .

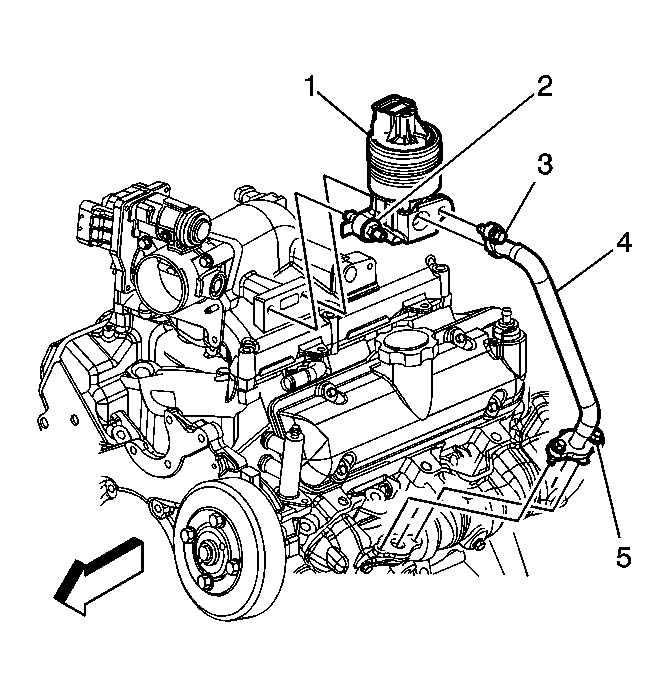

    2. Fig 1: View Of EGR Valve & Pipe
    GM1087633Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt (3) retaining the exhaust gas recirculation (EGR) pipe (4) to the EGR valve (1).
  3. Remove the 2 bolts (5) securing the EGR pipe (4) to the exhaust manifold.
  4. Remove the EGR pipe (4).
  5. Remove the EGR pipe to exhaust manifold gasket.
