Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

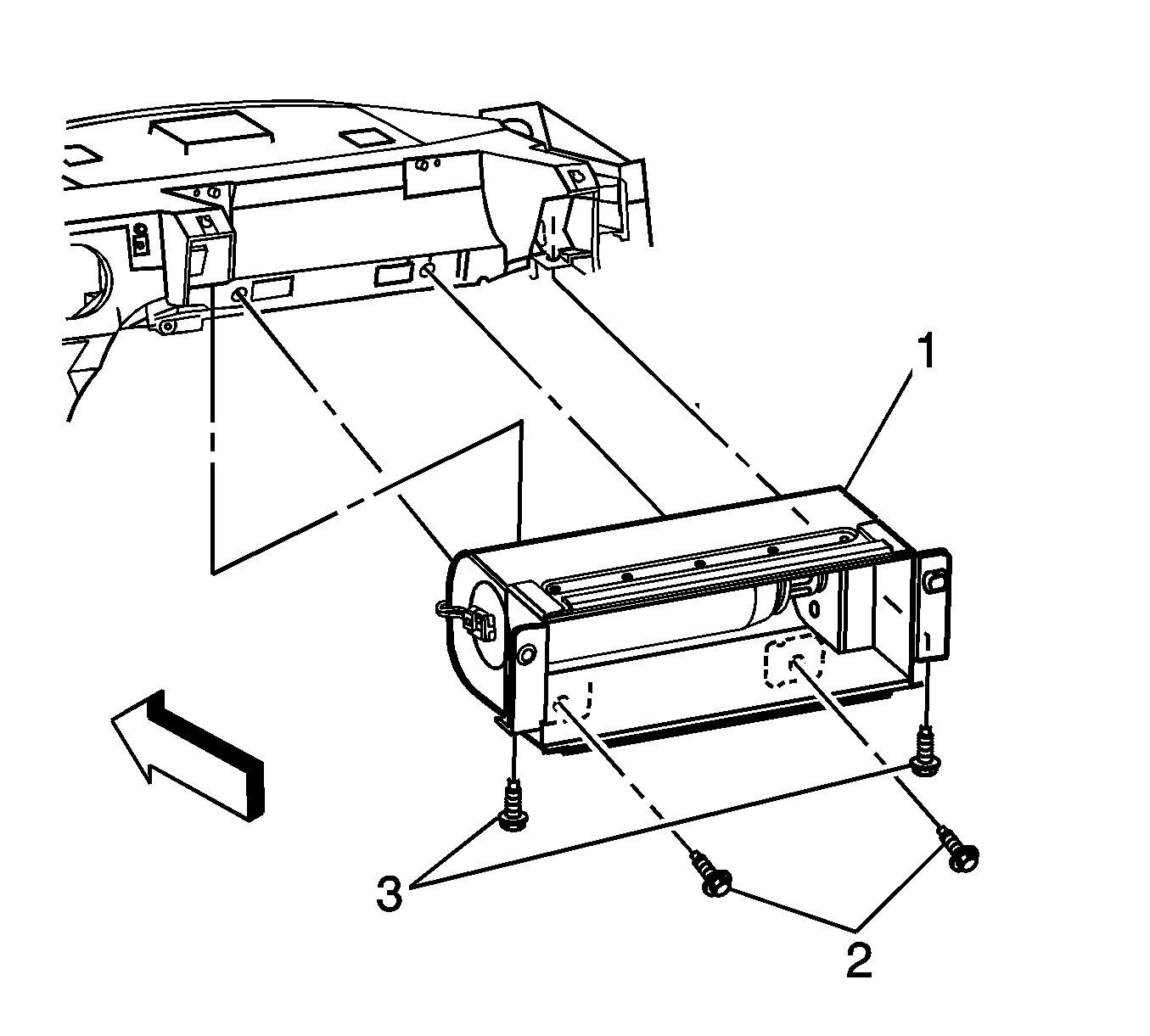

    Fig 1: Removed I/P Module
    GM854202Courtesy of GENERAL MOTORS CORP.
  1. Install the inflatable restraint I/P module (1) to the instrument panel inflatable restraint carrier.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the lower bolts (2) hand tight.
  3. Install the lower bolts (3) to the inflatable restraint instrument panel inflatable restraint module and tighten to 10 N.m (89 lb in).
  4. Connect the electrical connector to the instrument panel inflatable restraint module.
  5. Install the right knee bolster bracket. Refer to Passenger Knee Bolster Bracket Replacement .
  6. Install the body control module. Refer to Body Control Module Replacement .
  7. Install the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement .
  8. Enable the SIR system. Refer to SIR Disabling and Enabling .
