Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

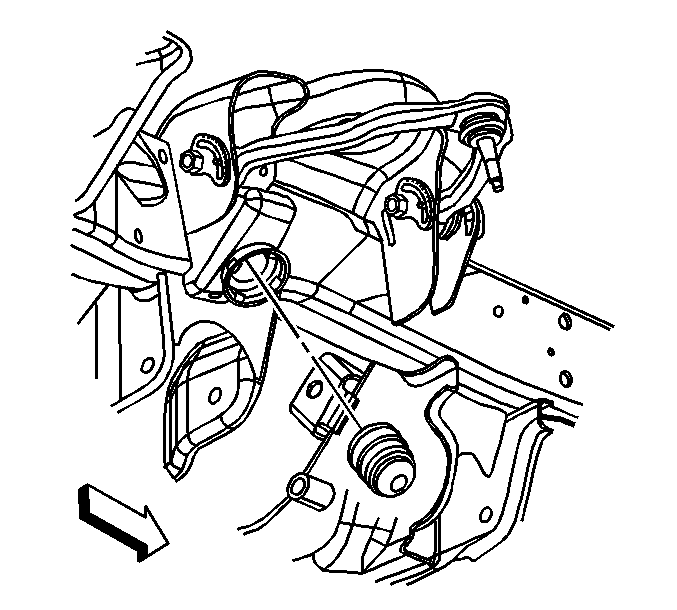

    Fig 1: Jounce Bumper & Mounting Cup
    GM830510Courtesy of GENERAL MOTORS CORP.
  1. Snap the jounce bumper to the mounting cup.
  2. Lower the vehicle.
