Tail Lamp Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

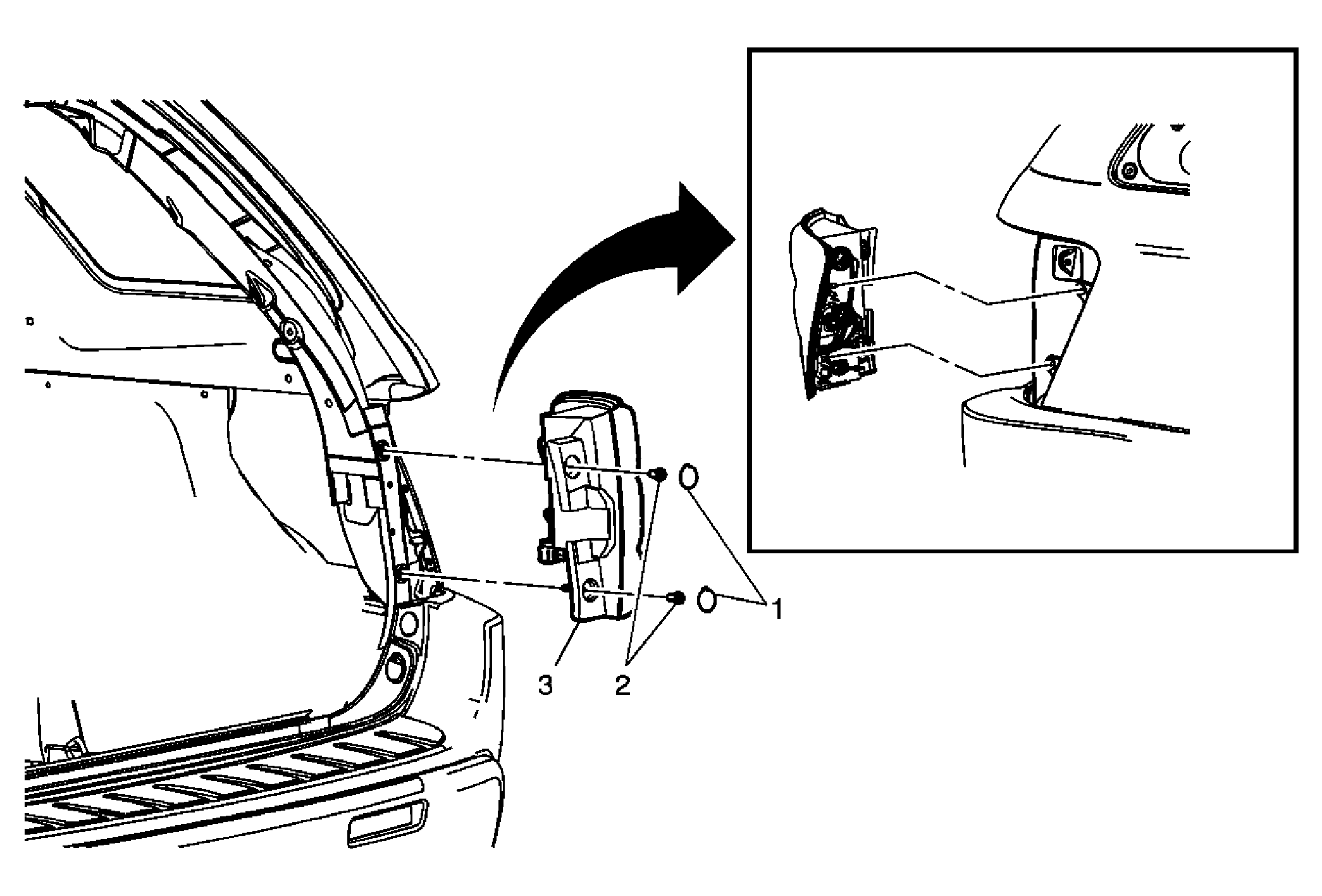

Fig 1: Locating Tail Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Tail Lamp Screw Finish Cover (Qty: 2) Tip: Use a small flat bladed tool to aid in the removal of the finish covers.
2	Tail Lamp Screw (Qty: 2) Tighten: 2.5 N.m (22 lb in)
3	Tail Lamp Assembly Tip: Pull outward at the forward edge of the tail lamp assembly to disengage the two retainers. Disconnect the electrical connector.
