Component Location

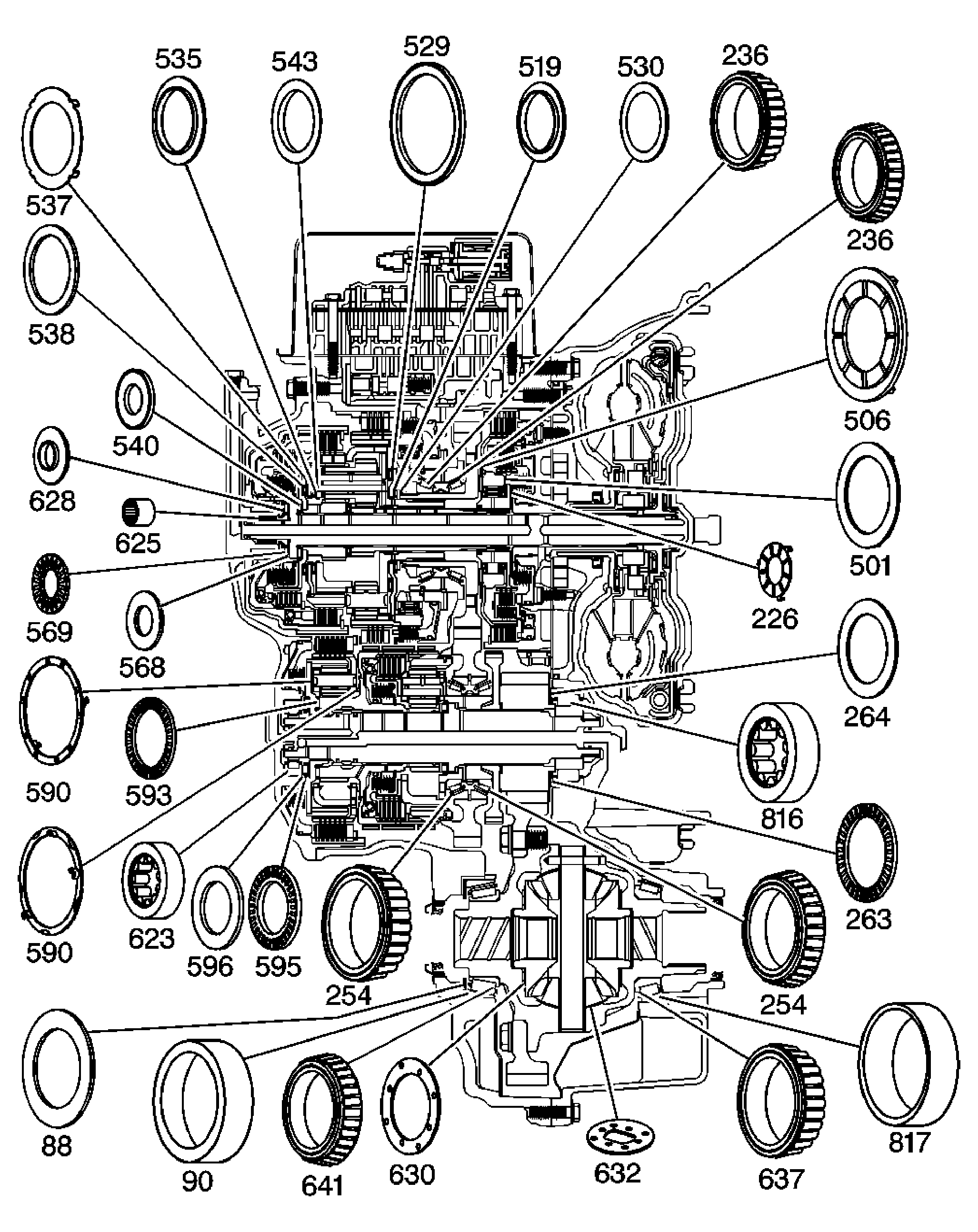

Fig 1: View Of Bearing, Race & Thrust Washer Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
88	Front Differential Side Gear Shim
90	Front Differential Bearing Race
226	Coast Clutch Hub Thrust Washer
236	Output Gear Bearing Assembly (2)
236	Output Gear Bearing Assembly (2)
254	Front Differential Transfer Drive Gear Bearing Assembly (2)
263	Front Differential Transfer Drive Gear Thrust Bearing Assembly
264	Front Differential Transfer Drive Gear Thrust Bearing Washer
501	Coast Clutch Hub Thrust Washer
506	Second Clutch Sprag Outer Race Thrust Washer
519	Front Internal Gear Thrust Bearing Assembly
529	Front Internal Gear Thrust Bearing Assembly
530	Front Internal Gear Thrust Washer Race
535	Rear Internal Gear Thrust Bearing Assembly
537	Rear Sun Gear Thrust Bearing Race
538	Rear Sun Gear Thrust Bearing Assembly
540	Input Shaft Thrust Bearing Assembly
543	Front Carrier Thrust Bearing Race
568	Forward and Direct Clutch Housing Thrust Bearing Race
569	Forward Clutch Housing Thrust Bearing Race
590	1-2 Reverse Carrier Thrust Washer (2)
593	1-2 Reverse Internal Gear Front Thrust Bearing Assembly
595	1-2 Reverse Internal Gear Rear Thrust Bearing Assembly
596	1-2 Reverse Internal Gear Shim
623	Front Differential Transfer Drive Gear Assembly Rear Bearing Assembly
625	Input Shaft Support Bearing
628	Forward/Direct Clutch Housing Thrust Bearing Race
630	Front Differential Side Gear Thrust Washer (2) (Selective)
632	Front Differential Pinion Shaft Thrust Washer (2)
637	Front Differential Tapered Outer Roller Bearing Race (86 mm I.D.)
641	Front Differential Tapered Outer Roller Bearing Race (90 mm I.D.)
816	Front Differential Transfer Drive Gear Assembly Front Bearing Assembly
817	Front Differential Assembly Bearing Race Shim

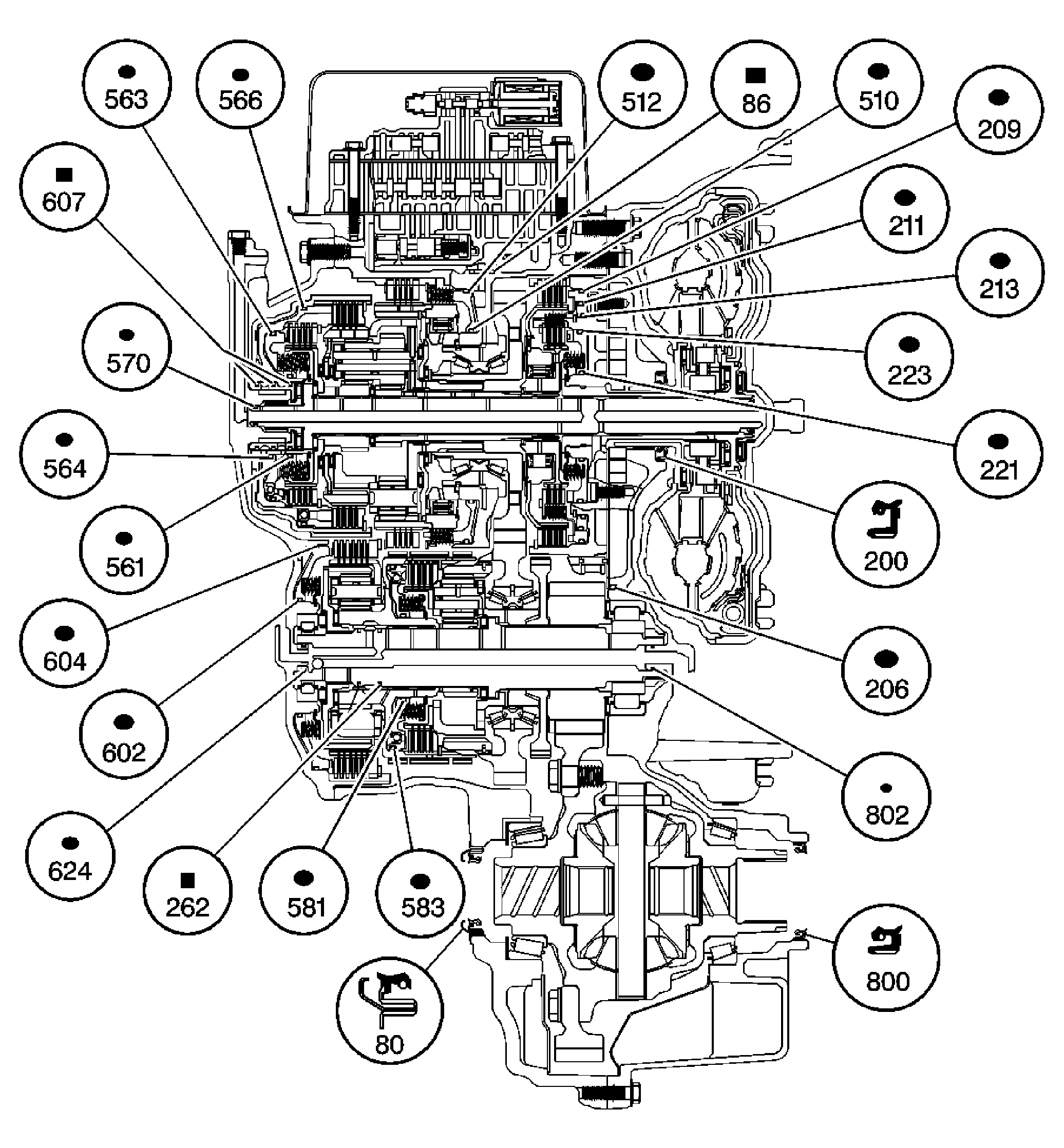

Fig 2: View Of Seal Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
80	Front Wheel Drive Shaft Oil Seal
86	Automatic Transmission Case Fluid Passage Seal (7)
200	Automatic Transmission Fluid Pump Seal Assembly
206	Automatic Transmission Fluid Pump O-ring Seal
209	Second Clutch Piston Outer Seal
211	Second Clutch Piston Sleeve Outer Seal
213	Second Clutch Piston Sleeve Inner Seal
221	Second Coast Clutch Piston Inner Seal
223	Second Coast Clutch Piston Outer Seal
262	4-5 Clutch Housing Fluid Seal Ring (2)
510	Low and Reverse Clutch Piston Inner Seal
512	Low and Reverse Clutch Piston Outer Seal
561	Direct Clutch Piston Inner Seal
563	Direct Clutch Piston Outer Seal
564	Forward Clutch Piston Inner Seal
566	Forward Clutch Piston Outer Seal
570	Input Shaft O-ring Seal
581	4-5 Clutch Piston Inner Seal
583	4-5 Clutch Piston Outer Seal
602	1-2 Reverse Clutch Piston Inner Seal
604	1-2 Reverse Clutch Piston Outer Seal
607	Forward Clutch Housing Fluid Seal Ring (3)
624	Front Differential Transfer Drive Gear Assembly Lube Seal Ring - Rear
800	Front Differential Carrier Seal Assembly
802	Front Differential Transfer Drive Gear Front Lube O-ring Seal
