Front Side Door Window Regulator Motor Replacement

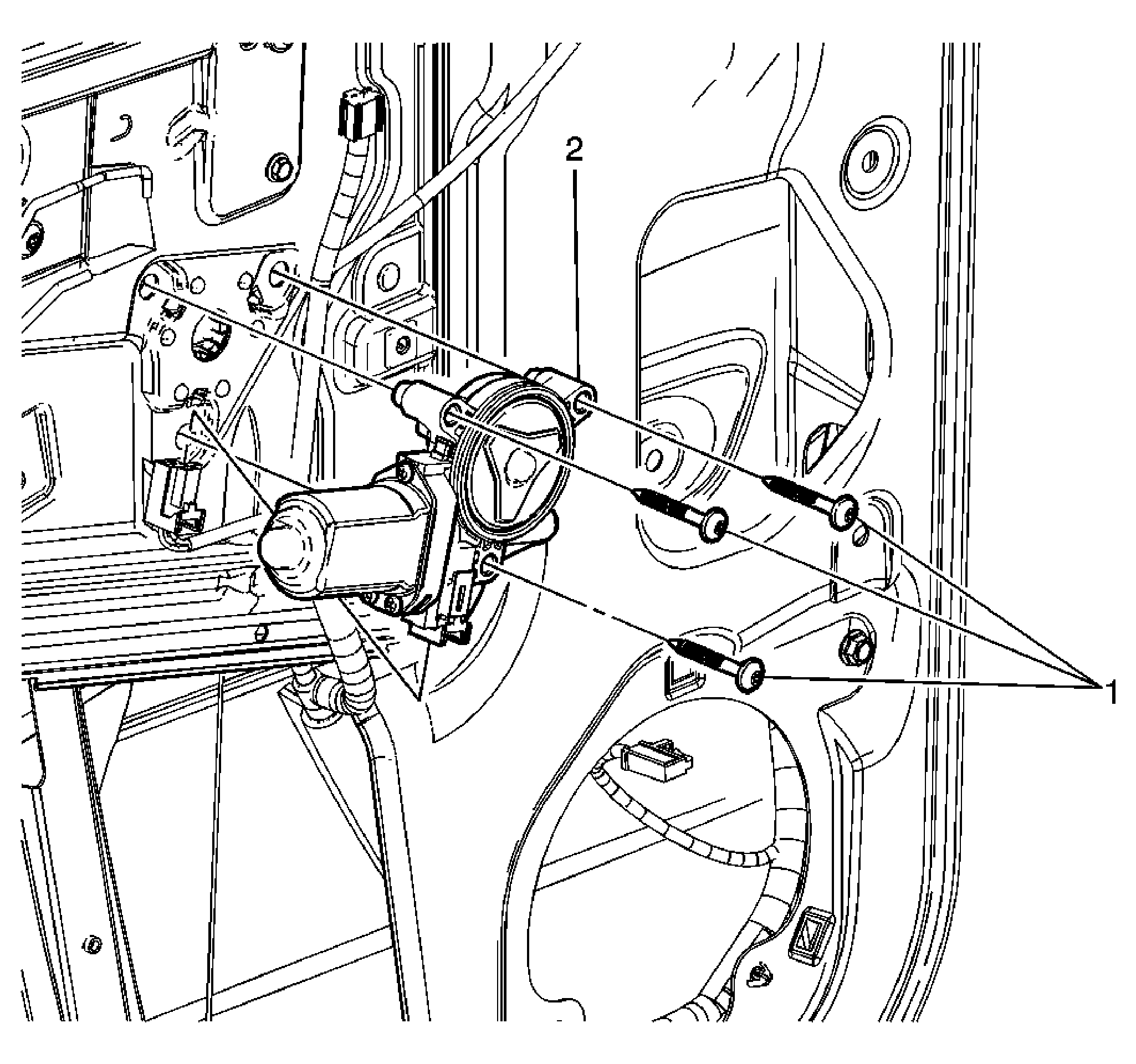

Fig 1: View Of Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Side Door Window Regulator Motor Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Front Side Door Window Regulator Motor Assembly Procedure: Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Front Side Door Window Regulator Motor Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Front Side Door Window Regulator Motor Assembly
Procedure:
Disconnect the electrical connector.
