Installation Procedure

    Fig 1: View Of Starter Motor & Bolts
    GM1313340Courtesy of GENERAL MOTORS CORP.
  1. Install the starter motor (1).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the starter motor bolts (2, 3) and tighten to 43 N.m (32 lb ft).
    3. Fig 2: View Of Torque Converter Cover & Bolt
    GM1313339Courtesy of GENERAL MOTORS CORP.
  3. Install the torque converter cover (1).
  4. Install the torque converter cover bolt (2) and tighten to 8 N.m (71 lb in).

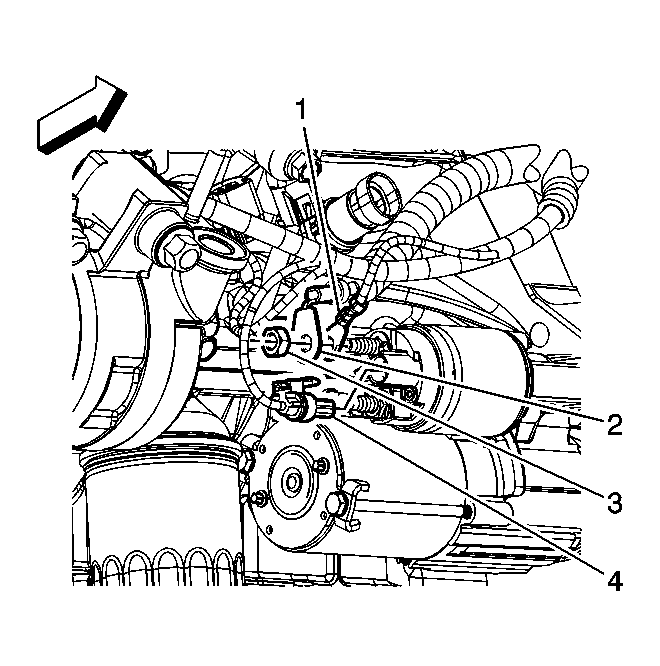

    5. Fig 3: Identifying Engine Wiring Harness Terminal & Positive Battery Cable Terminal
    GM1868581Courtesy of GENERAL MOTORS CORP.
  5. Install the engine wiring harness terminal (1) and the positive battery cable terminal (2) to the starter solenoid.
  6. Install the starter solenoid nut (3) and tighten to 10 N.m (89 lb in).
  7. Connect the engine wiring harness electrical connector (4) to the starter.
  8. Lower the vehicle.
  9. Install the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
