Electronic Compass Module Replacement

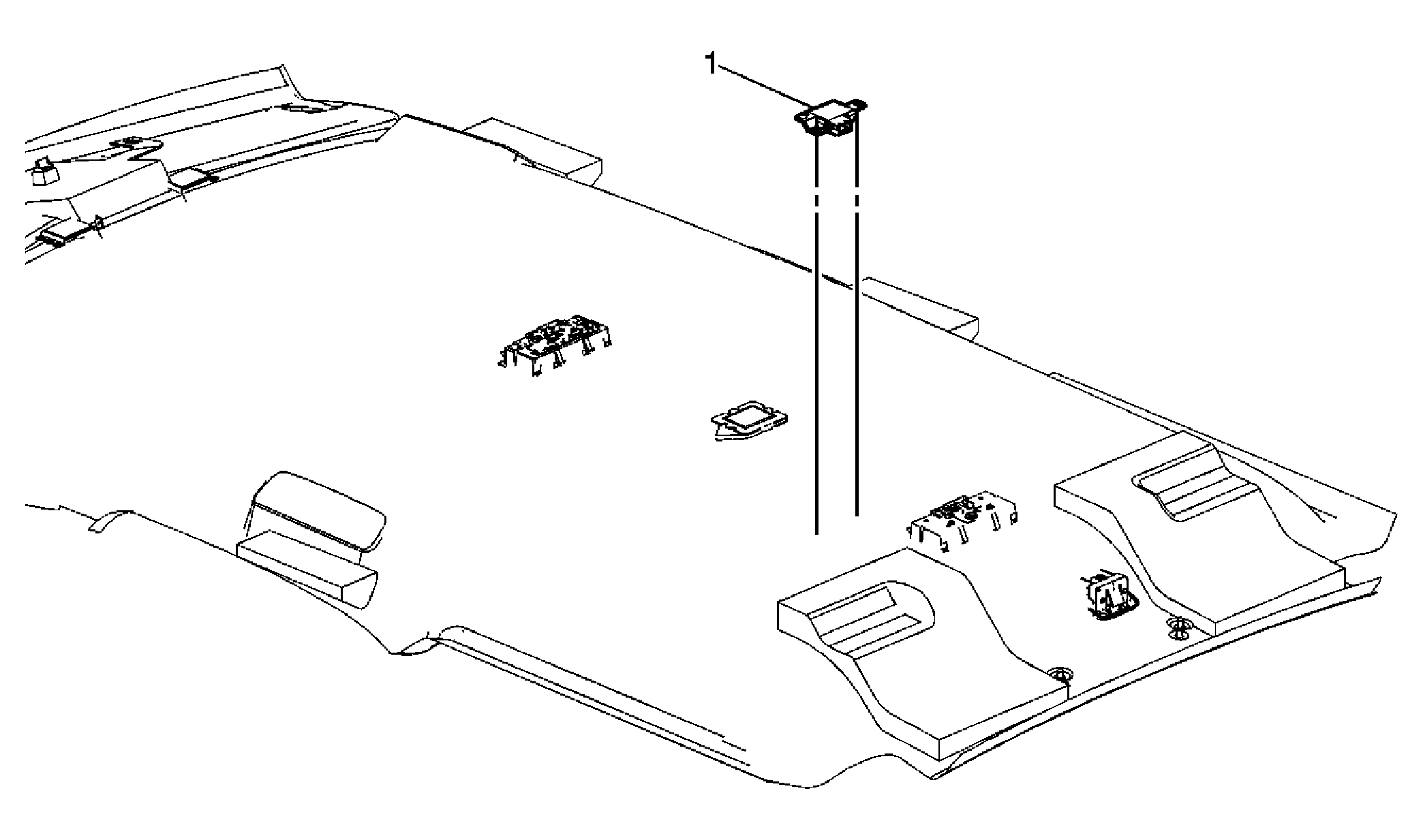

Fig 1: Identifying Electronic Compass Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lower the headliner to gain access. Refer to Headlining Trim Panel Replacement .
1	Electronic Compass Module Procedure Disconnect the electrical connector. Unsnap the module from the headliner assembly. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure:
Lower the headliner to gain access. Refer to Headlining Trim Panel Replacement .

Electronic Compass Module

Procedure
