Data Communication Schematics

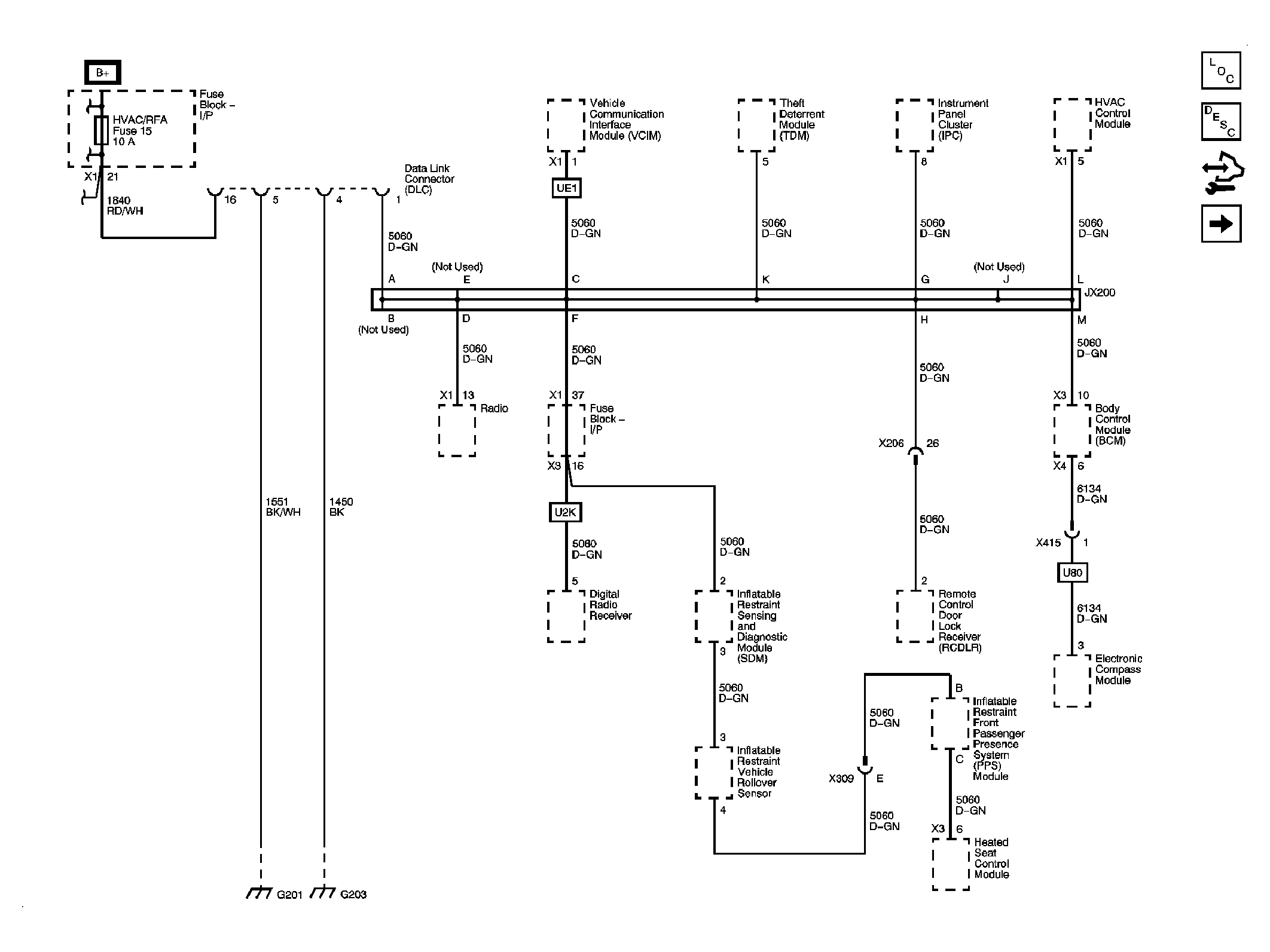

Fig 1: Low Speed GMLAN Schematic

Courtesy of GENERAL MOTORS CORP.

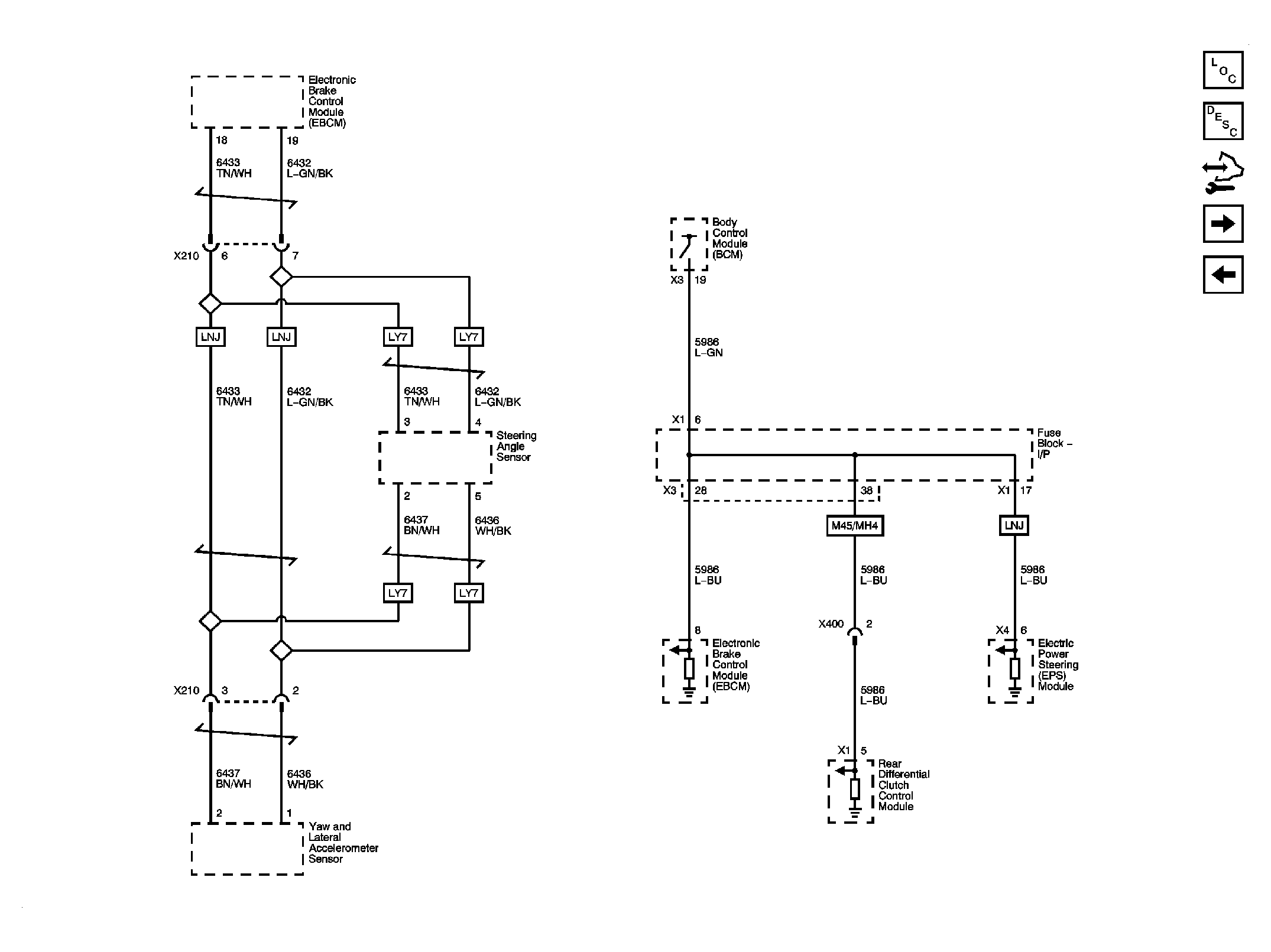

Fig 2: CAN Bus and Enable Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

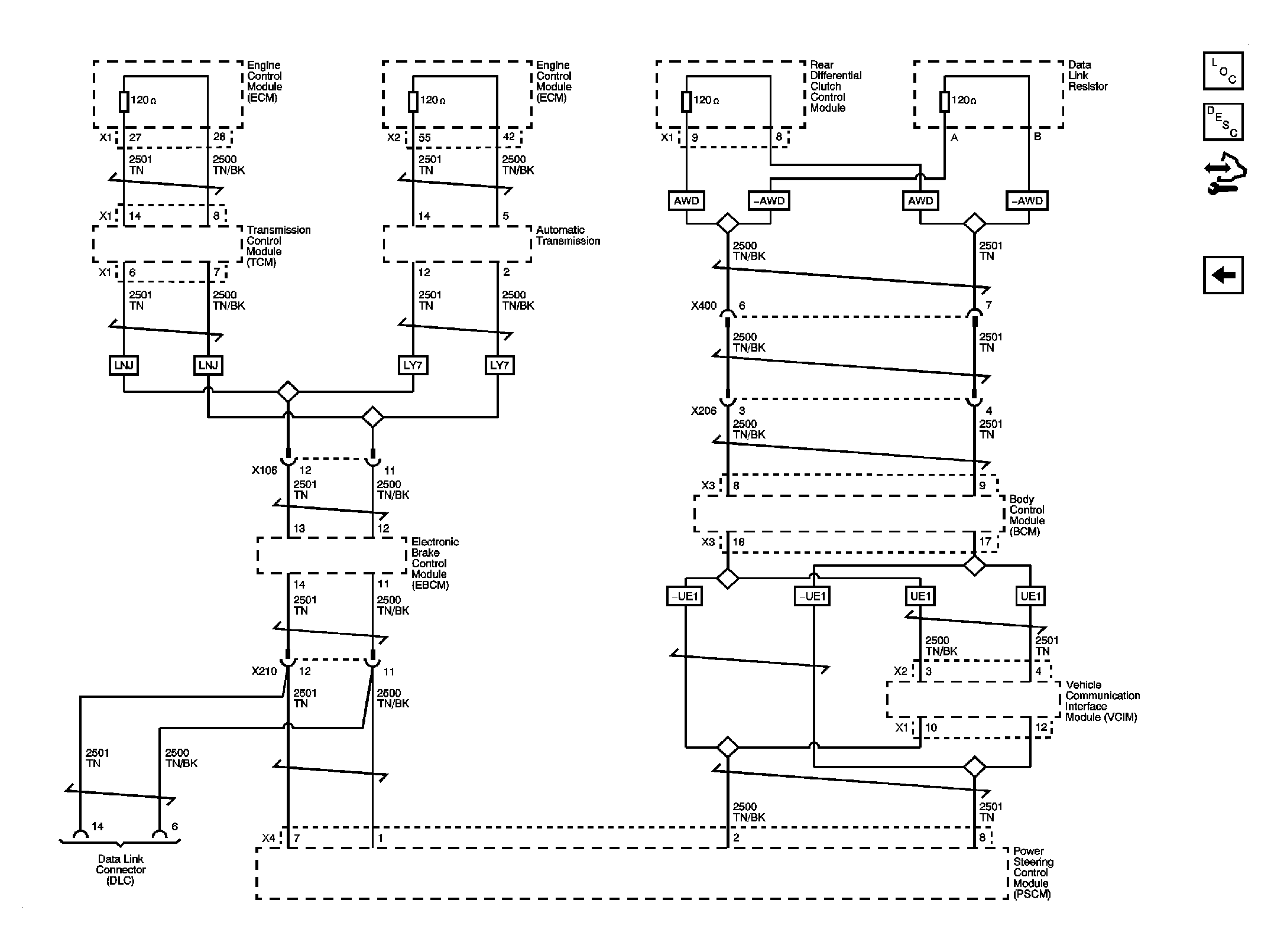

Fig 3: High Speed GMLAN Schematic

Courtesy of GENERAL MOTORS CORP.
