Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

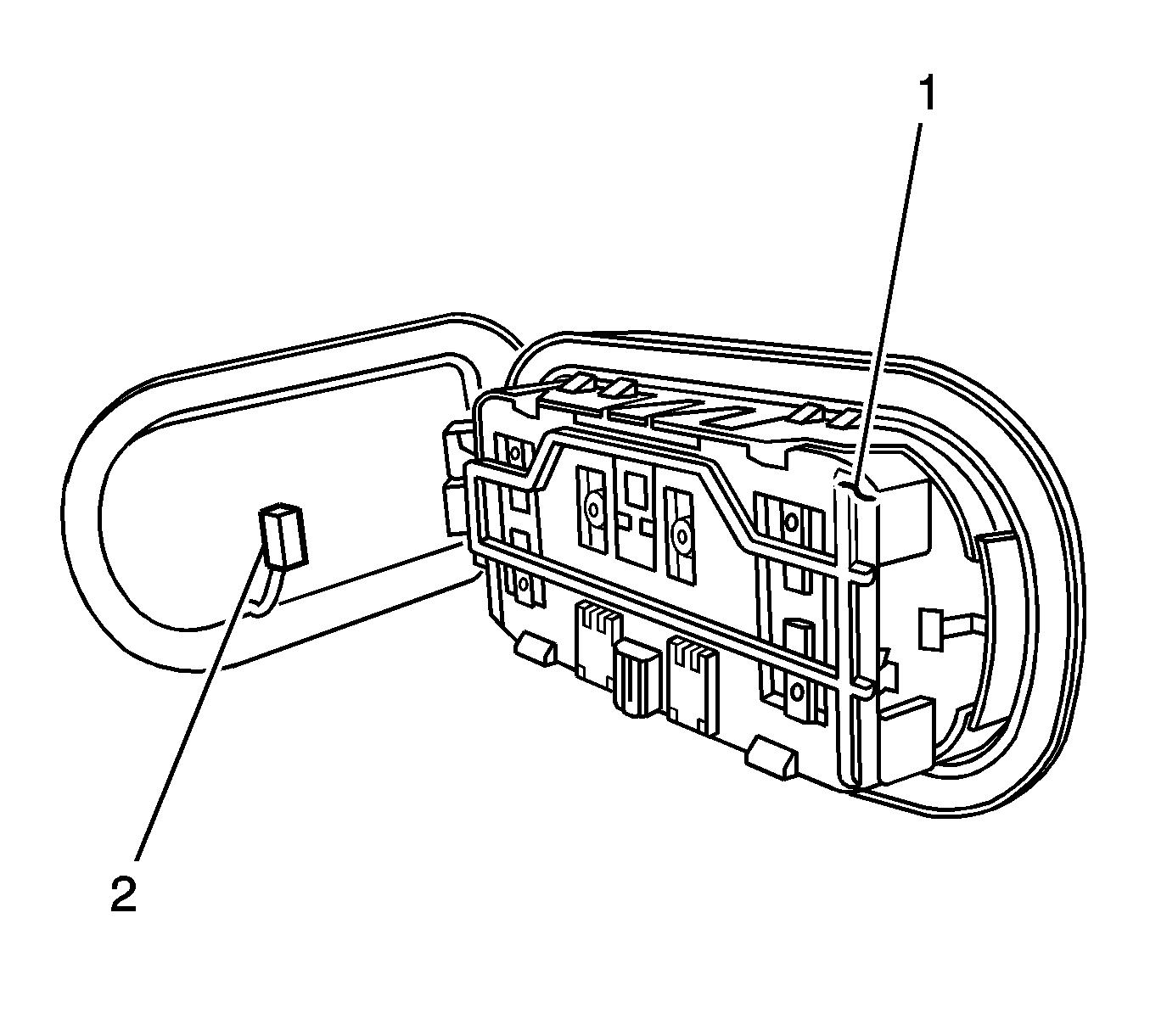

Fig 1: Dome Lamp Housing & Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Partially install the dome lamp housing (1) to the headliner.
Connect the dome lamp electrical connector (2).

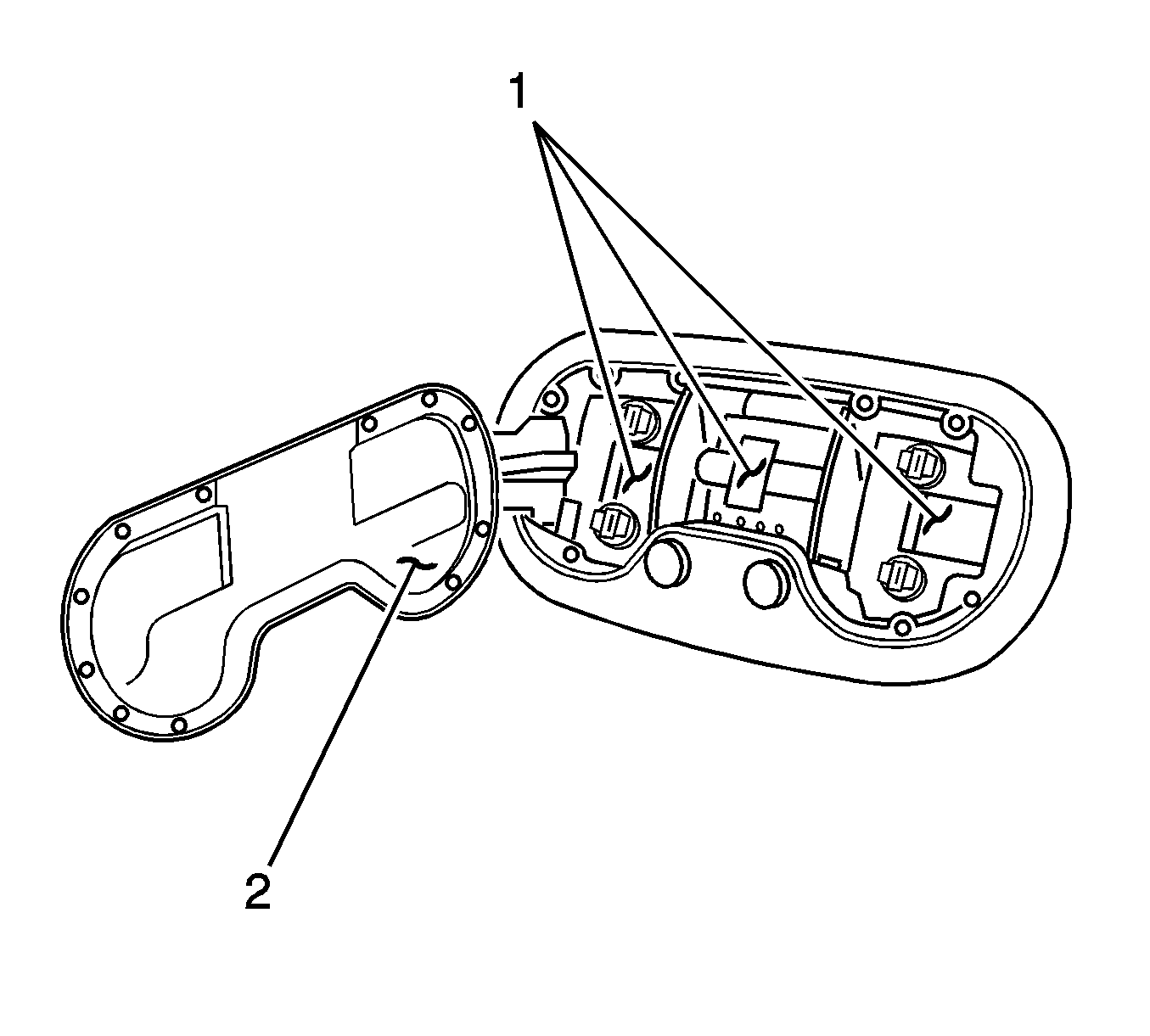

Fig 2: Dome Lamp Lens & Housing

Courtesy of GENERAL MOTORS CORP.

Install the dome lamp lens (2) to the dome lamp housing.
Snap the dome lamp lens (2) into the dome lamp housing.
