Removal Procedure

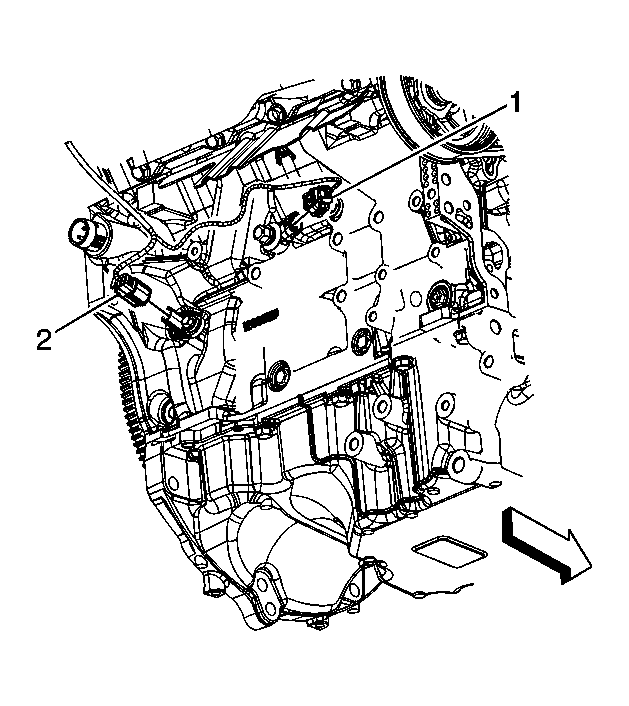

    Fig 1: Identifying Engine Wiring Harness Electrical Connector
    GM1836545Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. If equipped with all wheel drive (AWD), remove the transfer case. Refer to Transfer Case Assembly Replacement .
  3. Disconnect the engine wiring harness electrical connector (2) from the crankshaft position (CKP) sensor.
    4. Fig 2: Identifying Crankshaft Position (CKP) Sensor
    GM1311144Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft sensor bolt.
  5. Remove the crankshaft sensor.
