Installation Procedure

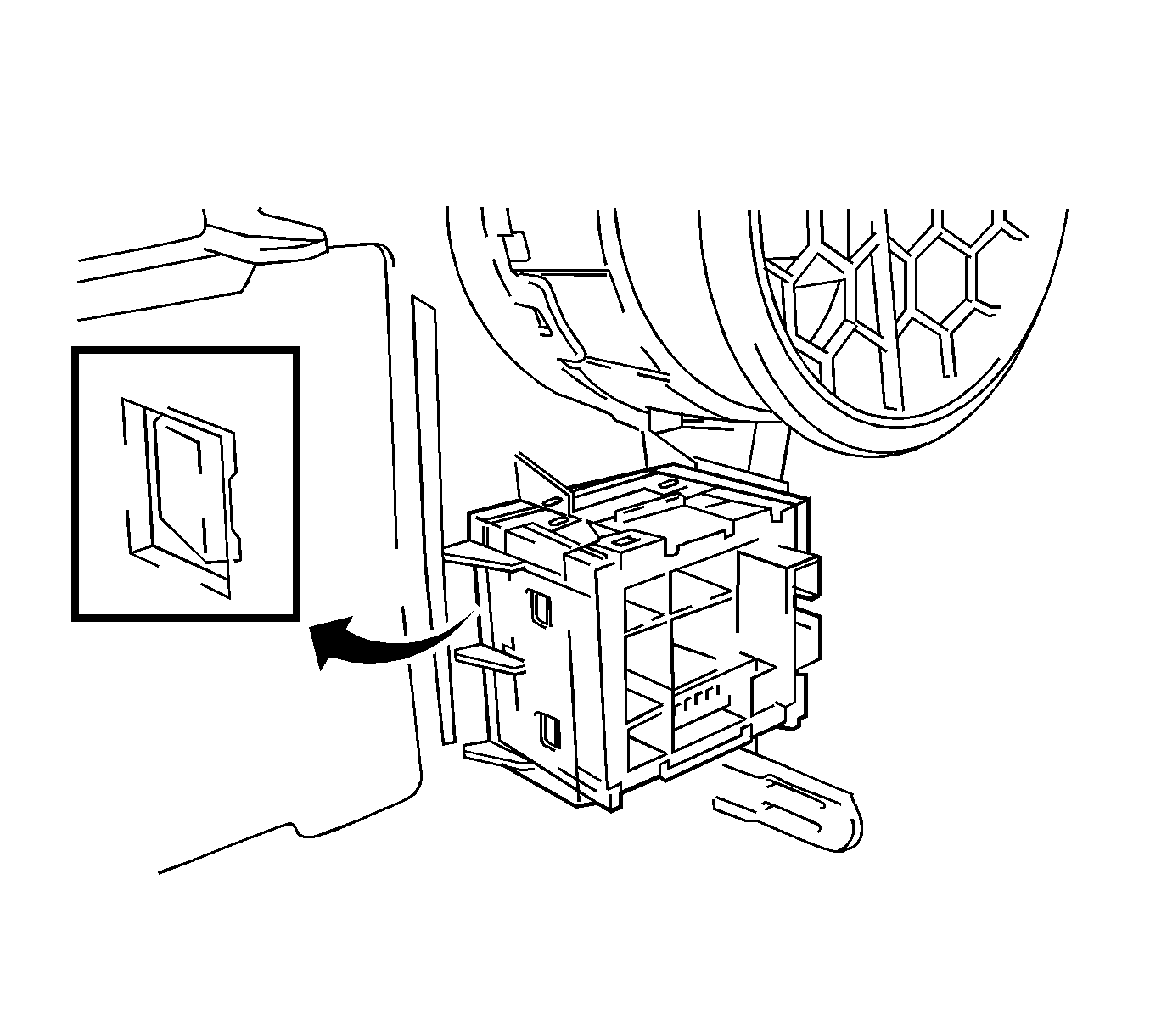

    Fig 1: Identifying Information Center Telltale Assembly Claws
    GM2032100Courtesy of GENERAL MOTORS CORP.
  1. Engage the 4 claws and install the telltale light assembly.
  2. Install the center instrument trim. Refer to Instrument Panel Center Trim Panel Replacement .
