Fuel Level Sensor Replacement (NU6)

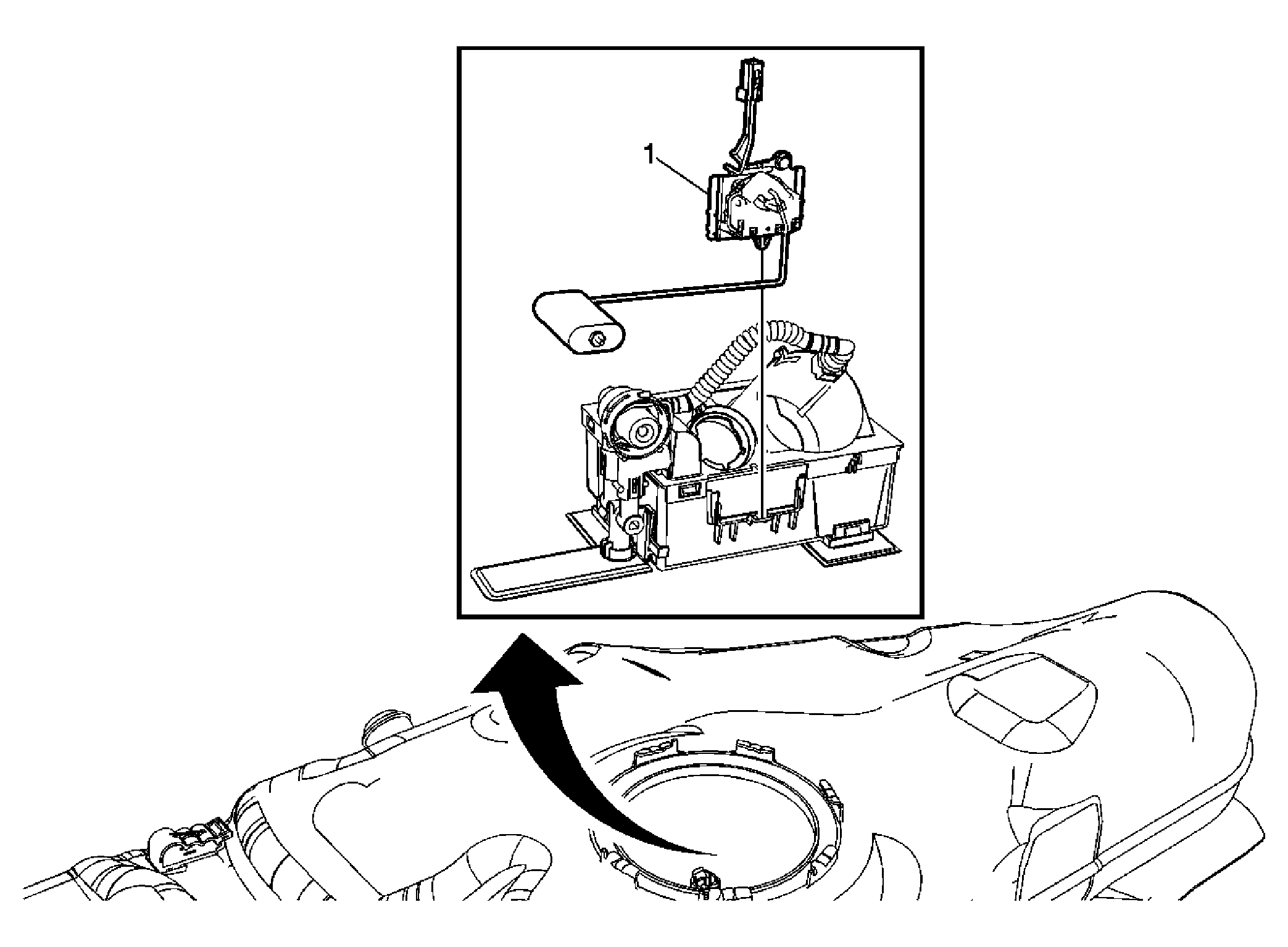

Fig 1: Fuel Level Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the fuel filter. Refer to Fuel Filter Replacement (NT7) or Fuel Filter Replacement (NU6) .
1	Fuel Level Sensor Procedure Squeeze the plastic retainer. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove the fuel filter. Refer to Fuel Filter Replacement (NT7) or Fuel Filter Replacement (NU6) .

Fuel Level Sensor

Procedure
