G5 Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic and Routing Diagrams
›
Data Communication Schematics
Data Communication Schematics

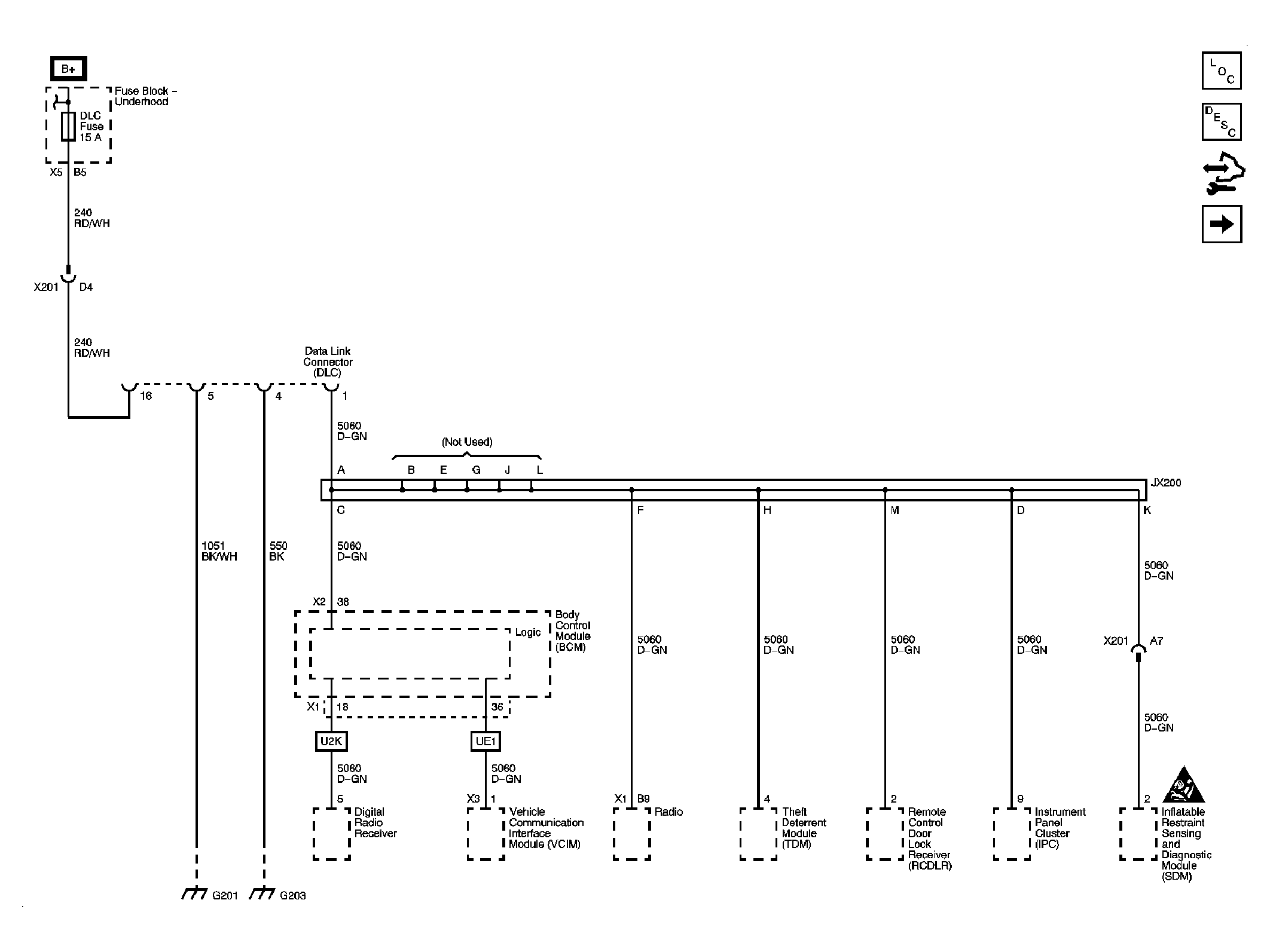

Fig 1: Power, Ground, Low Speed GMLAN
Courtesy of GENERAL MOTORS CORP.

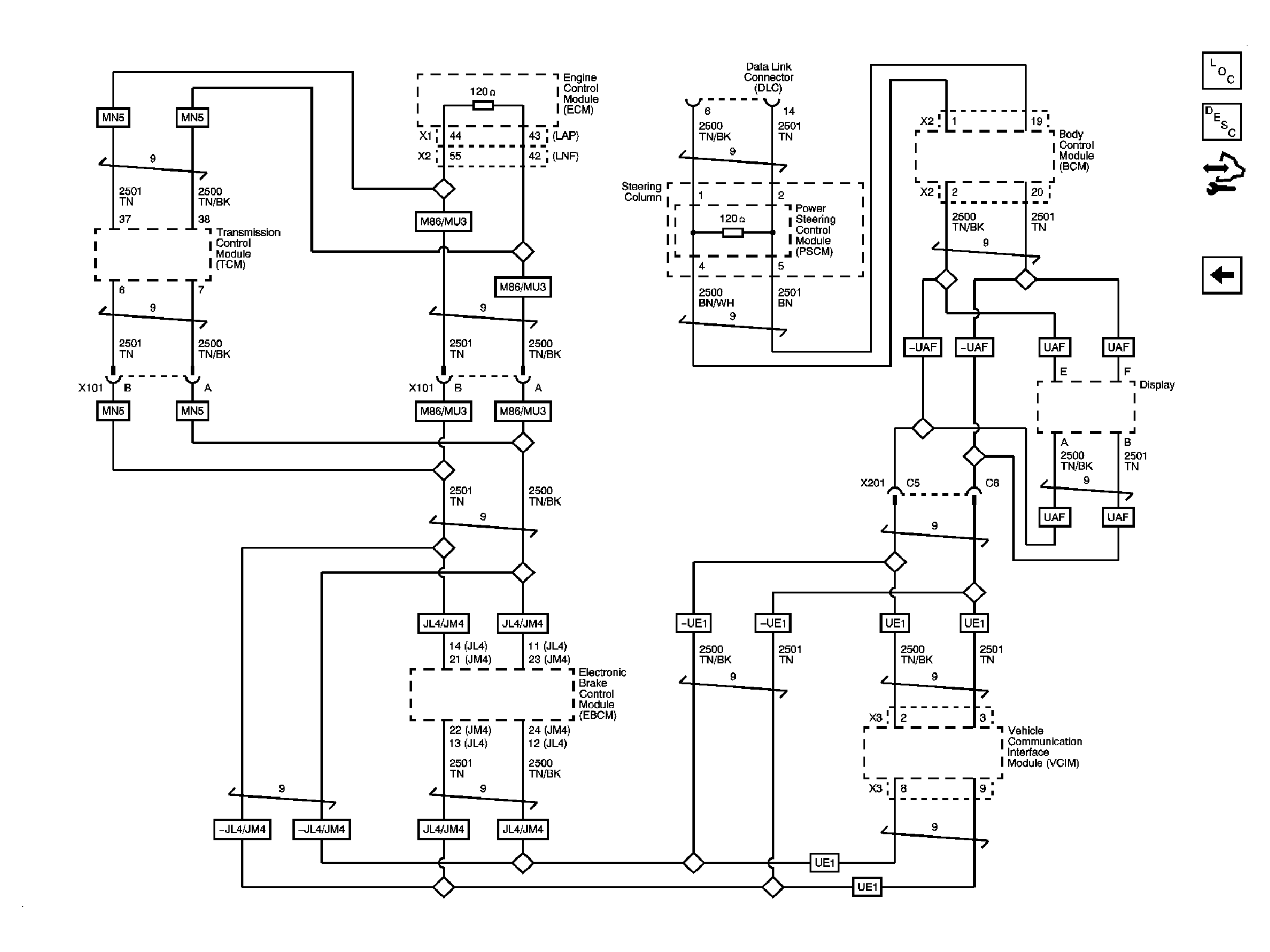

Fig 2: High Speed GMLAN
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
