Air Cleaner Inlet Duct Replacement

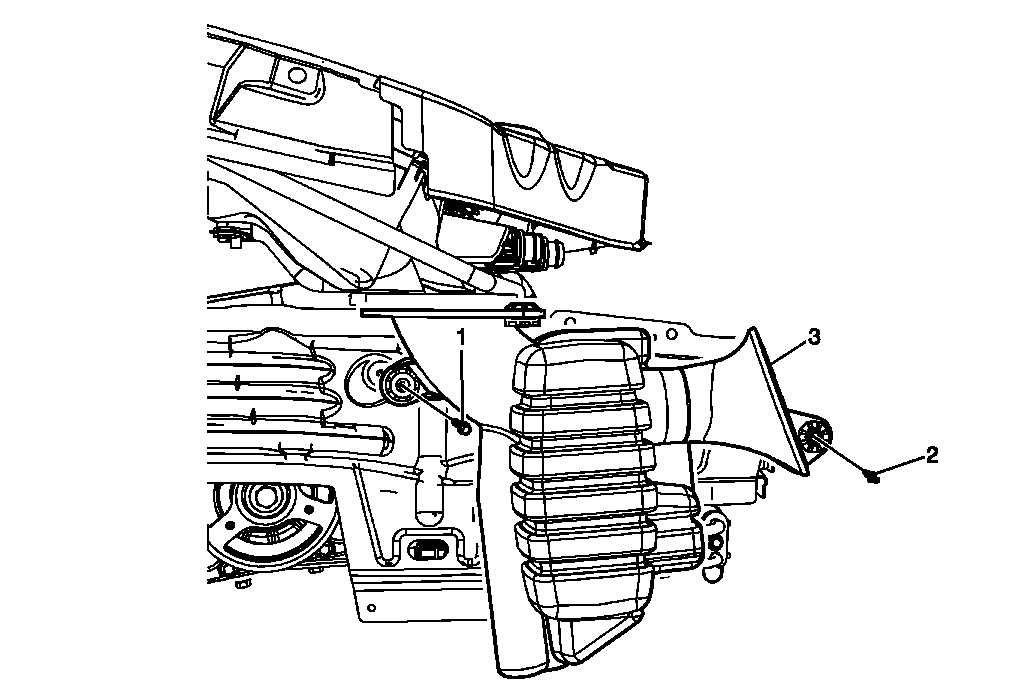

Fig 1: Air Cleaner Inlet Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the right front fender liner. Refer to Front Fender Liner Replacement .
1	Fastener CAUTION: Refer to Fastener Caution . Tighten:  10 N.m(89 lb in)
2	Push-Pin
3	Air Cleaner Inlet Duct
