Air Cleaner Outlet Duct Replacement

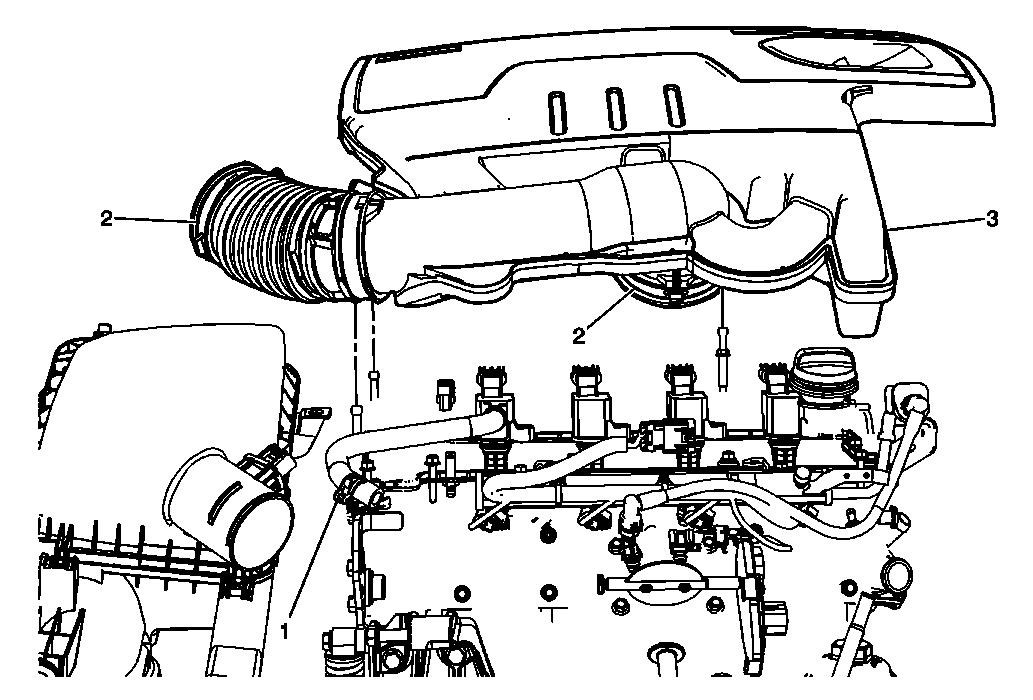

Fig 1: Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hose Clamp Procedure:  Reposition the hose clamp and remove the hose.
2	Air Cleaner Outlet Duct Clamp (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure:  Loosen both of the outlet duct clamps. Tighten:  4 N.m (35 lb in)
3	Air Cleaner Outlet Duct Procedure:  Pull straight up to detach the ball studs.
