Installation Procedure

    Fig 1: Identifying Camshaft Position Sensor & O-Ring
    GM2016538Courtesy of GENERAL MOTORS CORP.
  1. Apply a light coat of engine oil to the O-ring (1) of the sensor.

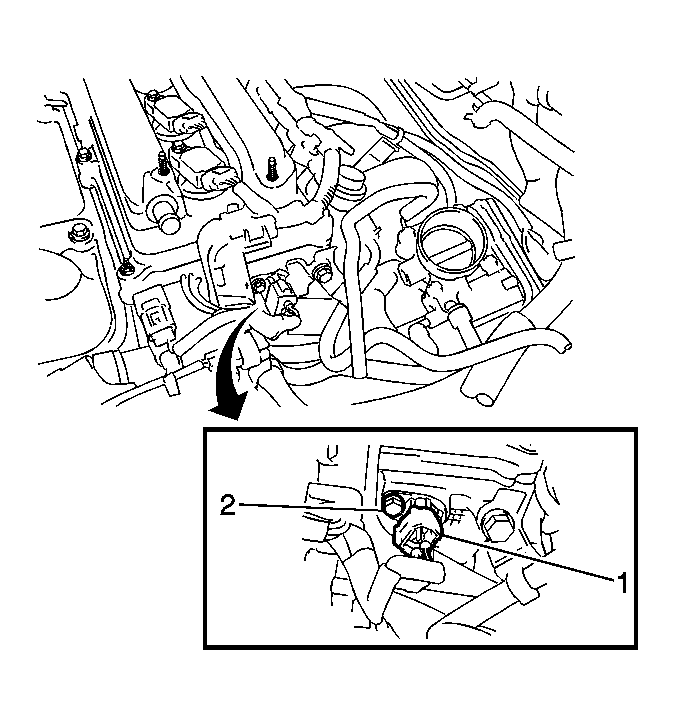

    2. Fig 2: Exploded View Of Camshaft Position Sensor & Bolt
    GM2016536Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the camshaft position sensor with the bolt (2) and tighten to 9.0 N.m (80 lb in).
  3. Connect the camshaft position sensor connector (1).
  4. Install the air cleaner cap with hose.
  5. Inspect for engine oil leak.
  6. Install engine cover. Refer to Engine Cover Replacement .
