PORSCHE 912, 911T & 914/6 Engine Modification: Operation: Transducer

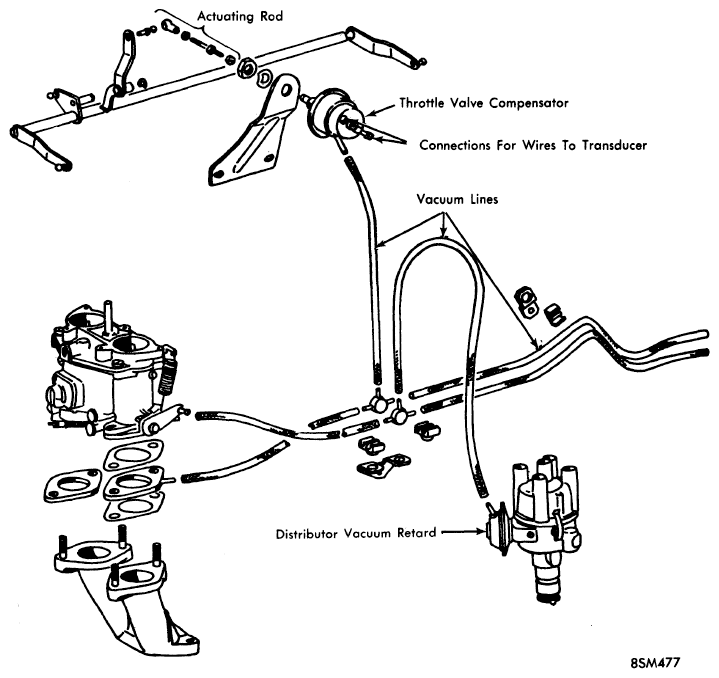

The RPM transducer (which controls regulating solenoid valve) is located on left side panel in engine compartment. Brown wire, between throttle valve compensator and transducer is ground. Black wire is hot.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
