Wiring Diagrams: Wiring Diagram

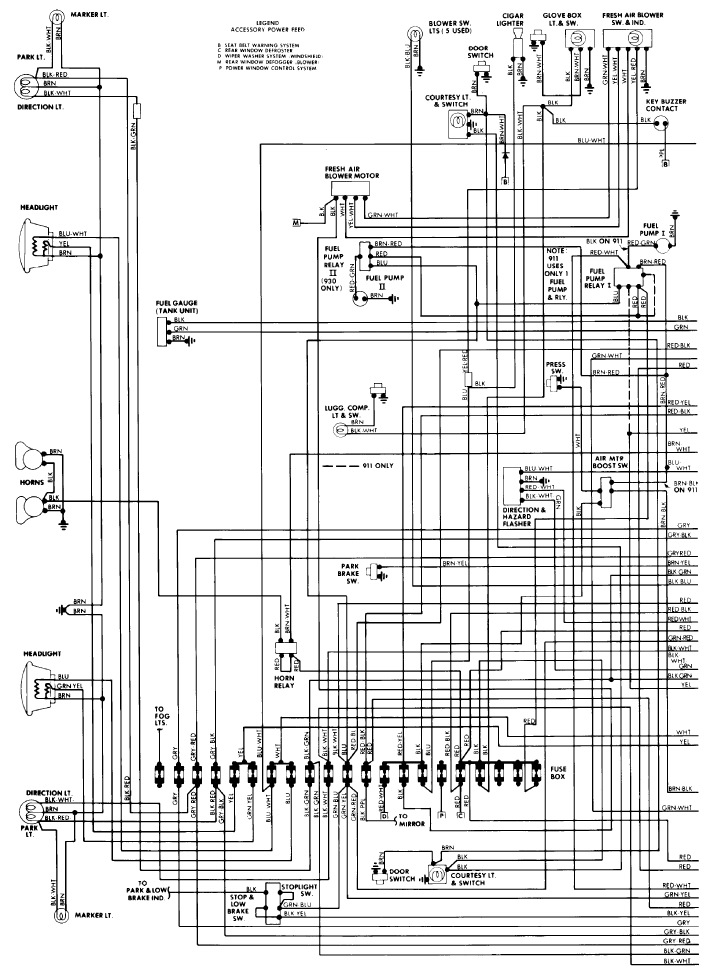

Fig 1: Wiring Diagram - 911SC & Turbo Carrera (1 of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

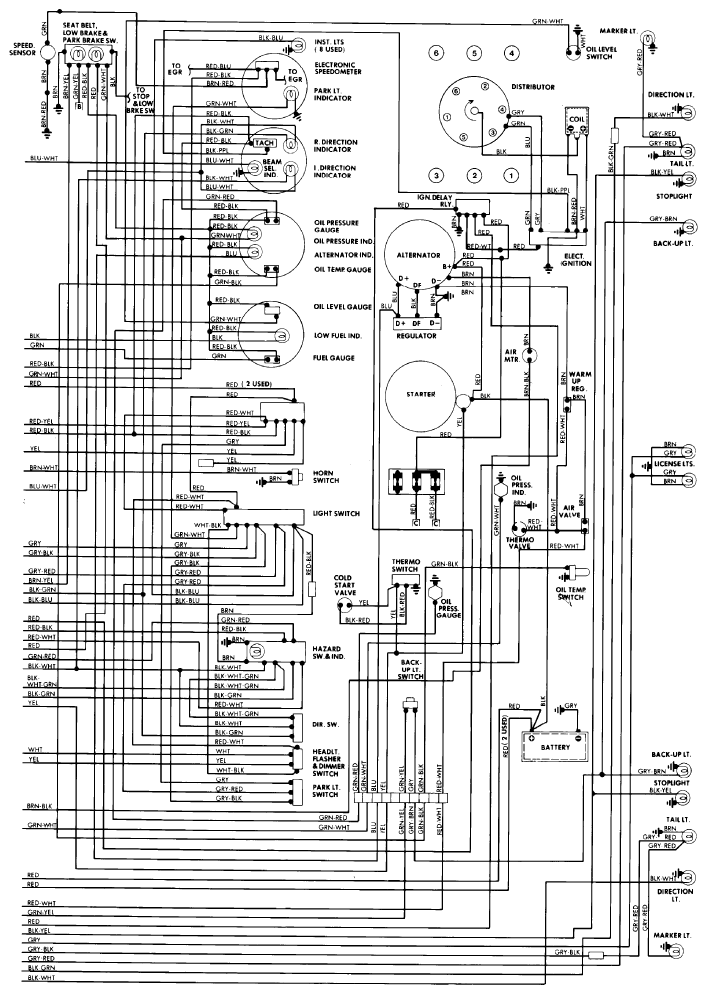

Fig 2: Wiring Diagram - 911SC & Turbo Carrera (2 of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
