1978-79 Models

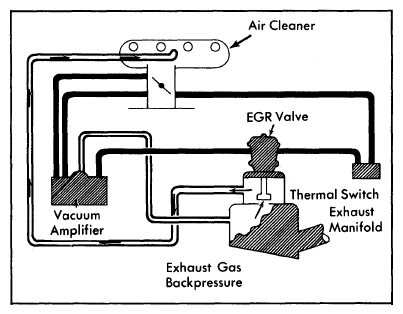

The EGR system for 928 models consists of an EGR valve mounted on the exhaust manifold (for direct exhaust gas sampling), a cold temperature thermal switch, a vacuum amplifier (with a connection for sensing exhaust backpressure), and necessary tubing and vacuum lines. See Fig 1.
