Front Compartment & Fuse Block

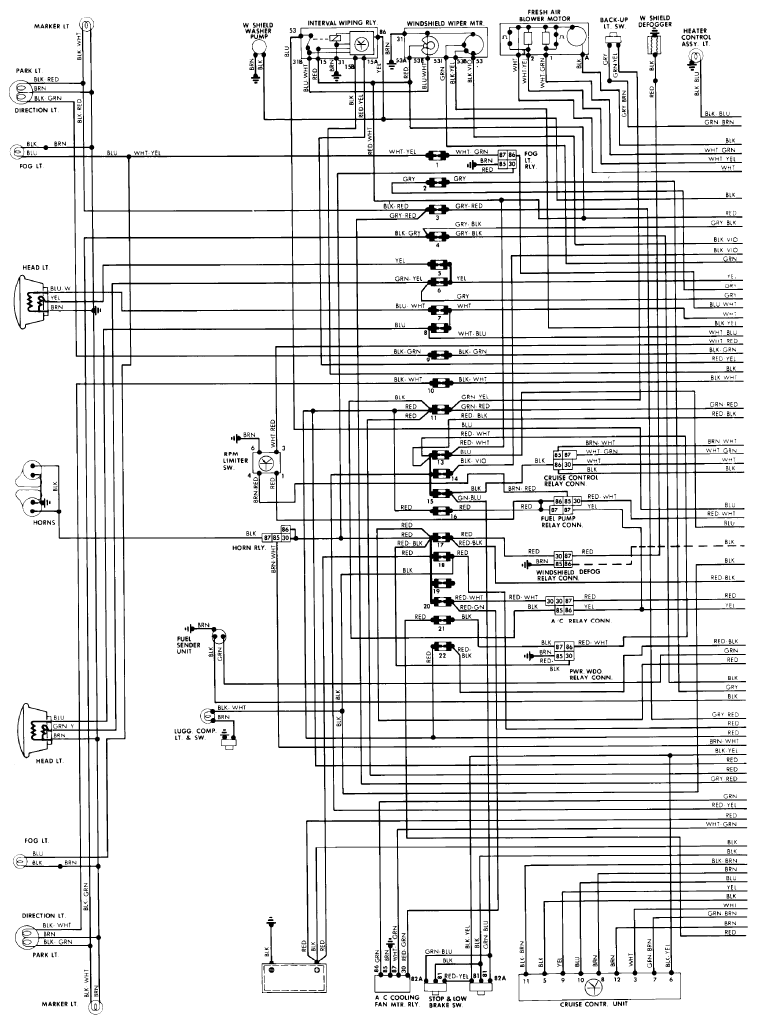

Fig 1: Wiring Diagram - 911SC (1 of 4)

G09304270

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
