Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

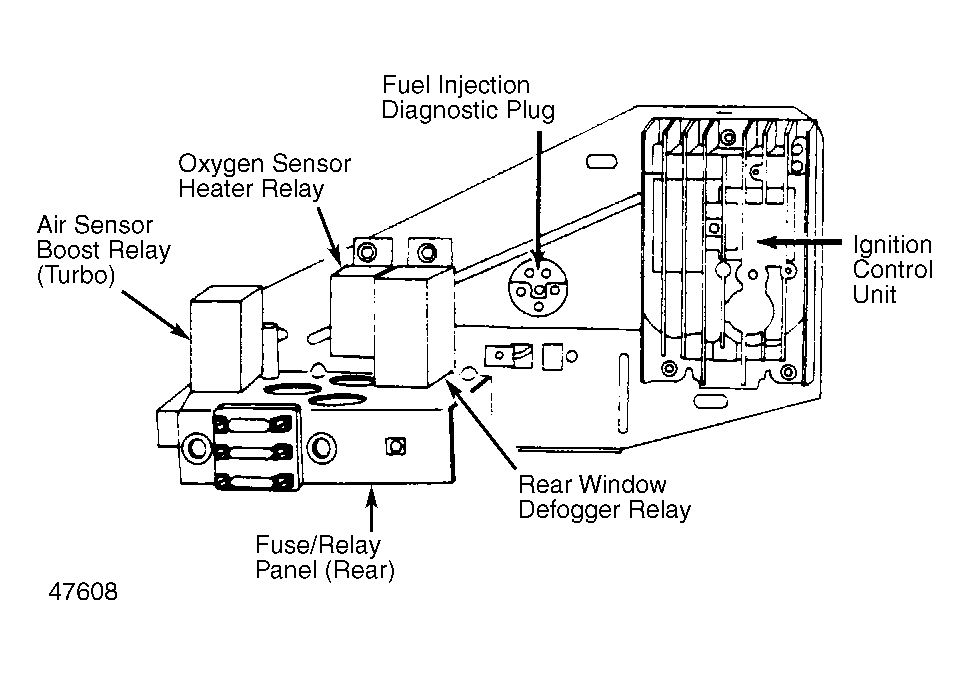

Rear Fuse/Relay Panel On left side of engine compartment, behind cover. See Figure or Figure .
