Fuel Injection System - BOSCH LH: Wiring Diagram

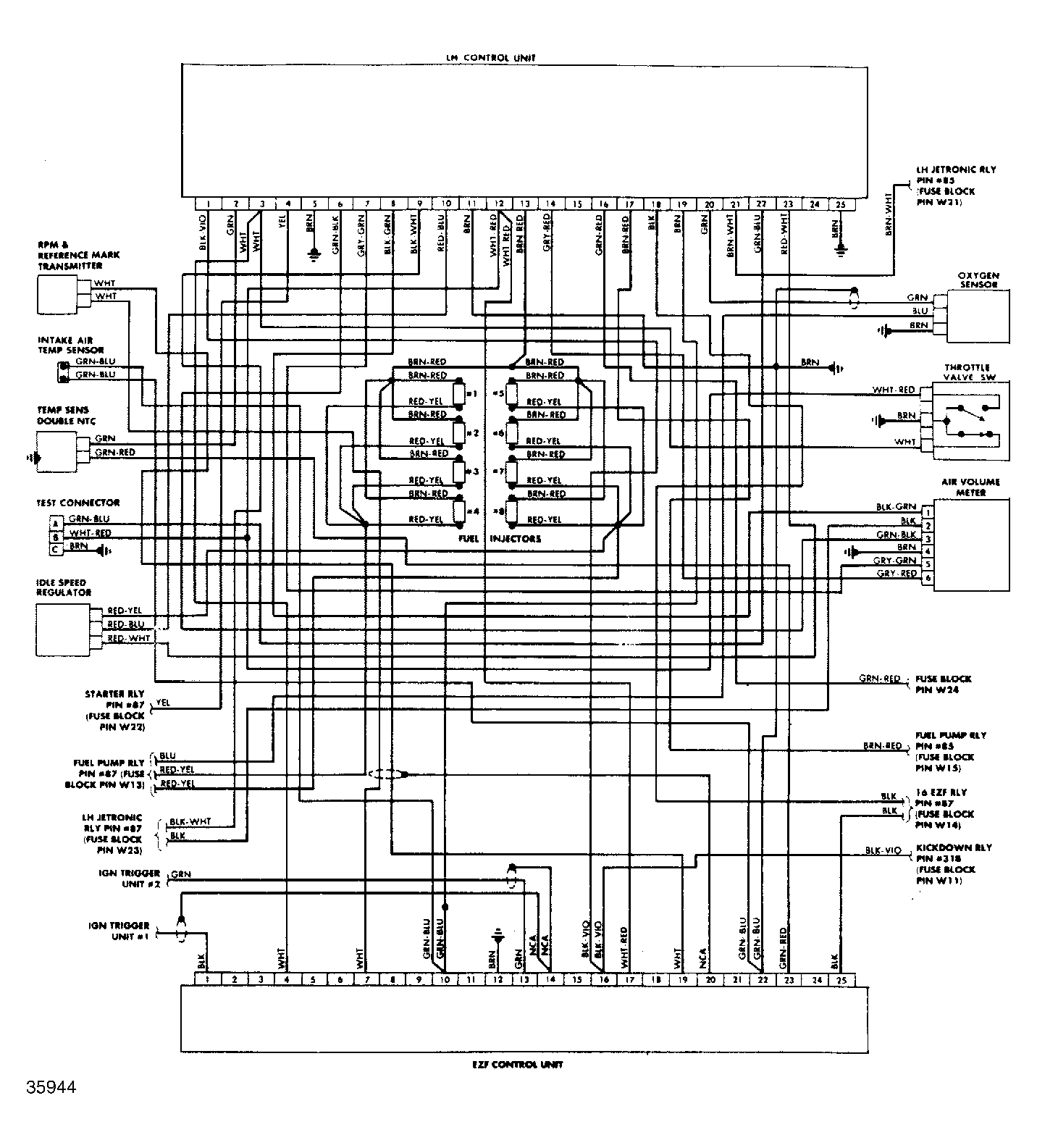

Fig 1: LH Fuel Injection Wiring Diagram (928S)
G35944
