Wiring Diagrams

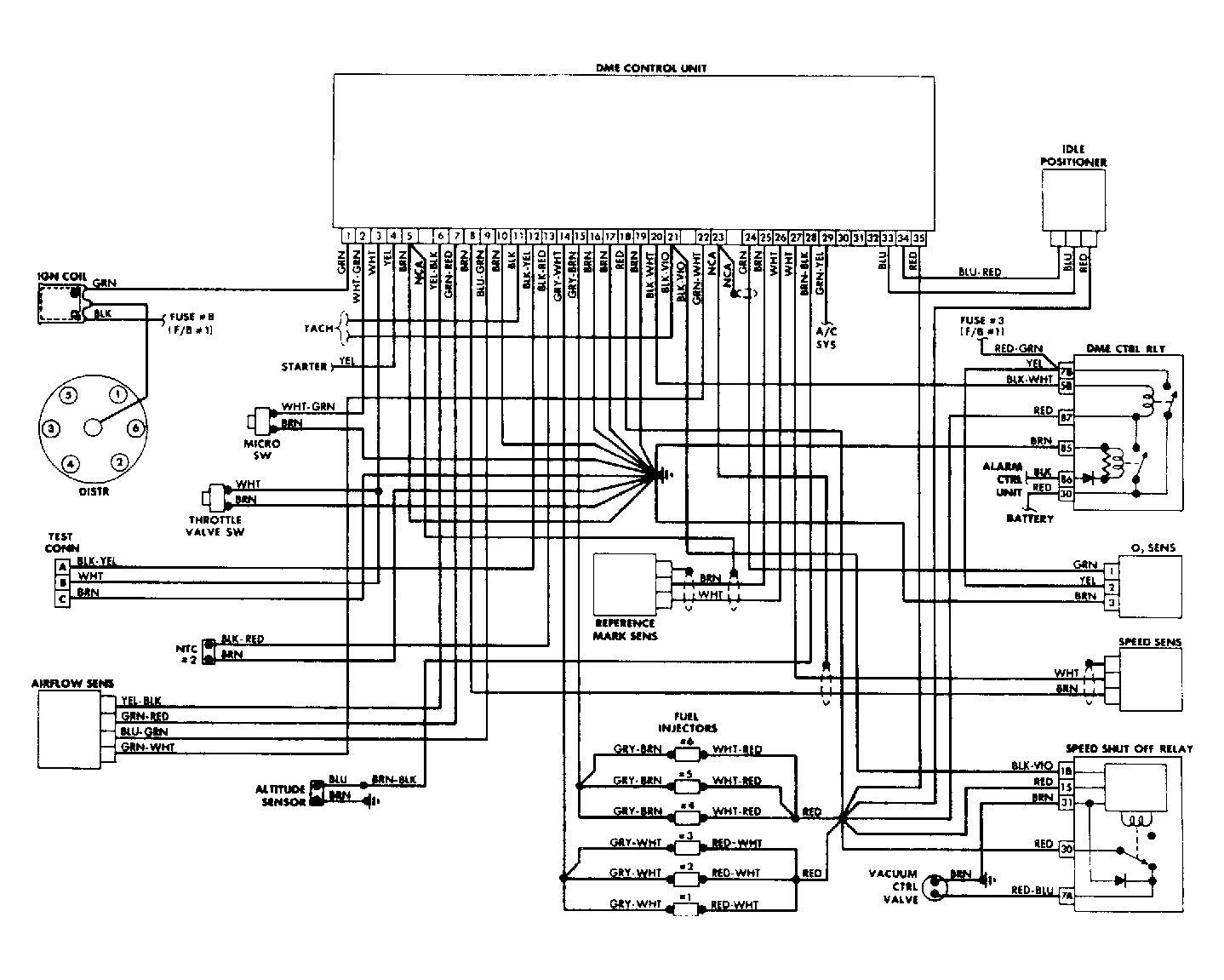

Fig 1: Wiring Diagram for Porsche 911 Carrera DME System
G61820

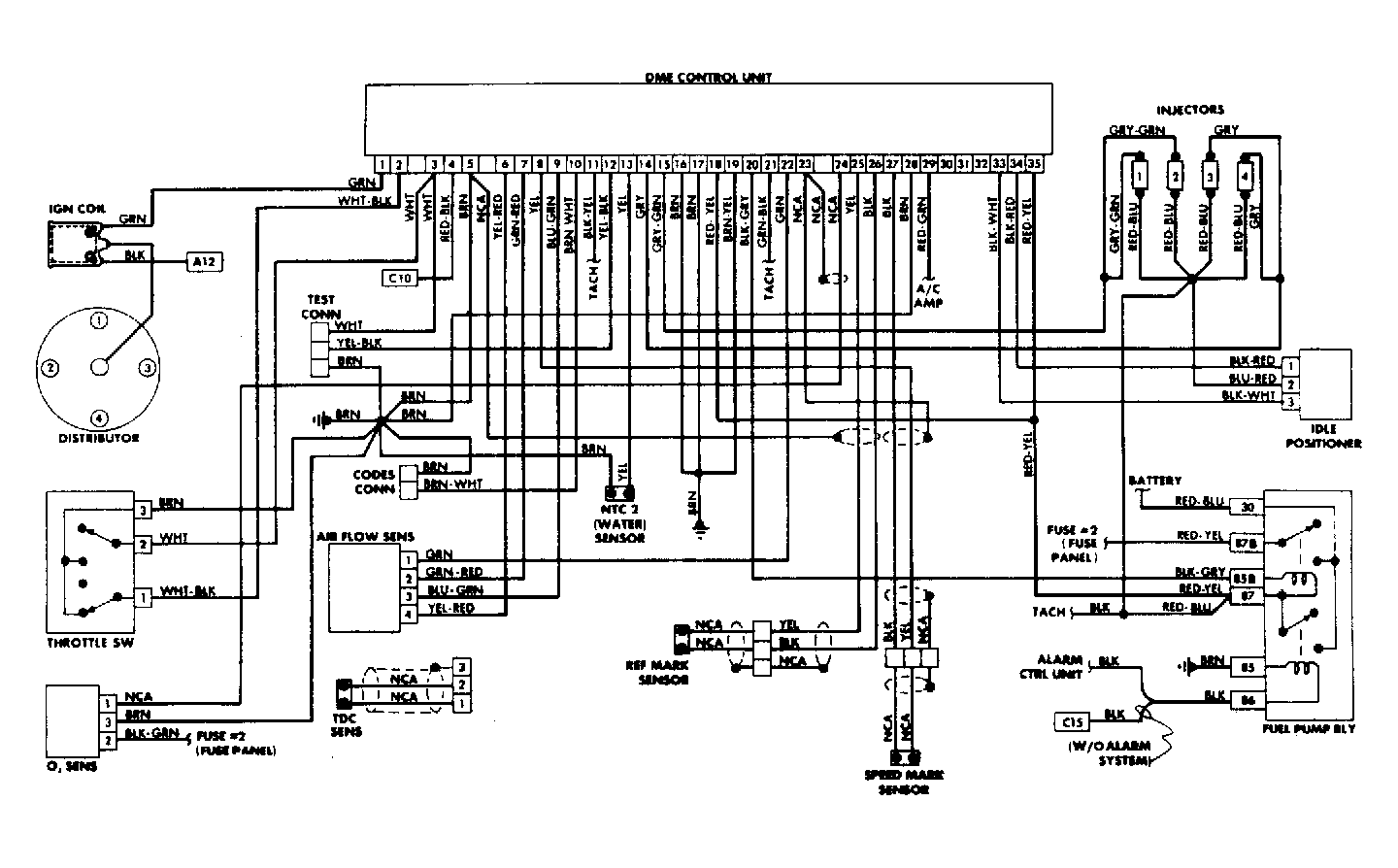

Fig 2: Wiring Diagram for Porsche 924S DME System
G61822
Fig 3: Wiring Diagram for Porsche 944S DME System
G61821

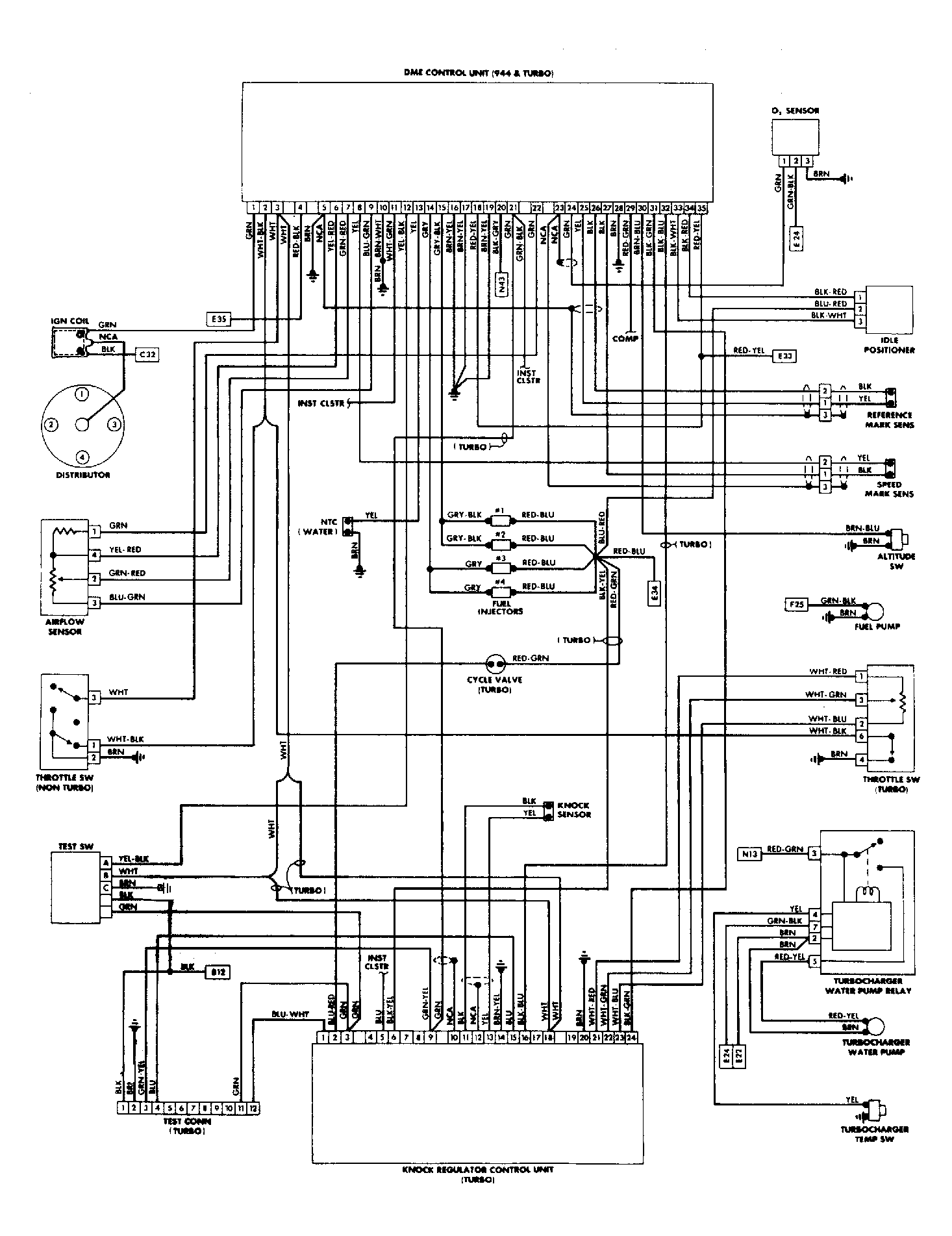

Fig 4: Wiring Diagram for Porsche 944 & 944 Turbo DME System
G61823
