Wiring Diagrams

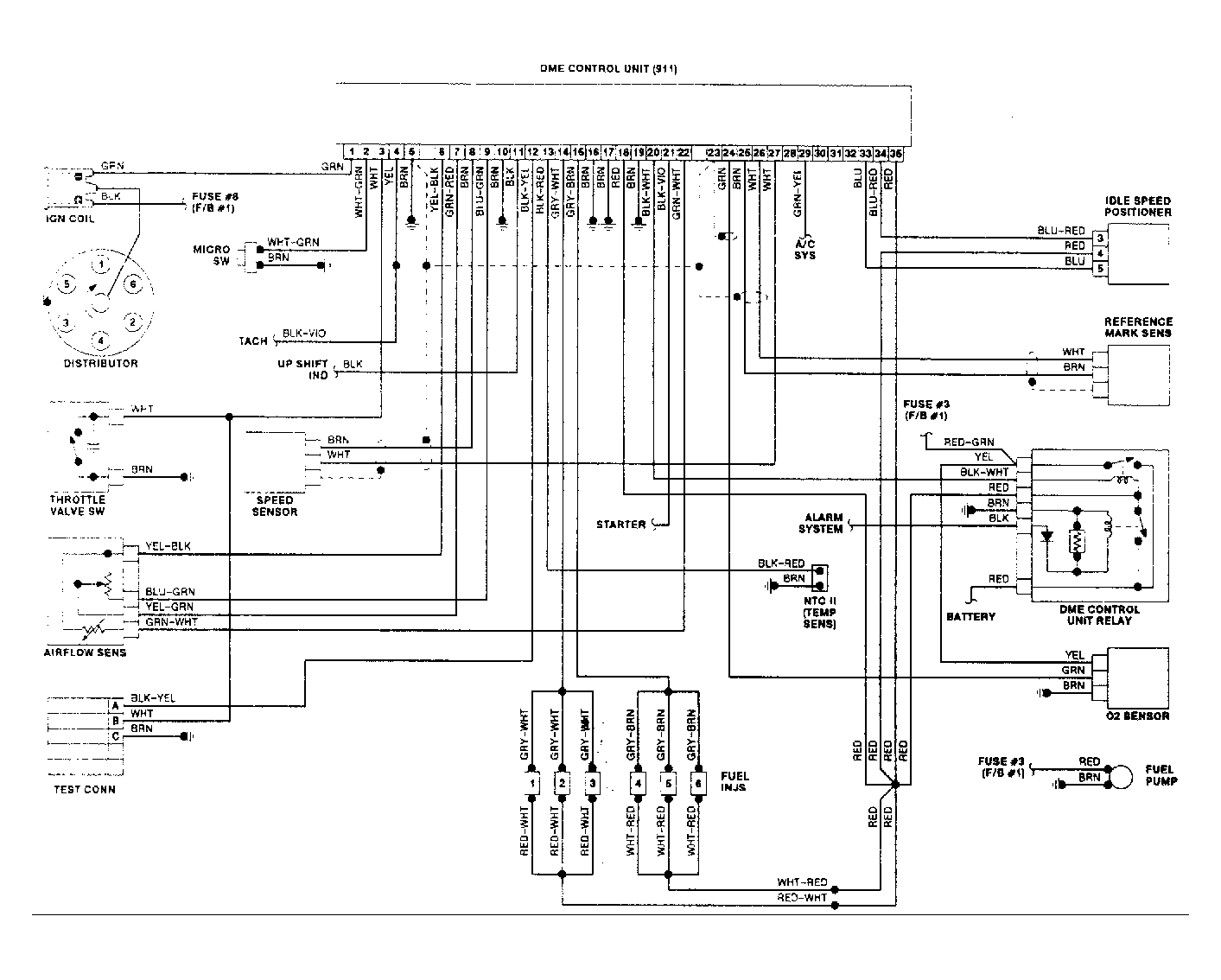

Fig 1: Wiring Diagram for Porsche 911 Carrera (Non-Turbo) DME System
G95055

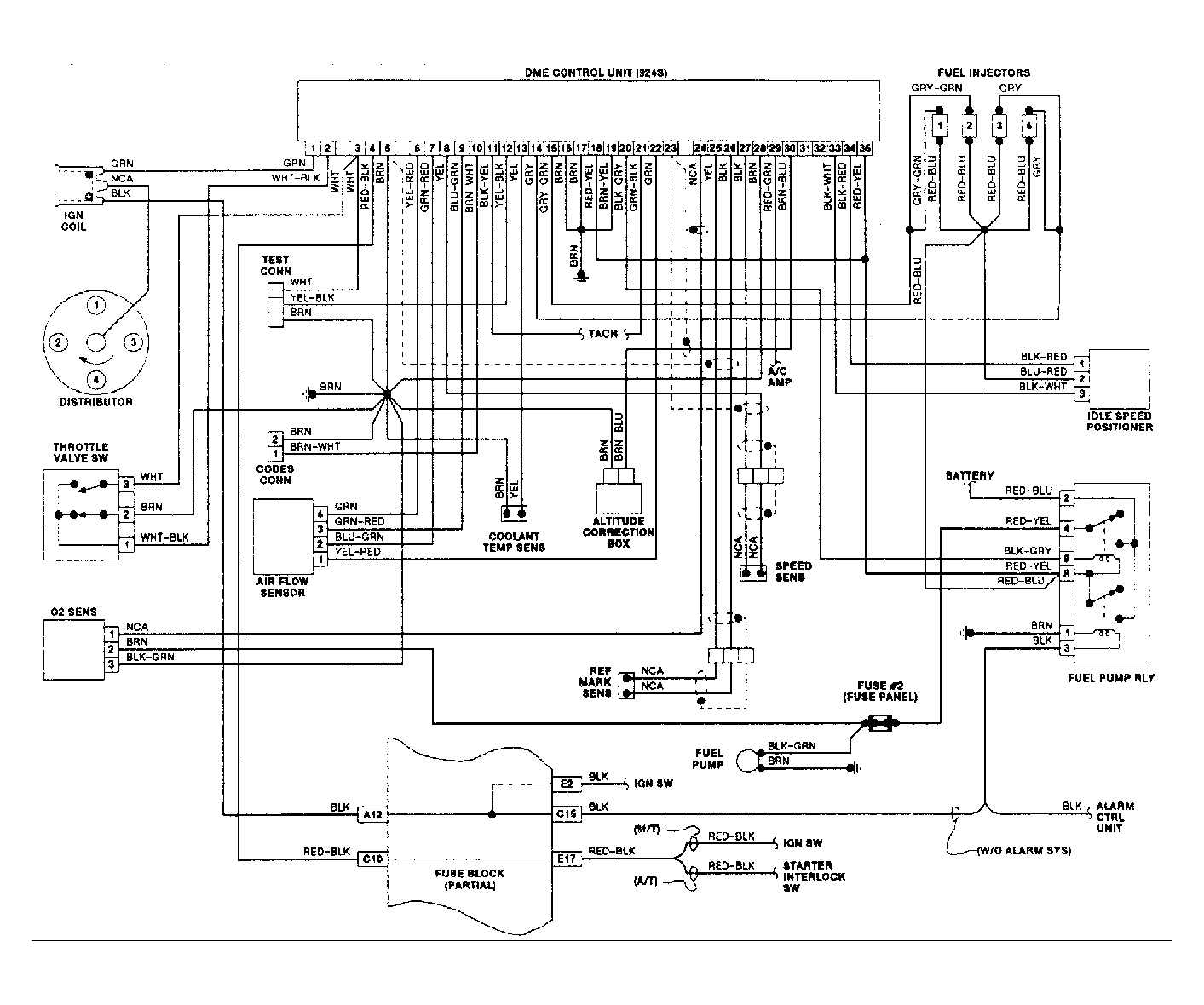

Fig 2: Wiring Diagram for Porsche 924-S DME System
G95056

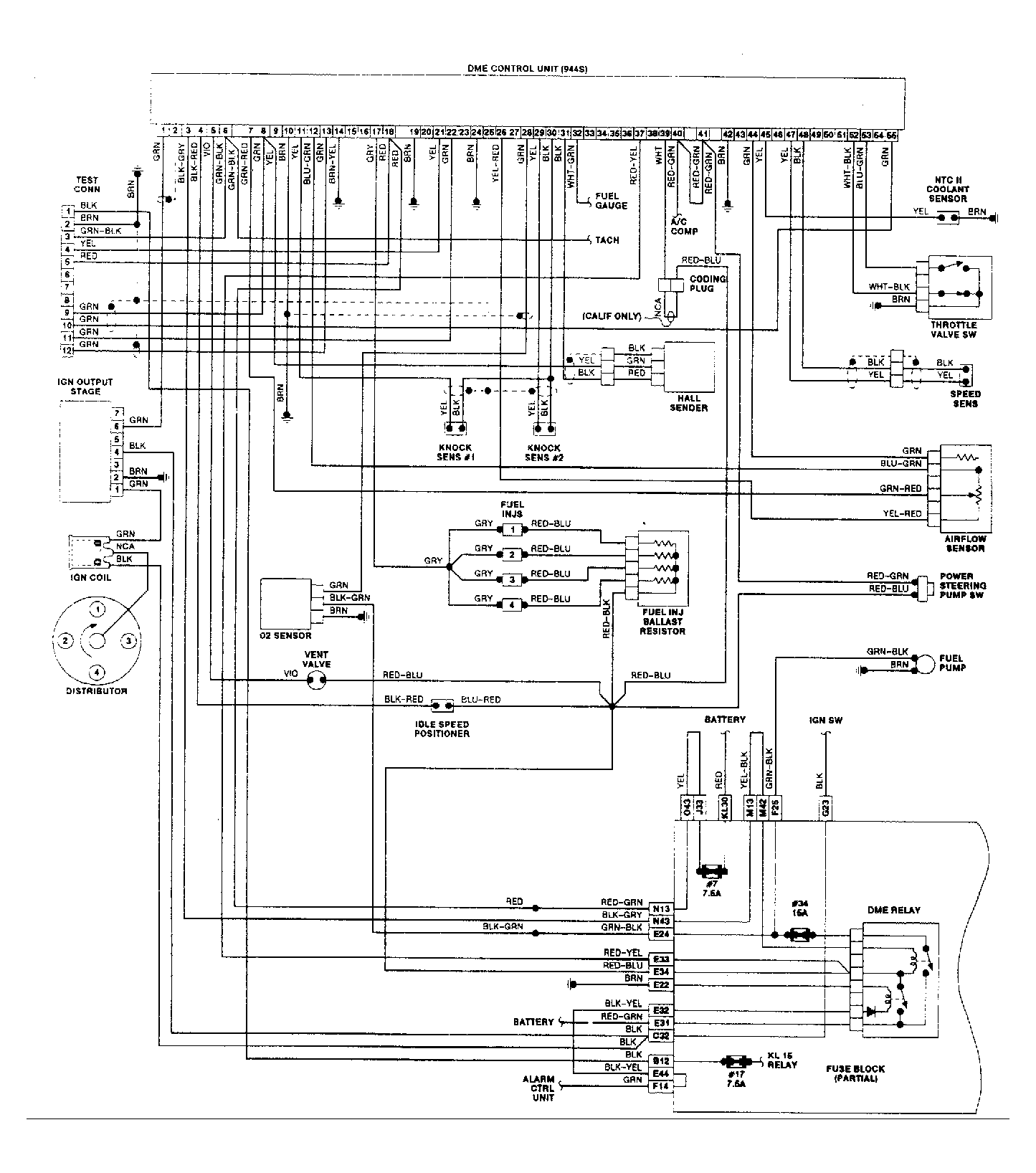

Fig 3: Wiring Diagram for Porsche 944-S DME System
G95057

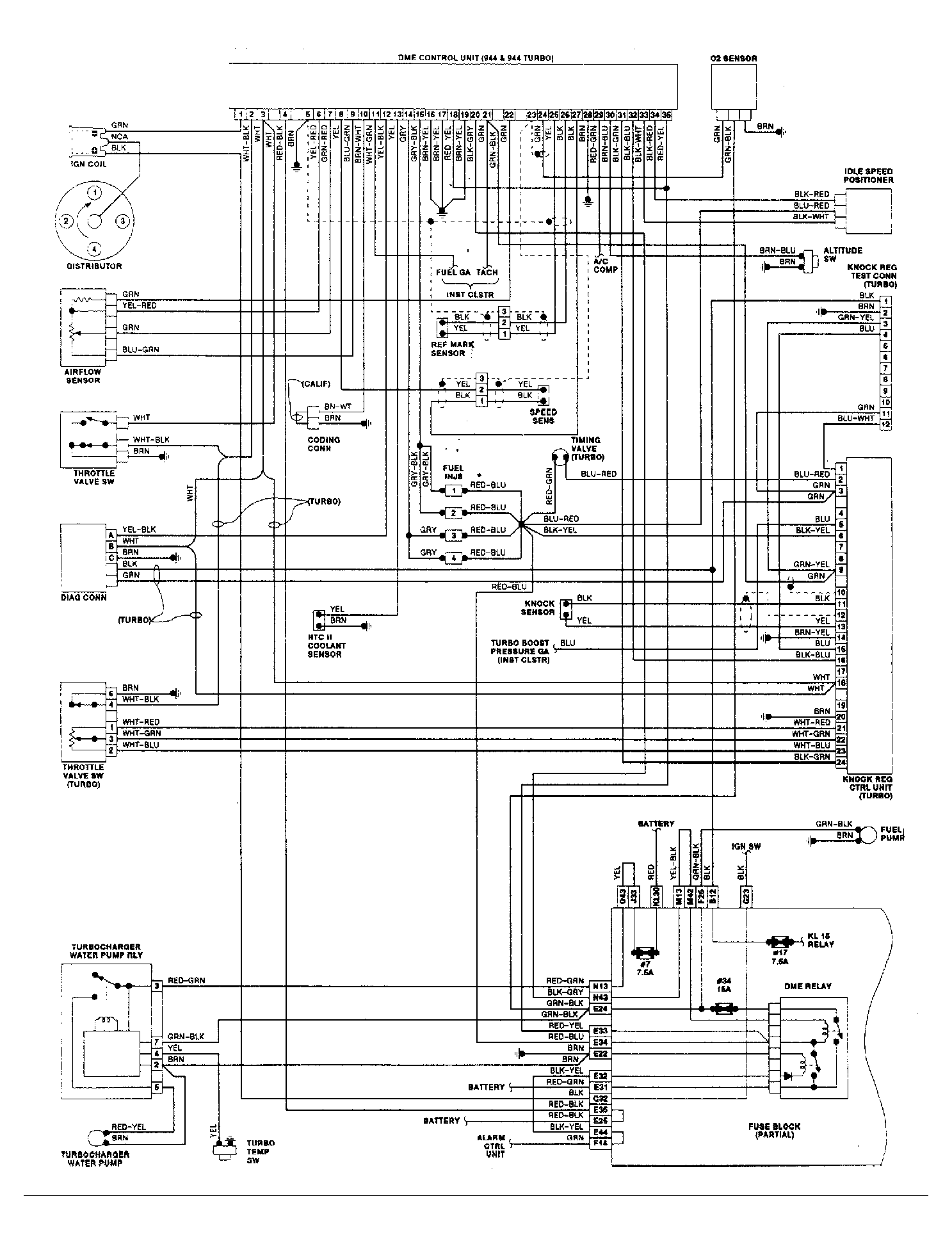

Fig 4: Wiring Diagram for Porsche 944 & 944 Turbo DME System
G95058
