Firing Order & Timing Marks

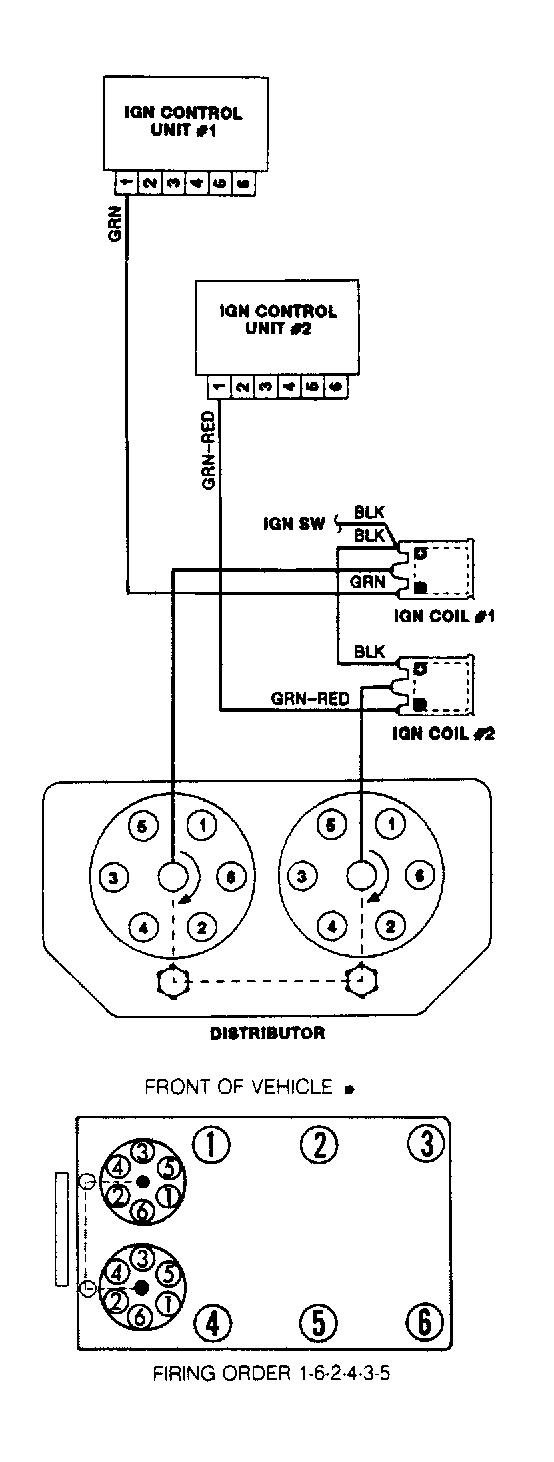

Fig 1: Firing Order & Distributor Rotation (Double Ignition System)
G90I17333
