Adjusting Camber
CAUTION:
On vehicles equipped with the Porsche M 030 Sport Type Suspension, take care not to bend the front brake pipe when adjusting camber.
- Remove brake cooling duct from control arm. This makes the eccentric bolt and clamping bolt accessible.

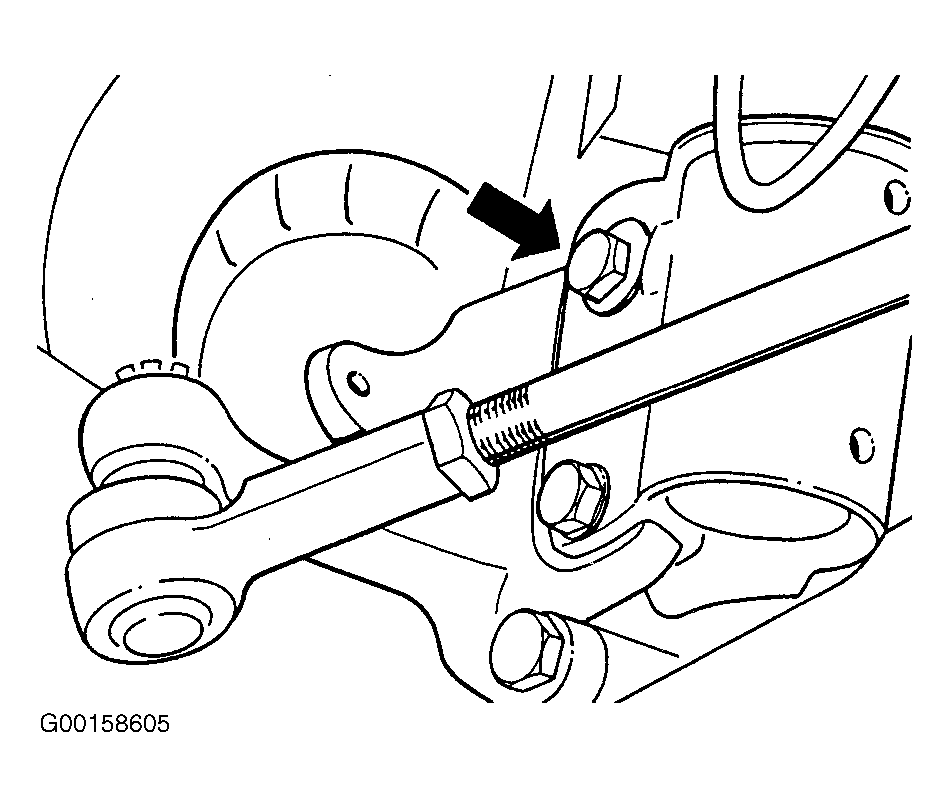

- Turn the eccentric bolt (See Fig 1 ) until camber is at specification. See ALIGNMENT SPECIFICATIONS .
