Checking & Adjusting Ride Height
NOTE:
Torsion bar and wheel center measuring points are taken with reference to tire contact area. Adjustment may not be required, check before loosening bolts. See ALIGNMENT SPECIFICATIONS
.

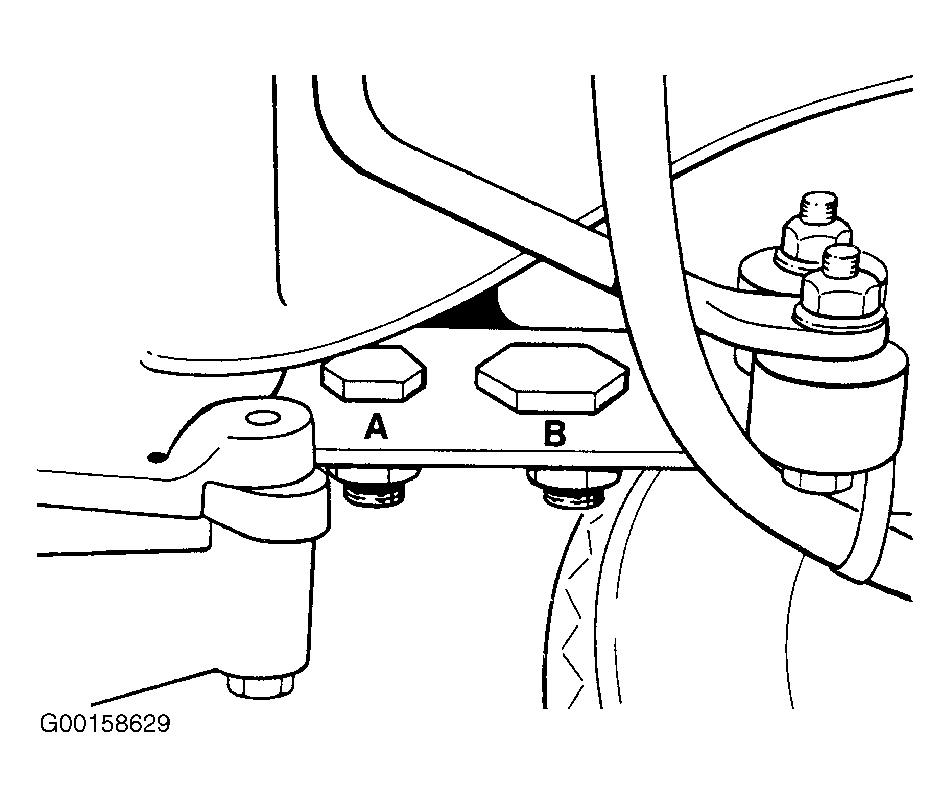

If required, loosen mounting bolt A. Make adjustments by turning eccentric bolt B. See Fig 1 .
