DTC 11: Control Unit

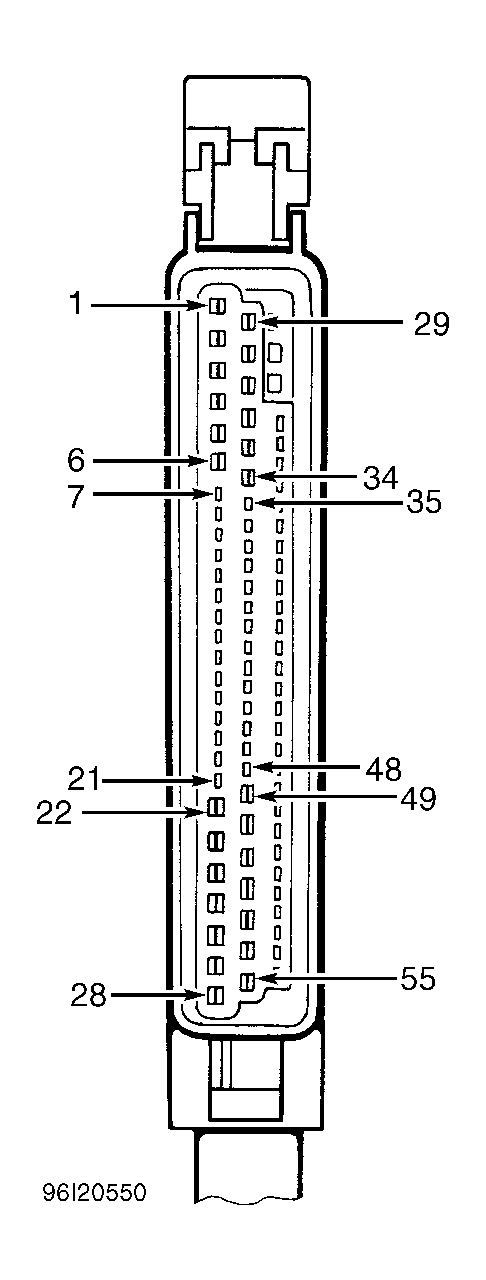

Check ABS control unit connectors and wiring harness for damage. See WIRING DIAGRAMS . Ensure a good ground exists at ABS control unit ground terminals No. 28 and 29. See Fig 1 . Ensure voltage at terminal No. 15 is more than 9.5 volts. If connectors, wiring harness, voltage and ABS control unit ground terminals are okay, replace ABS control unit.
