Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

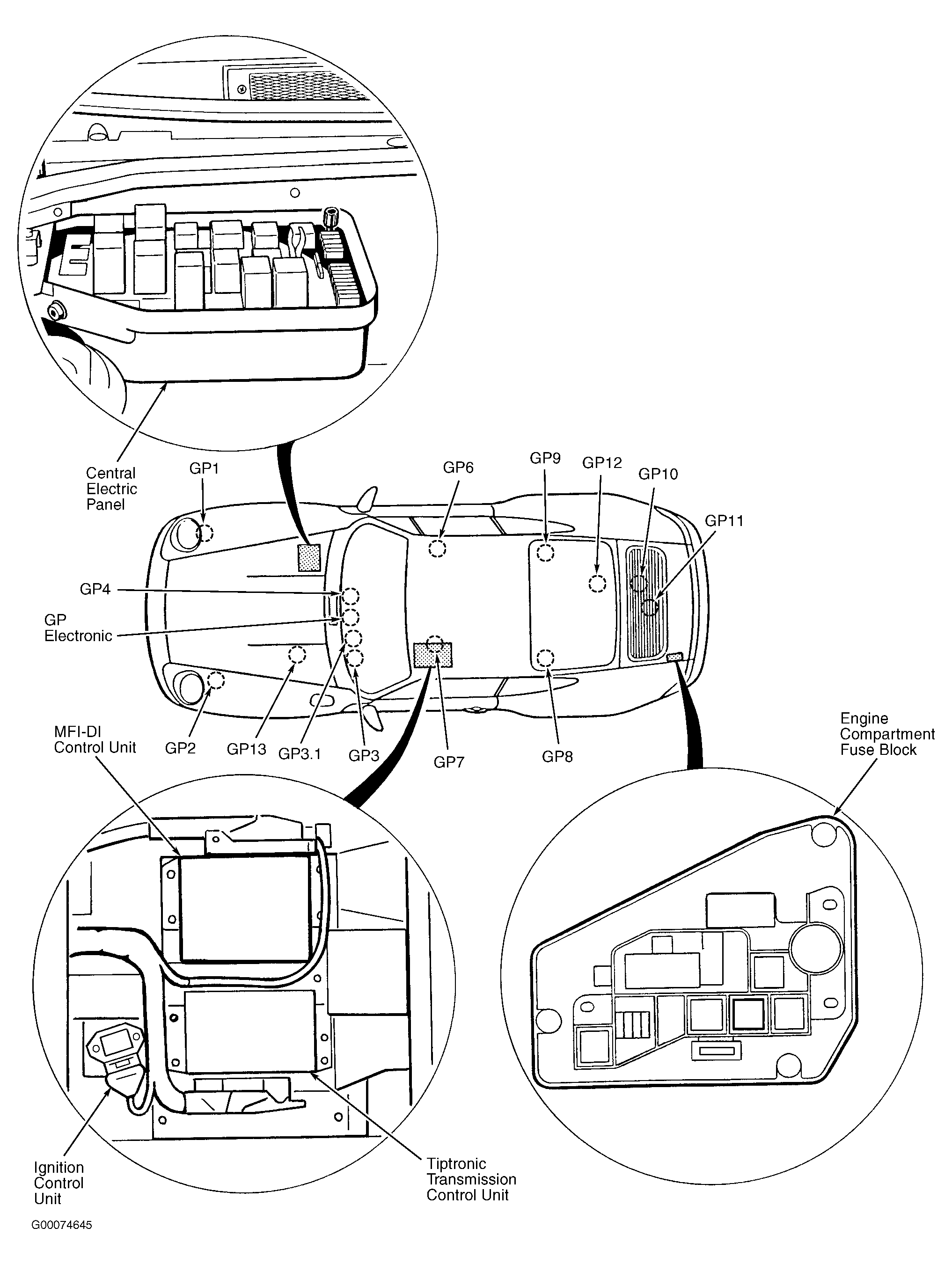

| Central Electric Panel | On right rear of front luggage compartment. See Figure . |
| Engine Compartment Fuse Block | On carrier plate, on left side of engine compartment. See Figure . |
| Luggage Compartment Fuse Block | On left side of luggage compartment, below hydraulic unit cover. |
