Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

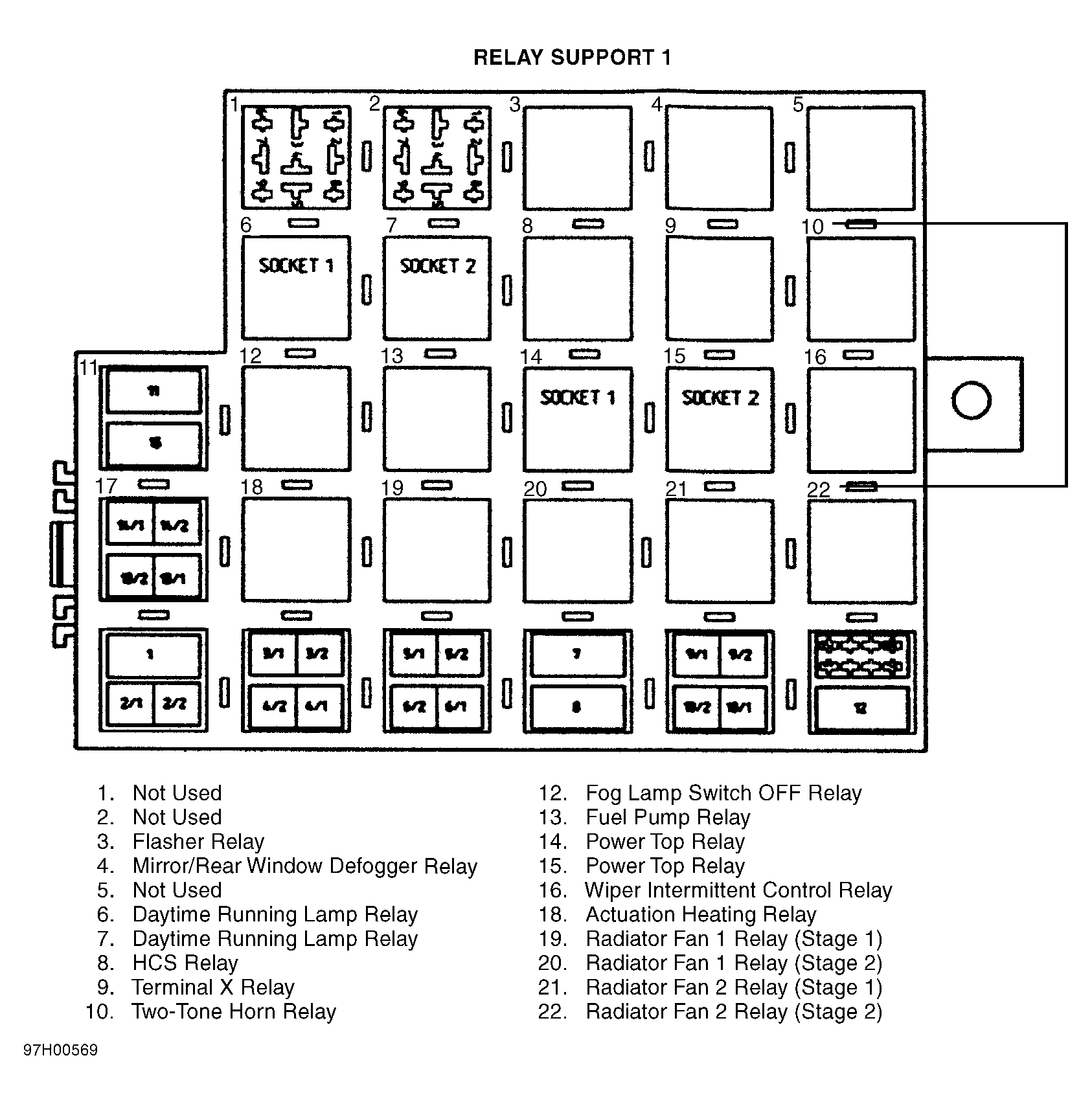

Fig 1: Relay Support 1

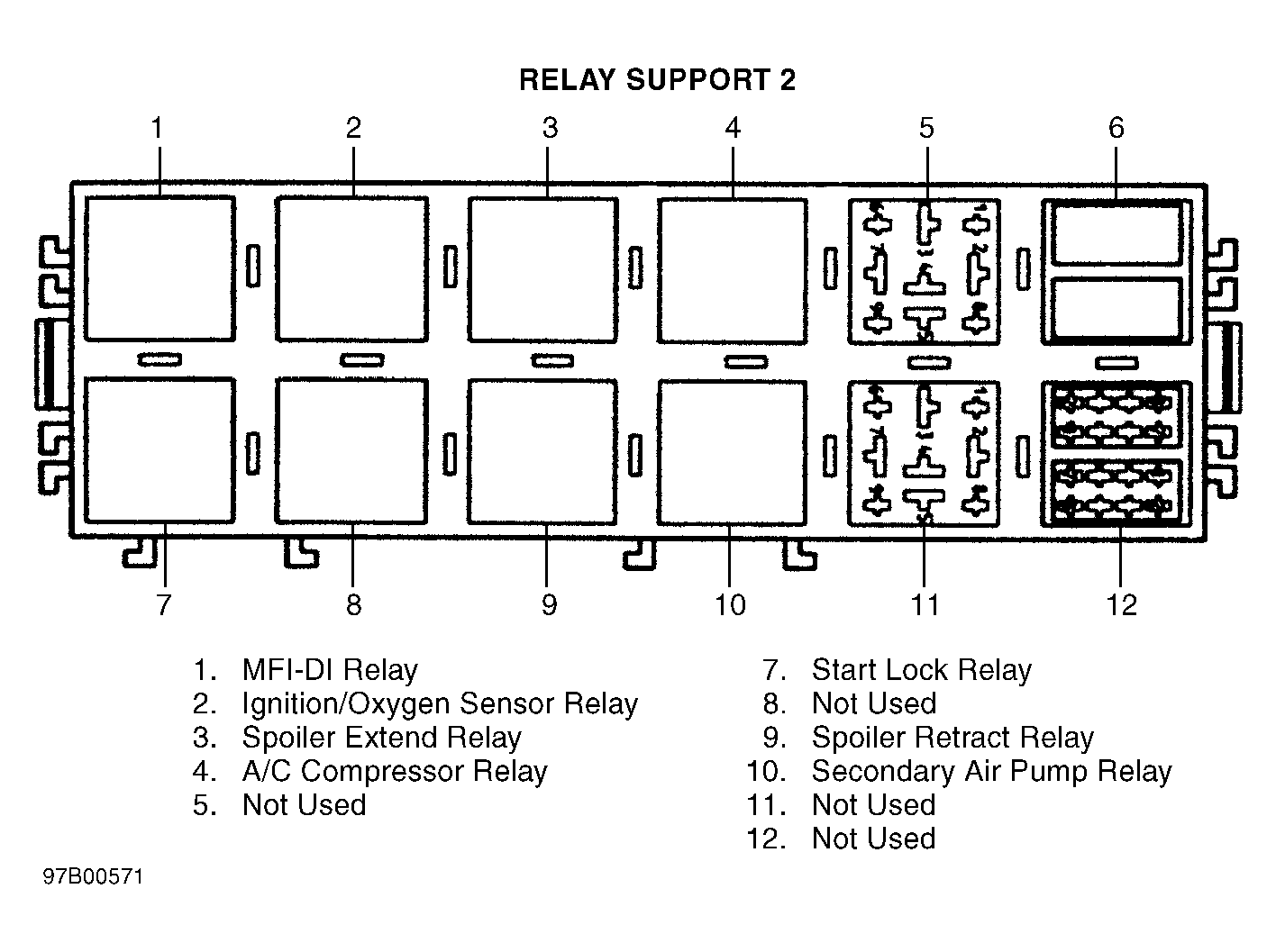

Fig 2: Relay Support 2

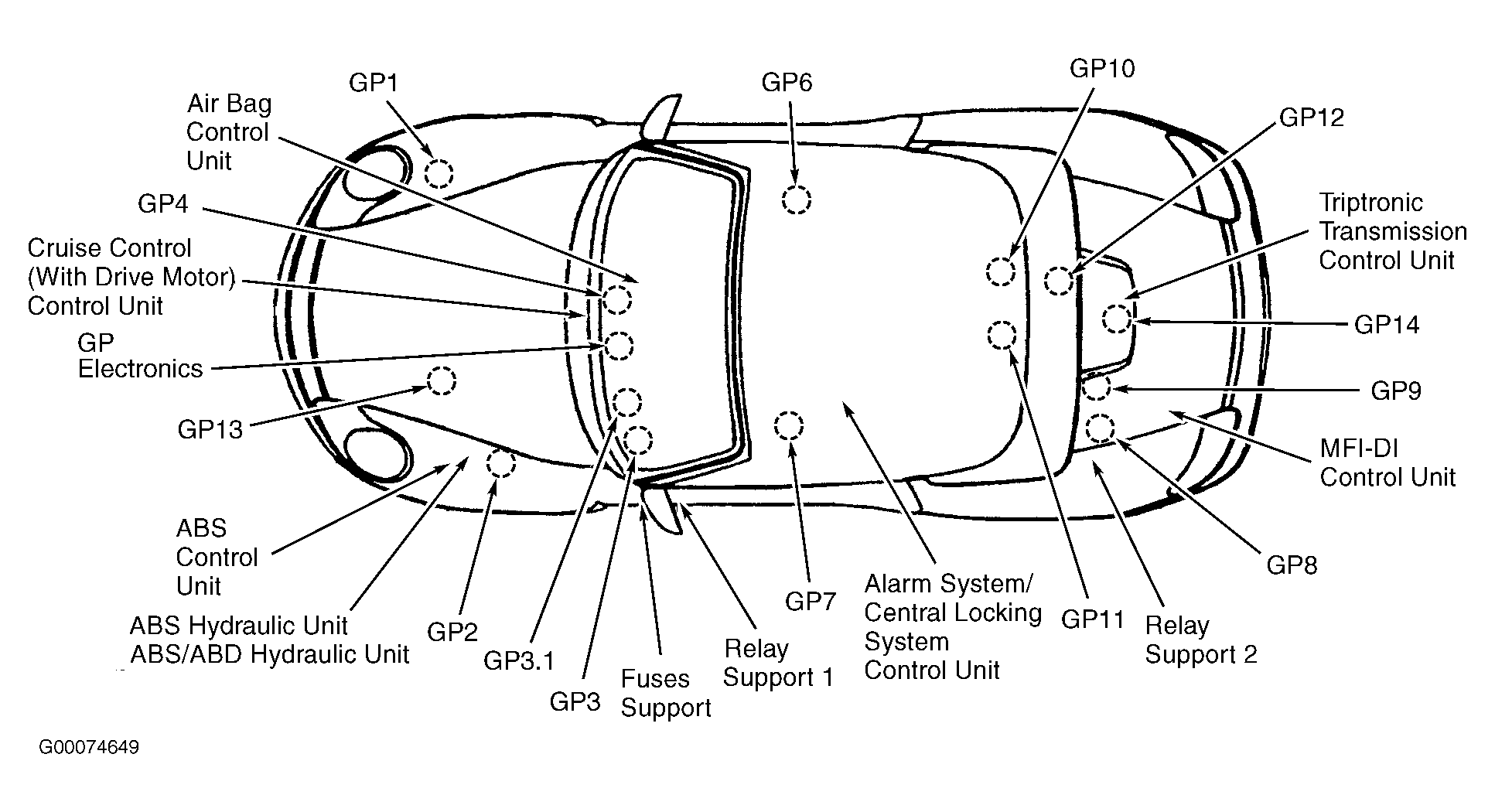

Fig 3: Vehicle Overview
