BOXSTER As Of Mod. '98

Silver bracket (986.423.571.00) and boost spring with white marking (986.423.081.08 or 986.423.081.11 / see boost spring allocation) must be used only in this combination and installed only in the Boxster.

NOTE:
  • The gold-colored bracket (996.423.571.00) and boost spring with purple marking (996.423.081.09 or 996.423.081.11) are assigned to the 911 Carrera (996) and must not be installed in the Boxster.

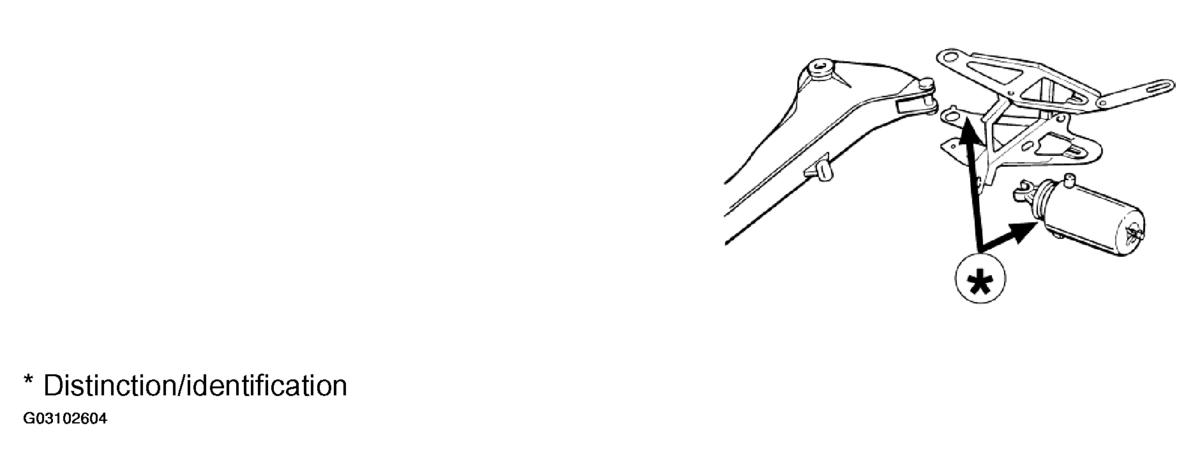

Fig 1: Identifying Gold-Colored Bracket And Boost Spring With Purple Marking
G03102604Courtesy of PORSCHE OF NORTH AMERICA, INC.
