DME 5.2.2 Diagnosis
›
DTC P1386: Knock Control Test Pulse - Signal Implausible
›
Diagnostic procedure
›
Notes
Diagnostic procedure: Notes

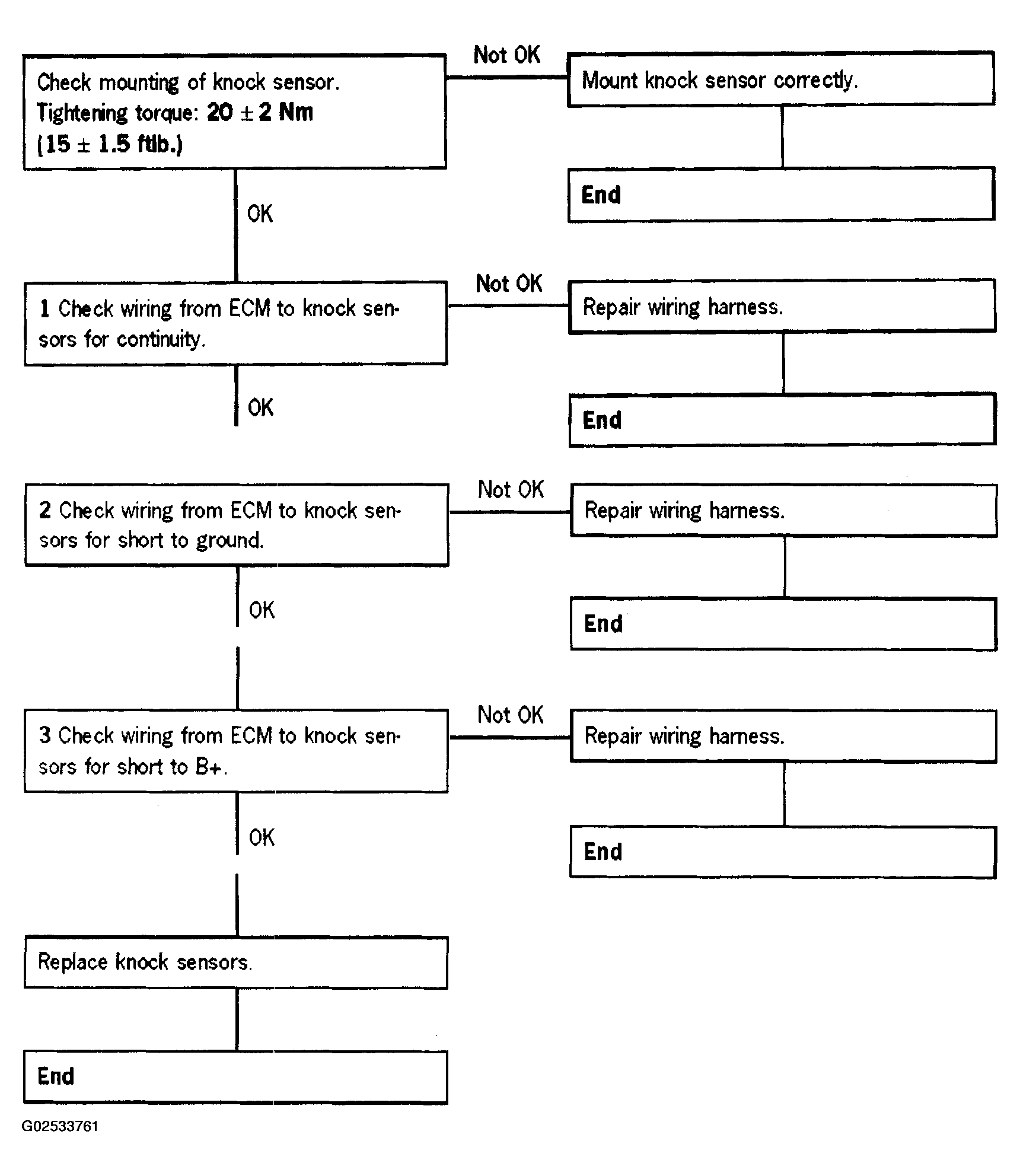

Fig 1: DTC P1384, P1385 & P1386 Diagnostic Procedure (1 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fig 2: DTC P1384, P1385 & P1386 Diagnostic Procedure (2 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
