Removing Control Module For Parking Assistant

Unscrew both fastening screws -arrow- from the cover. See Fig 1 .

Fig 1: Removing Control Module For Parking Assistant
Courtesy of PORSCHE OF NORTH AMERICA, INC.

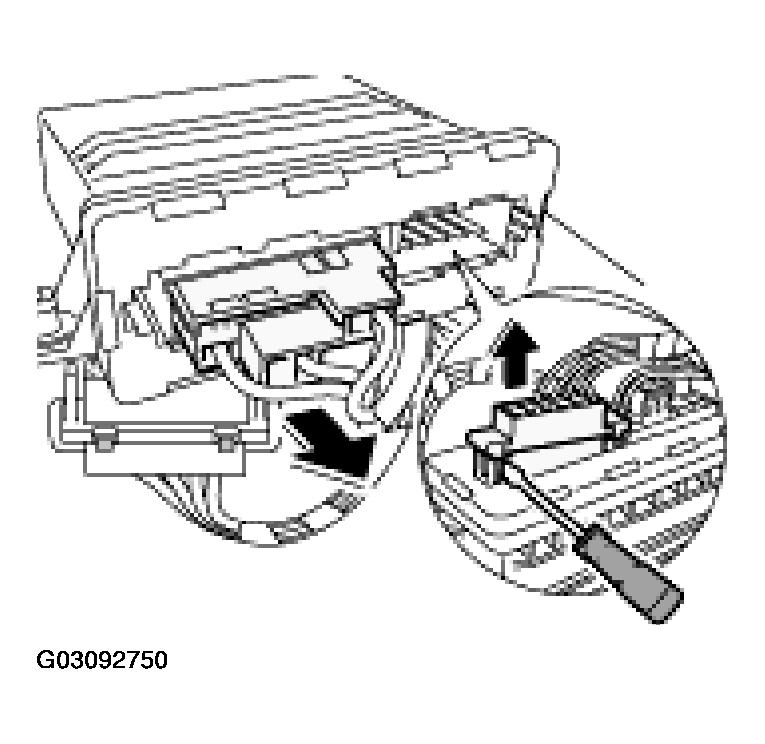

Turn the cover over and disconnect both electrical plugs.

Fig 2: Disconnecting Both Electrical Plugs
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Unscrew the control module from the cover with the two fastening screws.
