Removing and installing front lid hinge

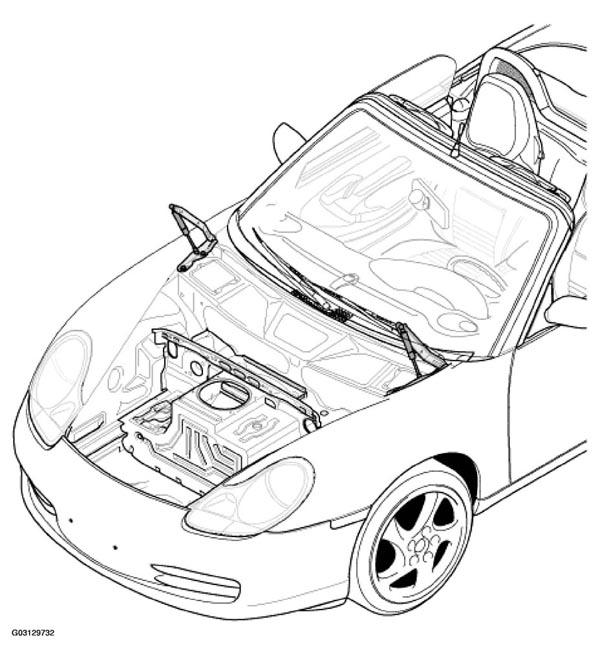

Fig 1: Identifying Front Lid Hinge

Courtesy of PORSCHE OF NORTH AMERICA, INC.

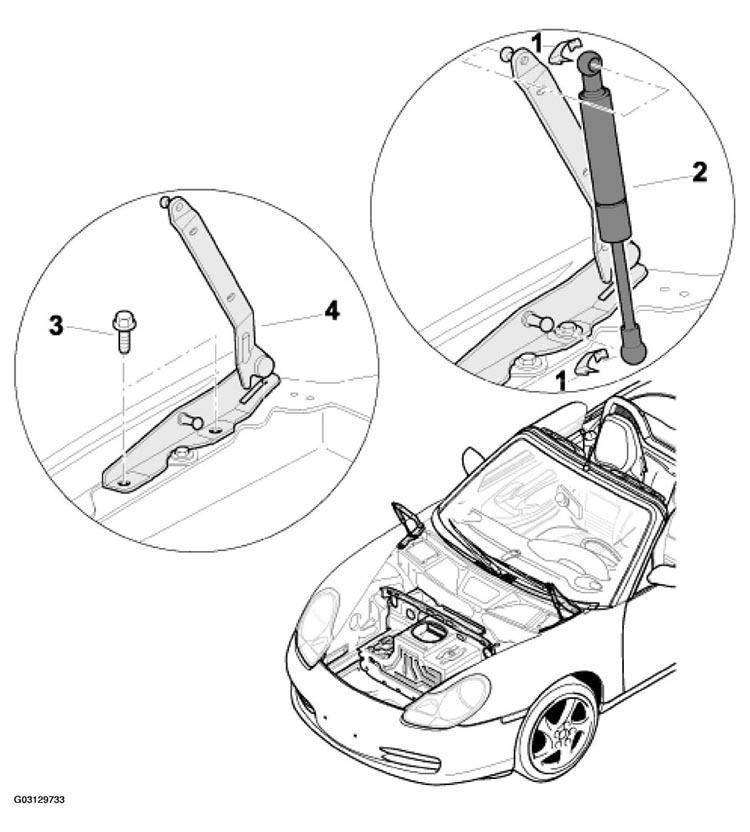

Fig 2: Removing And Installing Front Lid Hinge Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT LID HINGE REMOVING AND INSTALLING PROCEDURE

No.	Designation	Qty.	Removal	Installation
1	Clip	4	Press out with a narrow screwdriver.	Press in.
2	Pneumatic spring	4
3	Combination screw M6 x 14 Hinge	4	Undo fastening screws -3-4- . See Fig 2 .	Position hinge -4-3-10 Nm (7.5 ftlb.)- . See Fig 2 .
4	Hinge	1
