Disassembling And Assembling The Instrument Panel: Notes

NOTE:

• The following components; cover, center nozzle and holder have changed on the instrument panel for model year 2003 (updating of existing models). The instrument panel has a glove compartment and a cupholder. The procedures described in the following are to be carried out for repair work on the components (model year 2003).
• Refer to REMOVING AND INSTALLING LID FOR GLOVE COMPARTMENT .
• Refer to REMOVING AND INSTALLING CUP HOLDER .
• Refer to REMOVING AND INSTALLING DISPLAY AND OPERATOR CONTROL UNIT (PCM) AS OF MODEL YEAR 2003 .
• See ADDITIONAL ASSEMBLY INSTRUCTIONS FOR THE COVER AND CENTER NOZZLE FOR THE INSTRUMENT PANEL - AS OF MODEL YEAR 2003  .

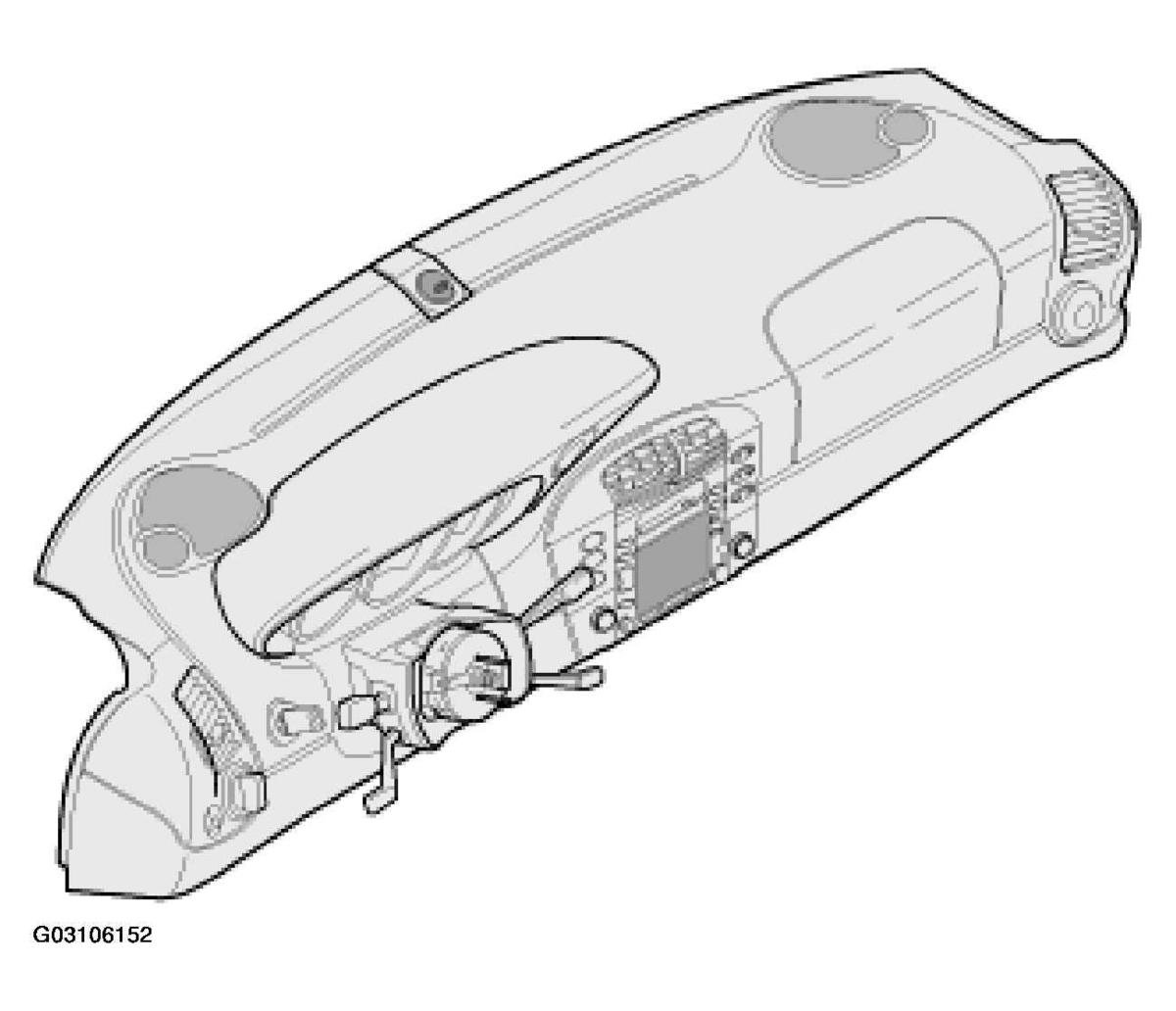

Fig 1: Identifying Instrument Panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.
