Leak test for exhaust system - as of MY 2003: Tools

Item 1: Plug for exhaust system leak test

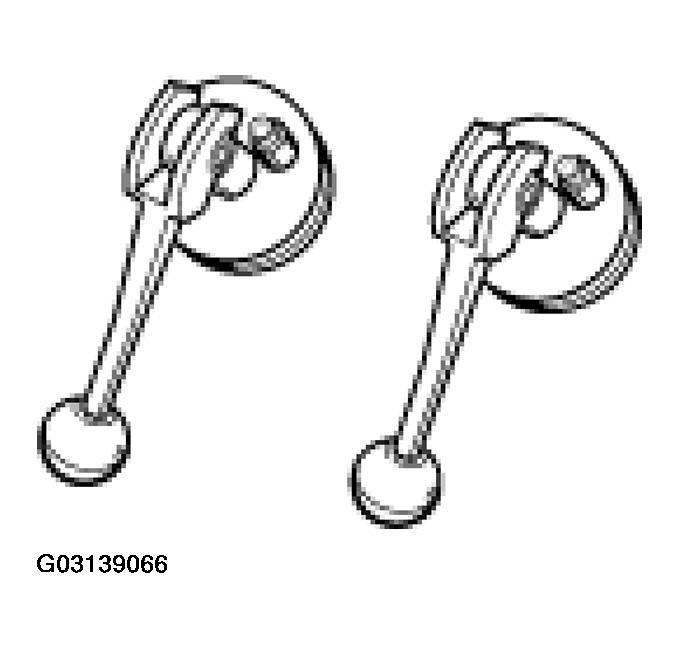

Fig 1: Identifying Exhaust System Leak Test Tool

Courtesy of PORSCHE OF NORTH AMERICA, INC.

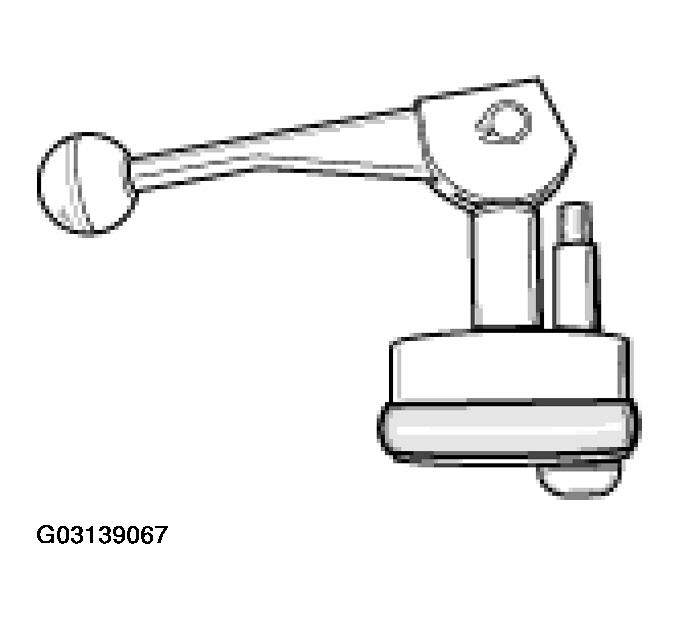

Clamping position: rubber gasket constricted

Fig 2: Identifying Clamping Position (Rubber Gasket Constricted)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS

Item	Special tool designation	Remarks
1		Replacement rubber gaskets must be obtained from the manufacturer (details on the underside of the plug).
2	Leak-locating spray	Example, TPS674 test spray from TEGA in Wurzburg
