Removing And Installing Sealing Ring For Long Flanged Shaft: Removal

Remove long flanged shaft. See REMOVING AND INSTALLING LONG FLANGED SHAFT .
Remove snap ring for ball bearing.

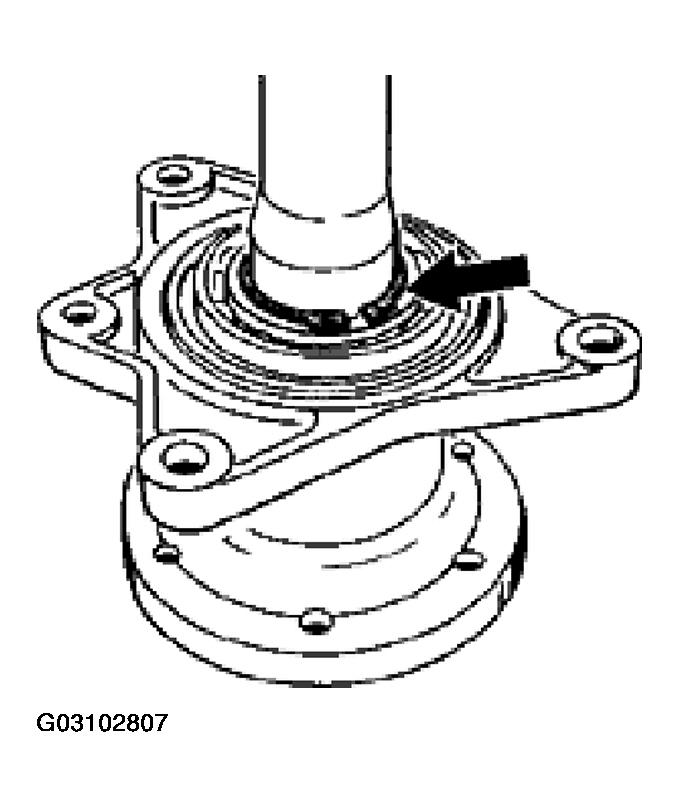

Fig 1: Removing Snap Ring For Ball Bearing
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press flanged shaft out of mounting saddle.

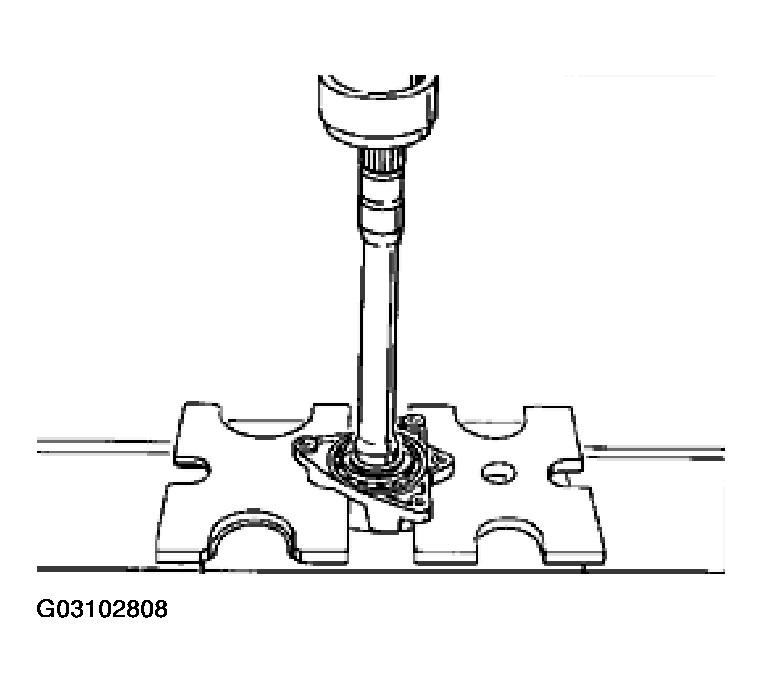

Fig 2: Pressing Flanged Shaft Out Of Mounting Saddle
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Lever sealing ring out of mounting saddle with large screwdriver.
