Removing And Installing The Navigation Unit: Removal

Unclip the cover from the navigation unit on the left and right.
Insert special tool V 160 into the recesses of the navigation unit and engage.

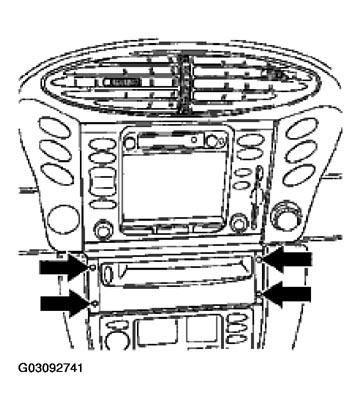

Fig 1: Inserting Special Tool V 160 Into Recesses Of Navigation Unit
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Carefully push out the navigation unit rearward and disconnect plug connections.
