Parking Assistant Control Module

1. Remove driver-side front seat. See FRONT SEAT  .
2. Remove both fastening screws from cover of control module. See Fig 1 .
3. Turn cover over and disconnect both electrical plugs. See Fig 1 .
4. Unscrew control module from cover.
5. To install, follow reverse order of removal. Ensure that wires are not pinched when reconnecting harness.

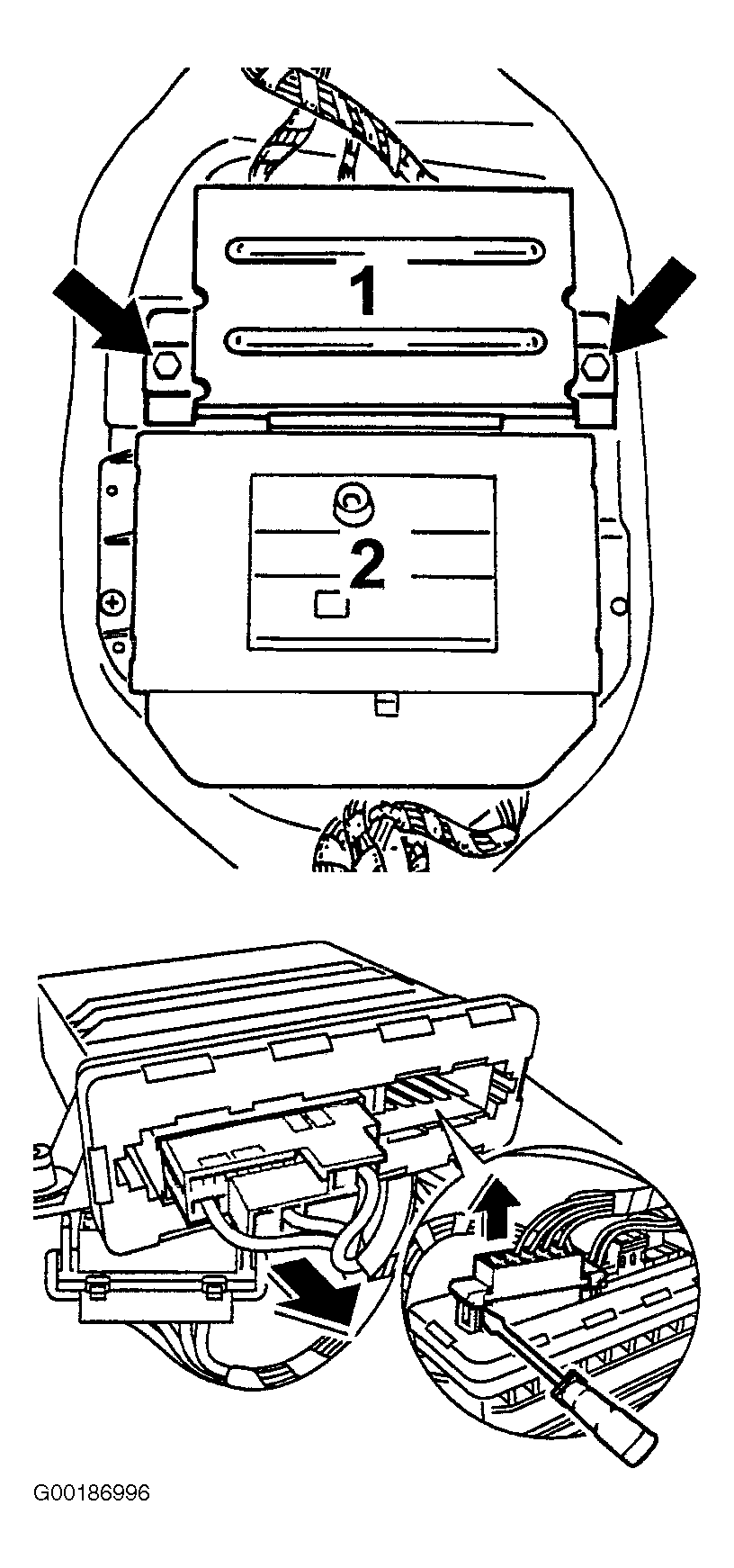

Fig 1: Removing Parking Assistant Control Module

Courtesy of PORSCHE OF NORTH AMERICA, INC.
