Components on the Engine

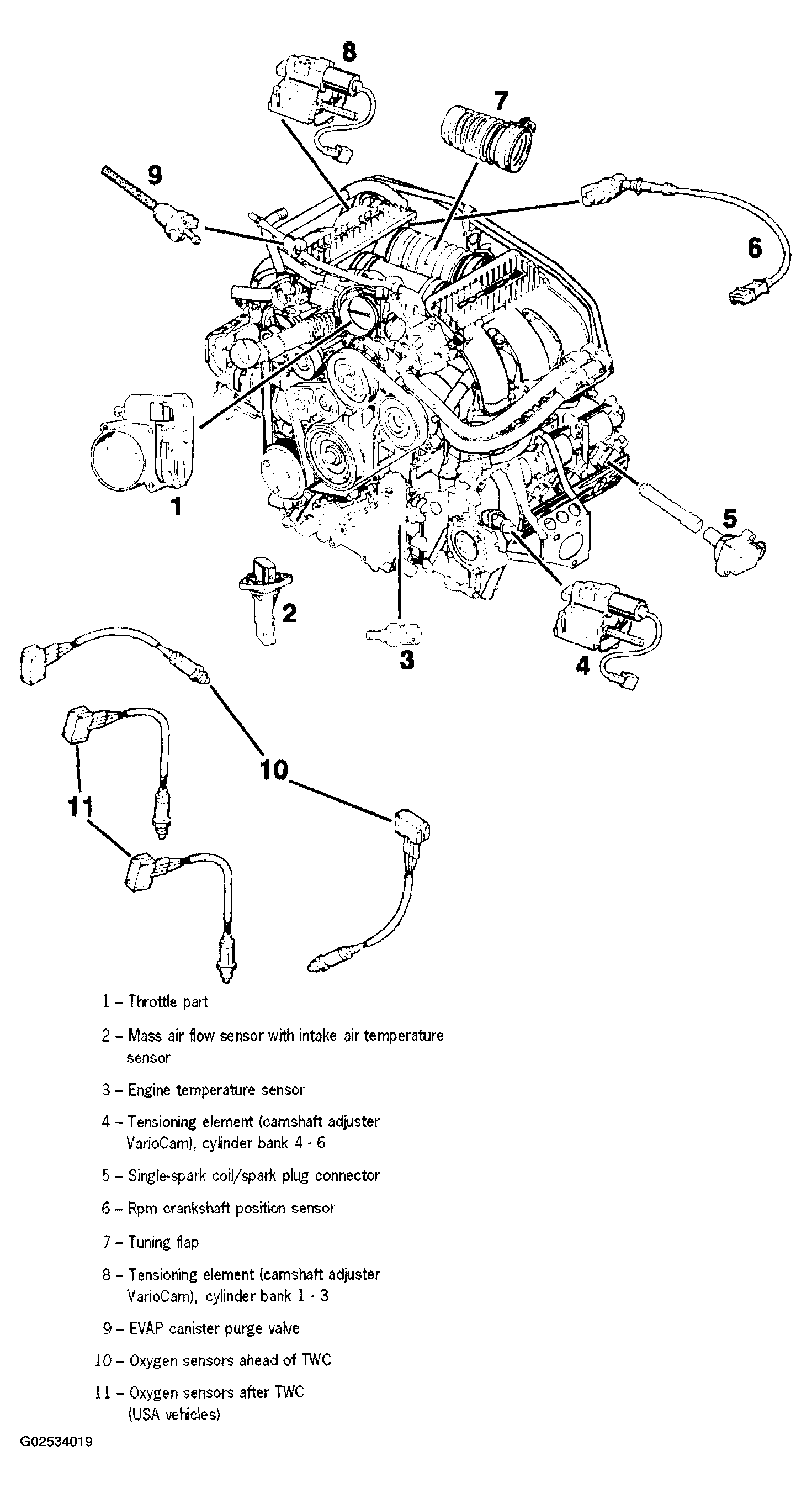

Fig 1: Identifying Components On Engine (1 Of 3)
G02534019Courtesy of PORSCHE OF NORTH AMERICA, INC.

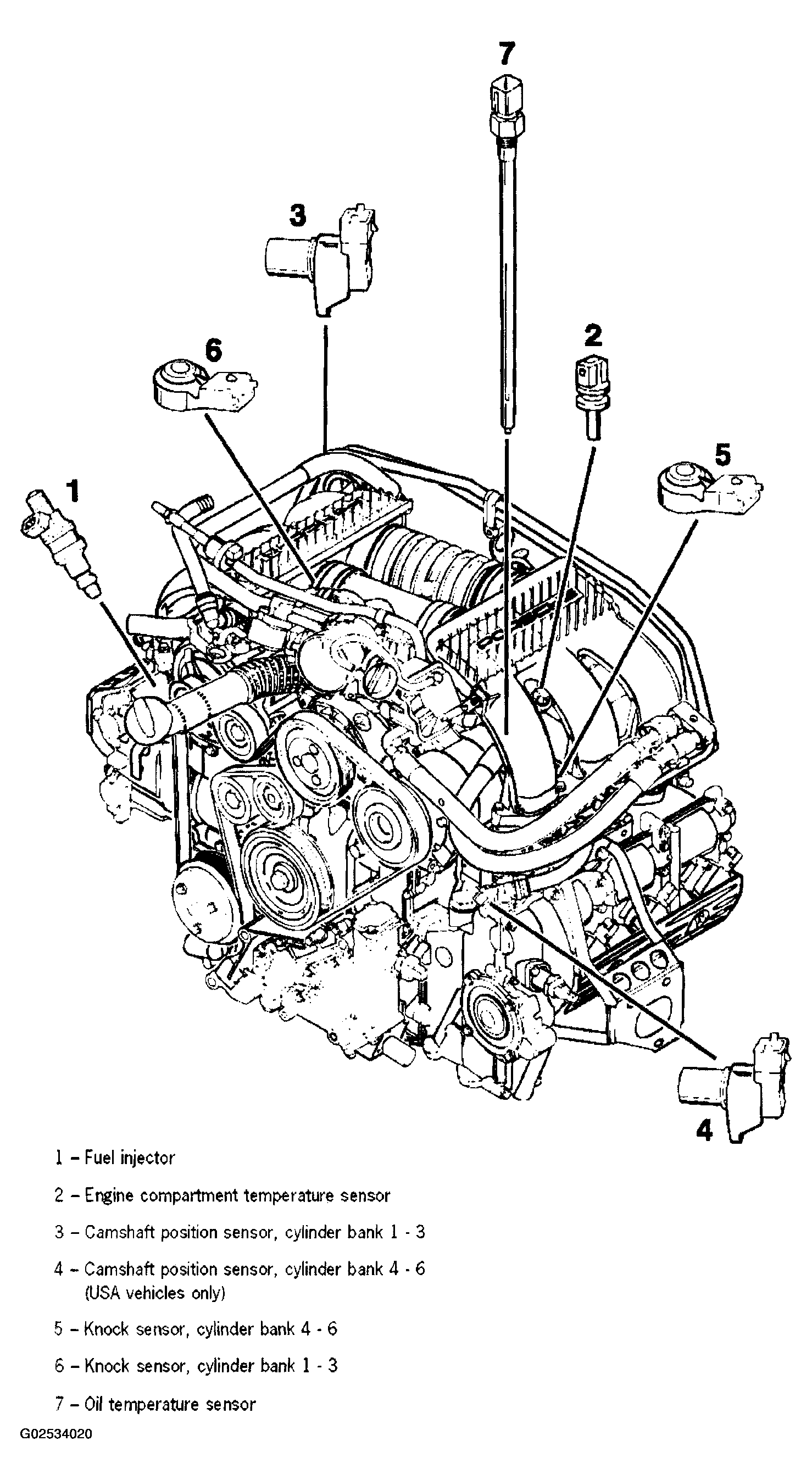

Fig 2: Identifying Components On Engine (2 Of 3)
G02534020Courtesy of PORSCHE OF NORTH AMERICA, INC.

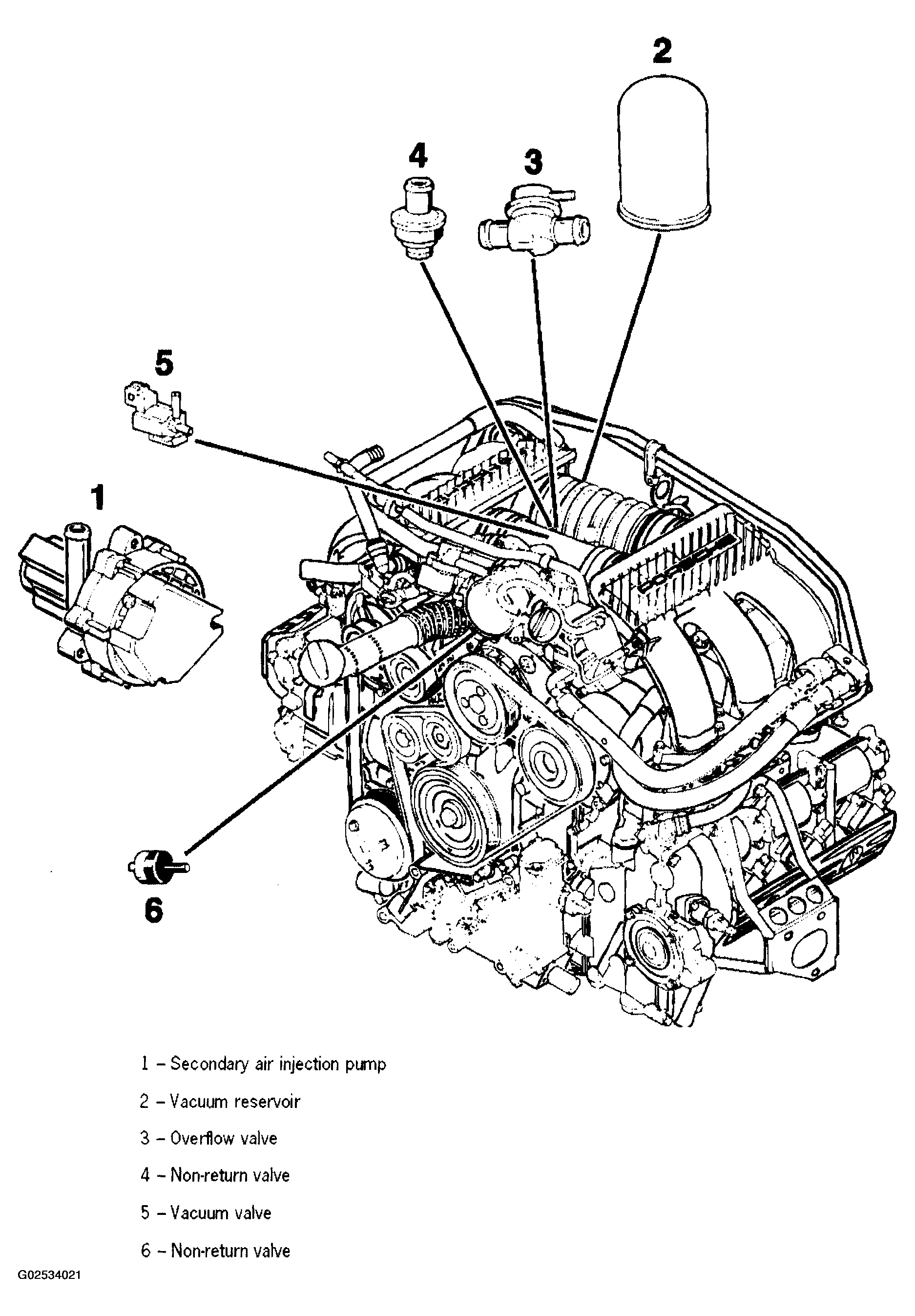

Fig 3: Identifying Components On Engine (3 Of 3)
G02534021Courtesy of PORSCHE OF NORTH AMERICA, INC.
