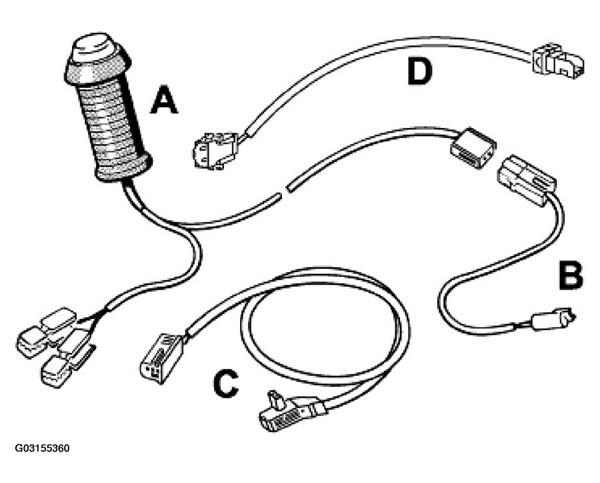

Disposal of airbag and belt tensioner units: Tools

Fig 1: Identifying Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

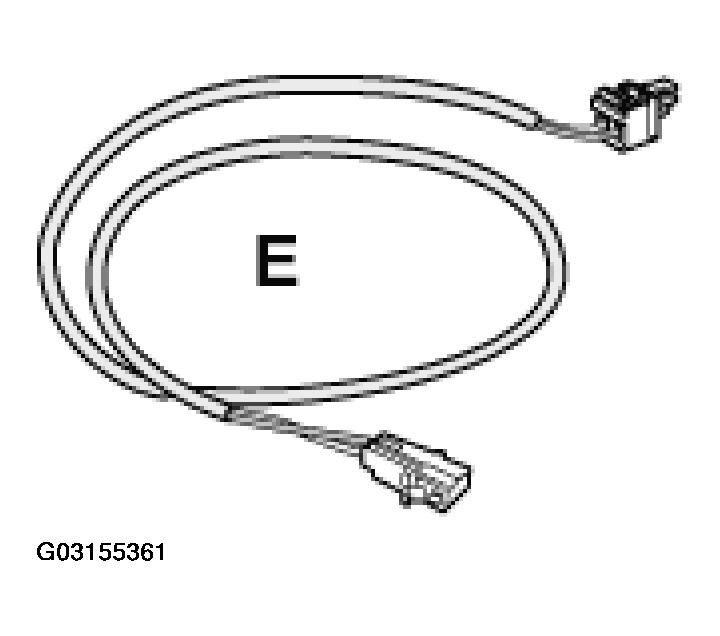

Ignition cable for belt tensioner

Fig 2: Identifying Ignition Cable For Belt Tensioner

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL

Item	Designation	Special tool	Remarks
A	Ignition device	9257(1)
B	Ignition cable	9567	For driver's airbag
C	Ignition cable	9566	For passenger's airbag
D	Ignition cable	9257/2	For side airbag
E	Ignition cable	9257/3	For belt tensioner
(1) Order if required
