Removing side airbag unit

WARNING: Danger of injury and damage to property as a result of incorrect handling of airbag units!
Always observe the safety regulations for handling airbag units! Siege such. Refer to Safety regulations for vehicles with airbag and belt tensioner  .
  • The airbag unit must always be deposited so that the airbag opening faces upwards!
  • If removed for an extended period, the airbag unit must be kept in a locked place!
  • Remove ignition key. Disconnect the battery and cover battery terminal. Refer to BATTERY .
  • After the battery is disconnected, always wait for 1 minute before disconnecting the airbag plugs.
  1. Remove ignition key.
  2. Disconnect the battery and cover terminal or battery.
  3. Remove the door panel, see DISASSEMBLING AND ASSEMBLING DOOR .
    NOTE:
    • Behind the Airbag inscription, there is an M5x10 fastening screw that is fastened to the fastening clip of the side airbag unit.
  4. Remove the cover with the Airbag inscription and undo the M5x10 fastening screw.

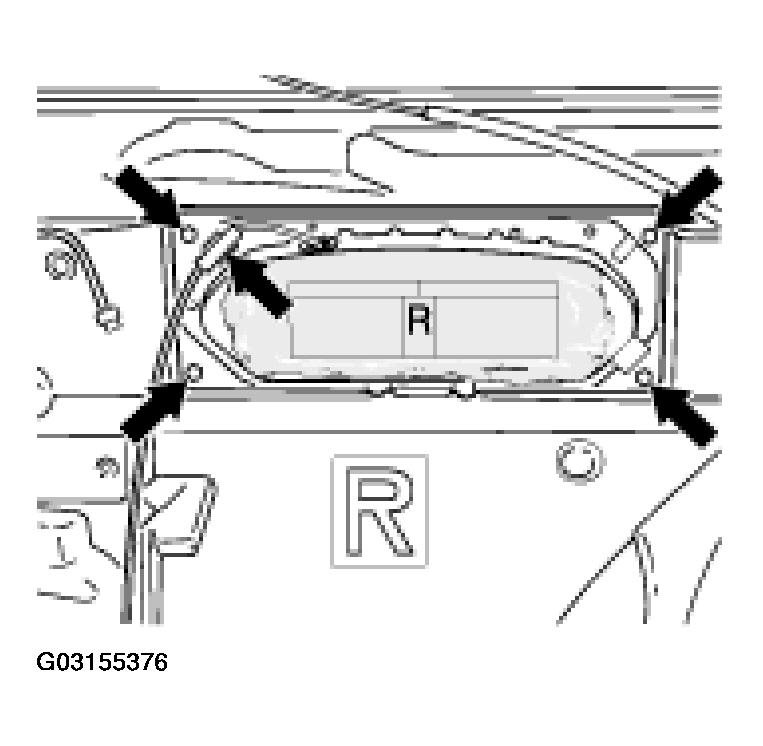

    Fig 1: Removing Cover With Airbag Inscription
    G03155376Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Disconnect the electrical plug connection.
  6. Undo four M6x16 fastening screws.
    NOTE: Since 03.11.1999, the fastening screws are micro-encapsulated. The four M6x16 fastening screws must be replaced each time they are loosened.
  7. Carefully remove side airbag unit from the door and put it down properly.

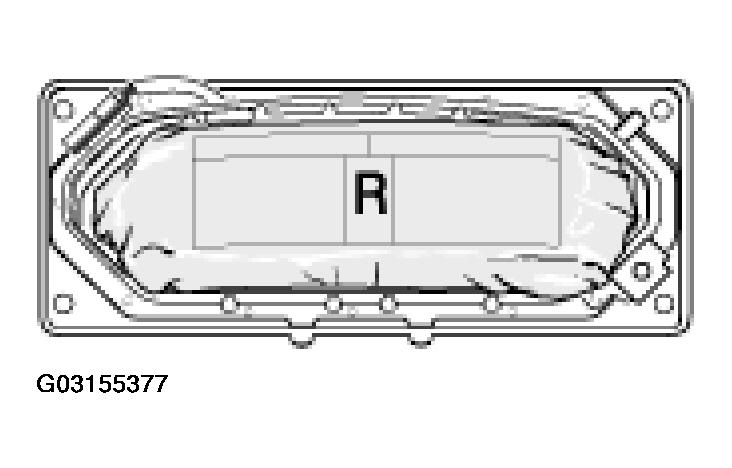

Fig 2: Removing Side Airbag Unit From Door
G03155377Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
  • The airbag unit must be placed in a package or packed in film and, if removed for an extended period, stored under dry conditions in a locked room.
