Adjustment values for suspension alignment: Notes

The following values relate to the empty weight. This means: full fuel tank, vehicle with spare wheel and tools, but without driver and without additional weights.

The vehicle height depends on the wheel size (16,17 or 18-inch).

Vehicle height - Boxster and Boxster S

VEHICLE HEIGHT SPECIFICATIONS - BOXSTER AND BOXSTER S

	Wheel size	USA: Series and Sport	RoW: Series	RoW: Sport
Front-axle height

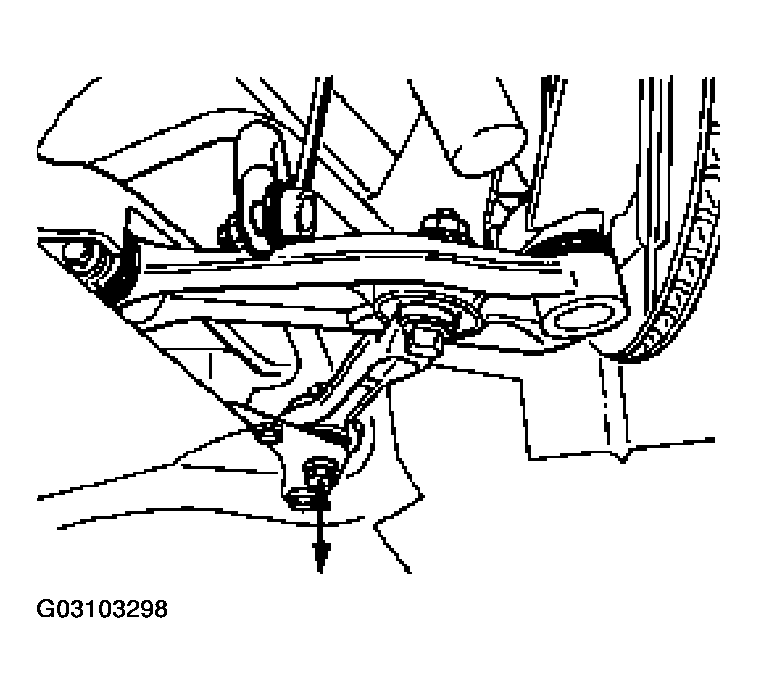

From road contact surface to lower edge of hexagon-head bolt (a/f 18) of the tension-strut screw connection to the body. See Figure .	16-inch	149 +/- 10 mm	139 +/- 10 mm	129 +/- 10 mm
	17-inch	154 +/- 10 mm	144 +/- 10 mm	134 +/- 10 mm
	18-inch	155 +/- 10 mm	145 +/- 10 mm	135 +/- 10 mm
Rear-axle height

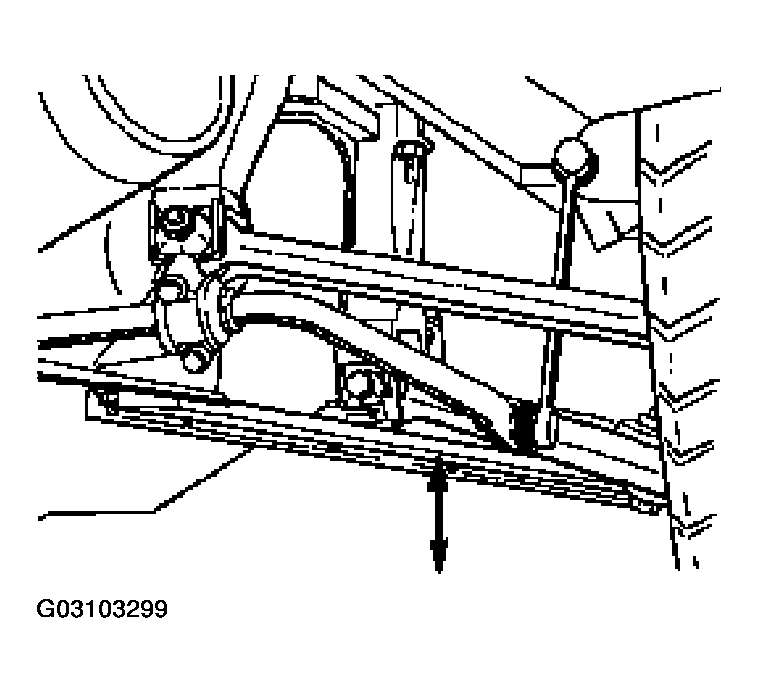

From road contact surface to lowest surface of the diagonal brace at the control-arm securing point. See Figure .	16-inch	144 +/- 10 mm	144 +/- 10 mm	134 +/- 10 mm
	17-inch	148 +/- 10 mm	148 +/- 10 mm	138 +/- 10 mm
	18-inch	151 +/- 10 mm	151 +/- 10 mm	141 +/- 10 mm
