Disassembling and assembling door handle

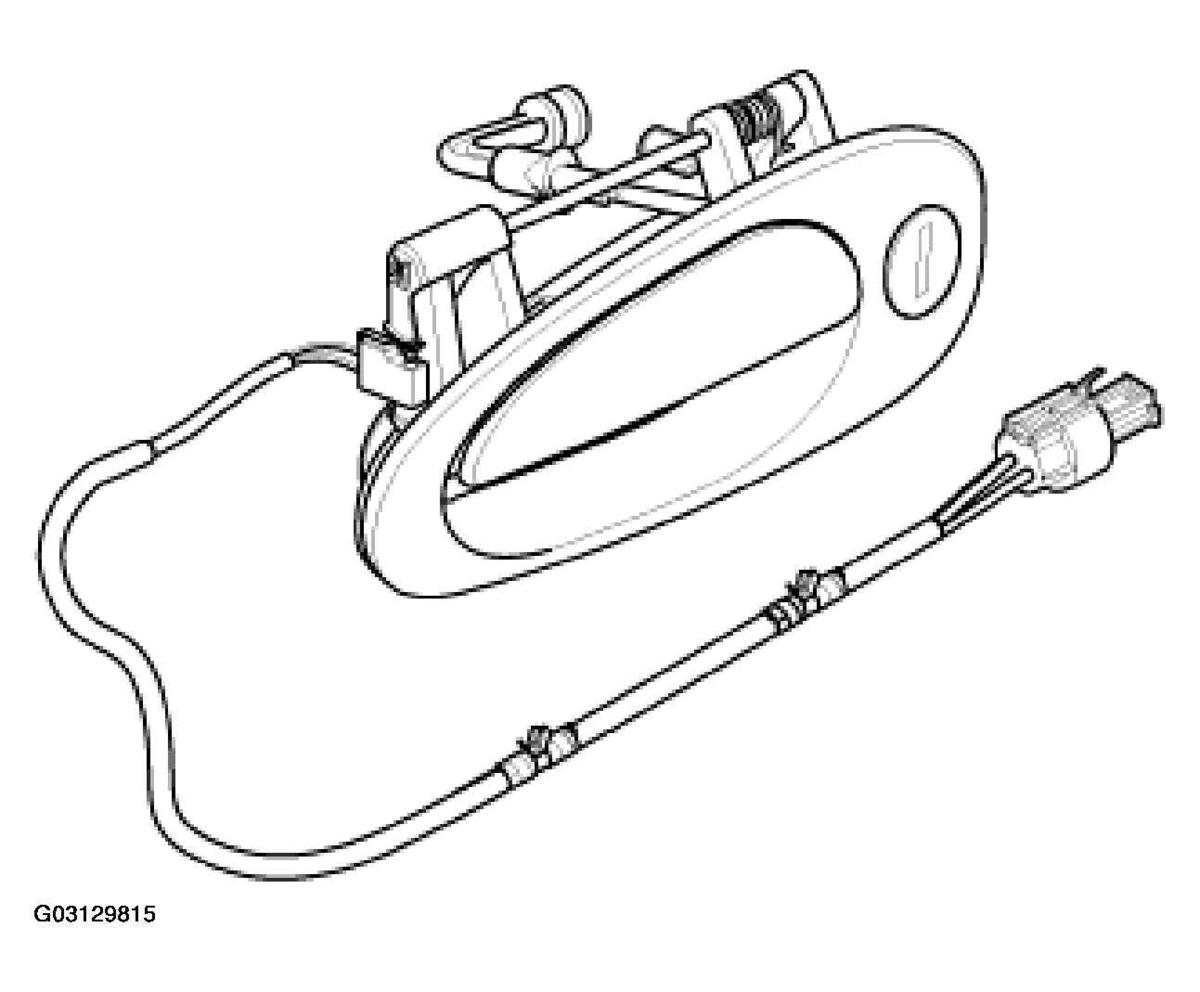

Fig 1: View Of Exterior Door Handle

Courtesy of PORSCHE OF NORTH AMERICA, INC.

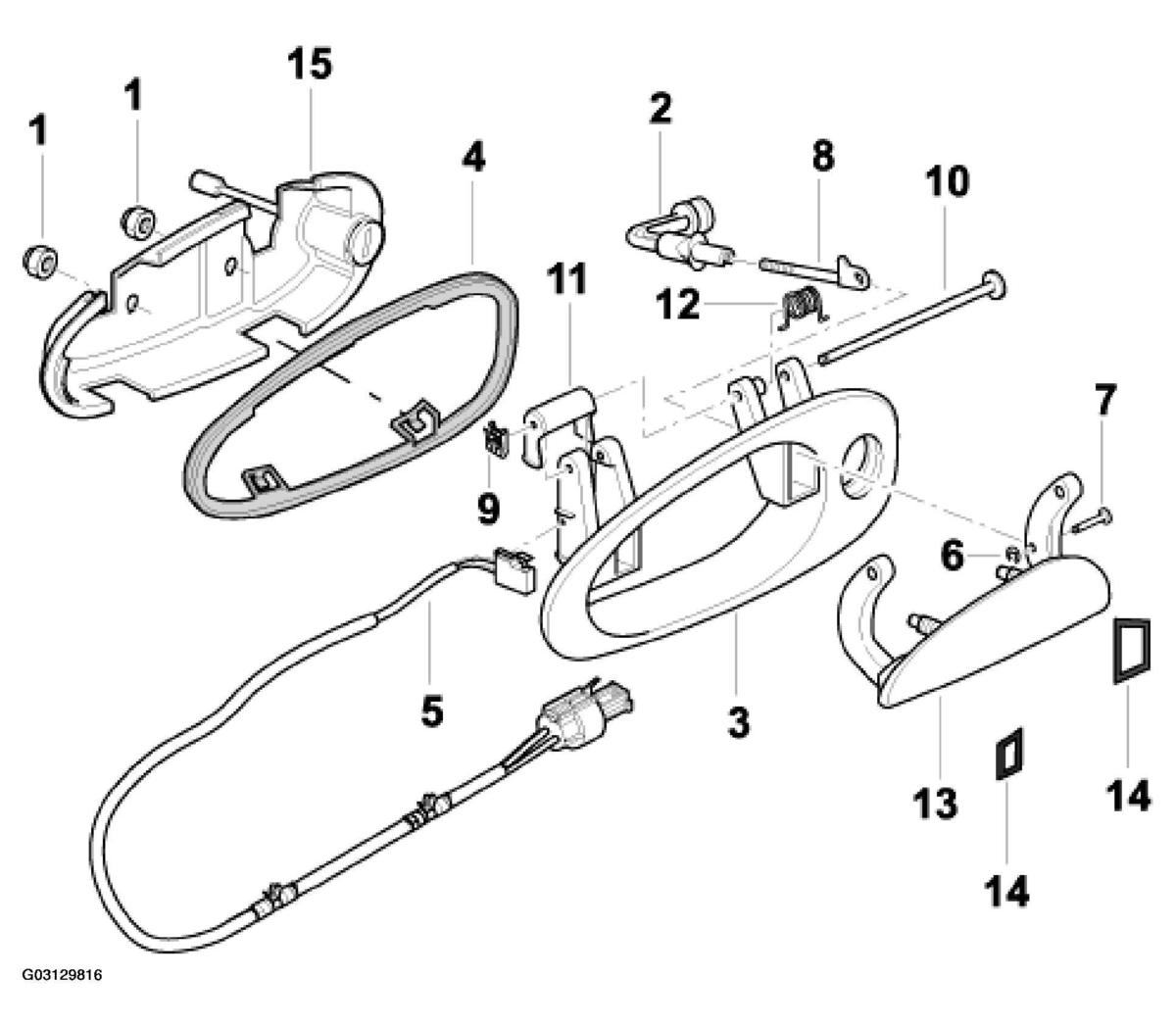

Fig 2: Exploded View Of Exterior Door Handle Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DOOR HANDLE DISASSEMBLING & ASSEMBLING PROCEDURE (STEP 1)

No.	Designation	Qty.	Removal	Installation
			Refer to REMOVING AND INSTALLING DOOR TRIM PANEL .	Refer to REMOVING AND INSTALLING DOOR TRIM PANEL .
1	M6 collar nut	2	Undo.	Tightening torque: 10 Nm (7.5ftlb.)

CAUTION: There is a danger of injury if fingers or hands are trapped by the door window when the comfort function is triggered: lower and raise door window!

When carrying out assembly work in the area of the connection piece -2-, the bottom part of the door handle -15- and the door lock, the fuse No. 1 in row D must be removed! See Fig 2 .

DOOR HANDLE DISASSEMBLING & ASSEMBLING PROCEDURE (STEPS 2-15)

No.	Designation	Qty.	Removal	Installation
2	Connection piece	1	See DISASSEMBLING DOOR .	See ASSEMBLING DOOR .
3	Handle liner	1	Pull out handle liner downward at the angle.
4	Base	1	Unclip.	Clip in.
5	Microswitch	1	Unclip.	Clip in.
6	Circlip	1	Press out.	Press in.
7	Pin	1
8	Actuating shaft	1	Pull pin -7-13- . See Fig 2 .	Position actuating shaft on the handle -No. 13-7-6- . See Fig 2 .
9	S retainer	1
10	Pin rod	1		Replace.
11	Eccentric	1
12	Return spring	1
13	Handle	1	Pull pin rod -10-3- . See Fig 2 .	Position return spring -12-11-3-10-9 . See Fig 2 .
14	Buffer	2	Pull off.	Replace
15	Door handle bottom part	1
